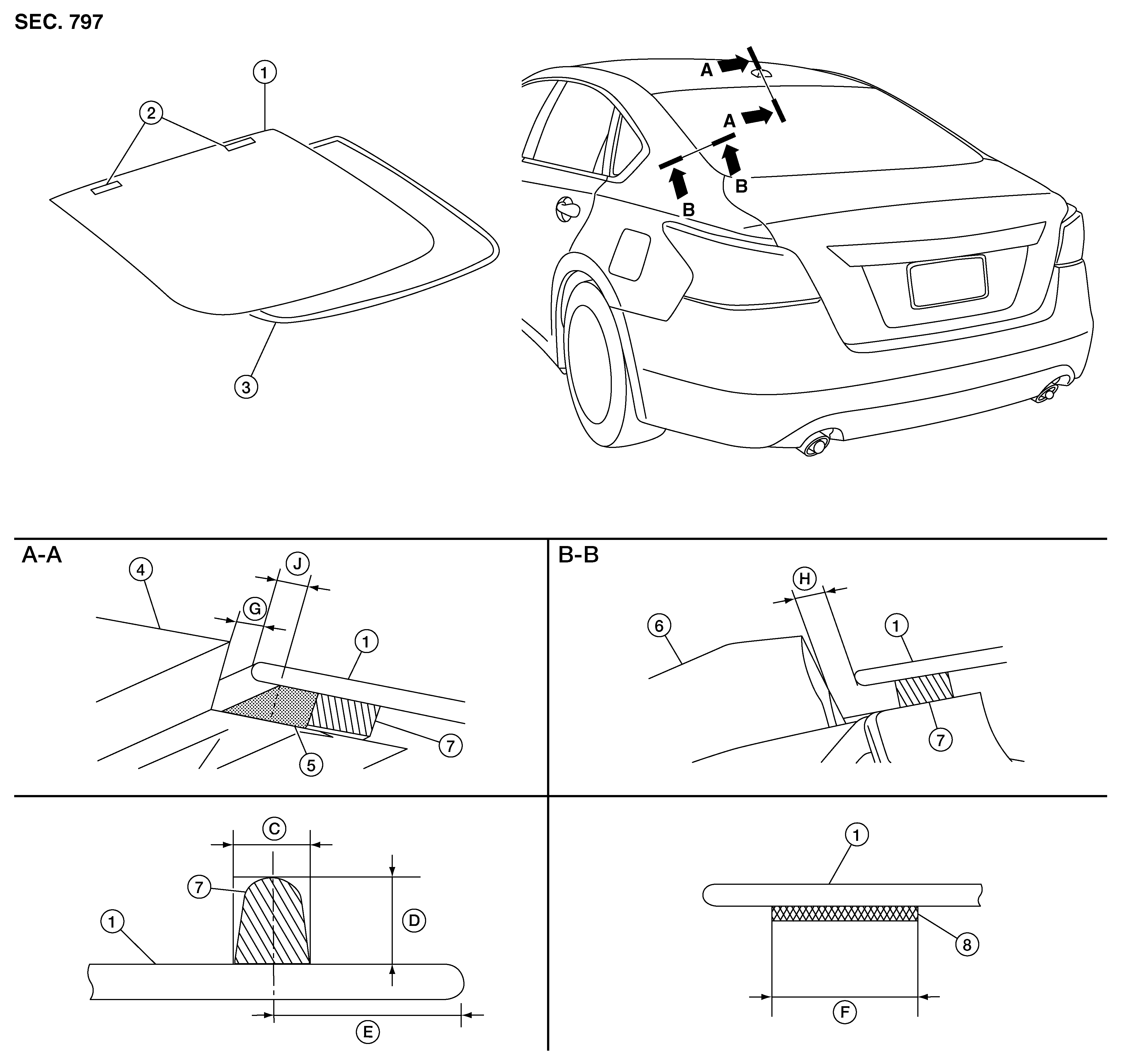

1.
Rear window glass
2.
Spacer
3.
Seal
4.
Roof panel
5.
Rubber dam
6.
Body side outer
7.
Adhesive
8.
Primer
C.
7.0 +2 mm (0.3 +0.1 in)
D.
12.0 +2 mm (0.5+ 0.1 in)
E.
8.5 mm (0.33 in)
F.
8.0 mm (0.3 in)
G.
3.0 ±1.5 mm (0.1 ±0.06 in)
H.
3.0 ±2.1 mm (0.1 ±0.08 in)
J.
5.0 mm (0.2 in)
