Exploded View With Torque Specifications

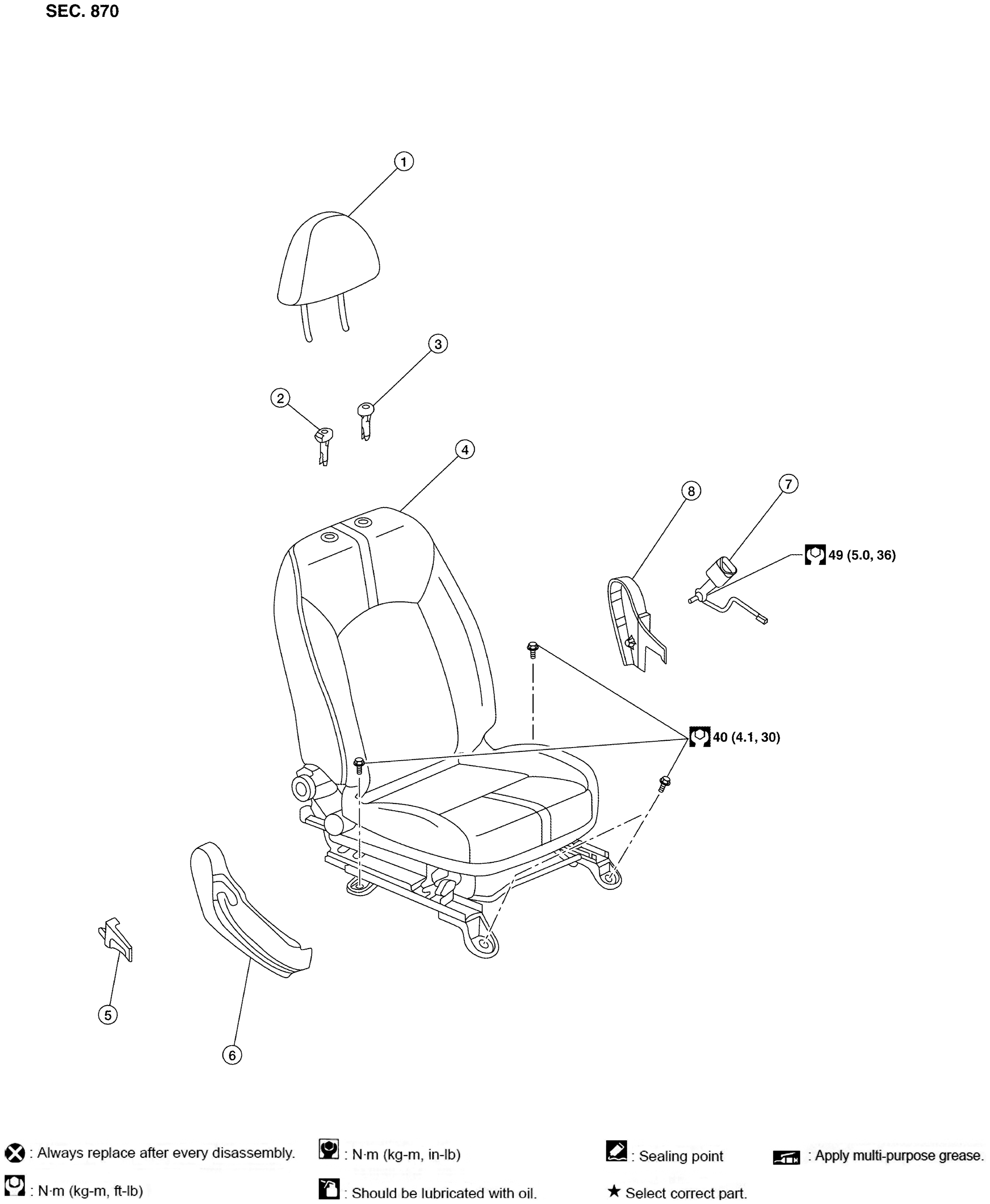

WITH REMOVAL HEADREST

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Headrest	2.	Headrest holder (free)	3.	Headrest holder (locked)
4.	Seat assembly	5.	Recline lever	6.	Seat cushion outer finisher (RH)
7.	Seat belt buckle	8.	Seat cushion outer finisher (LH)

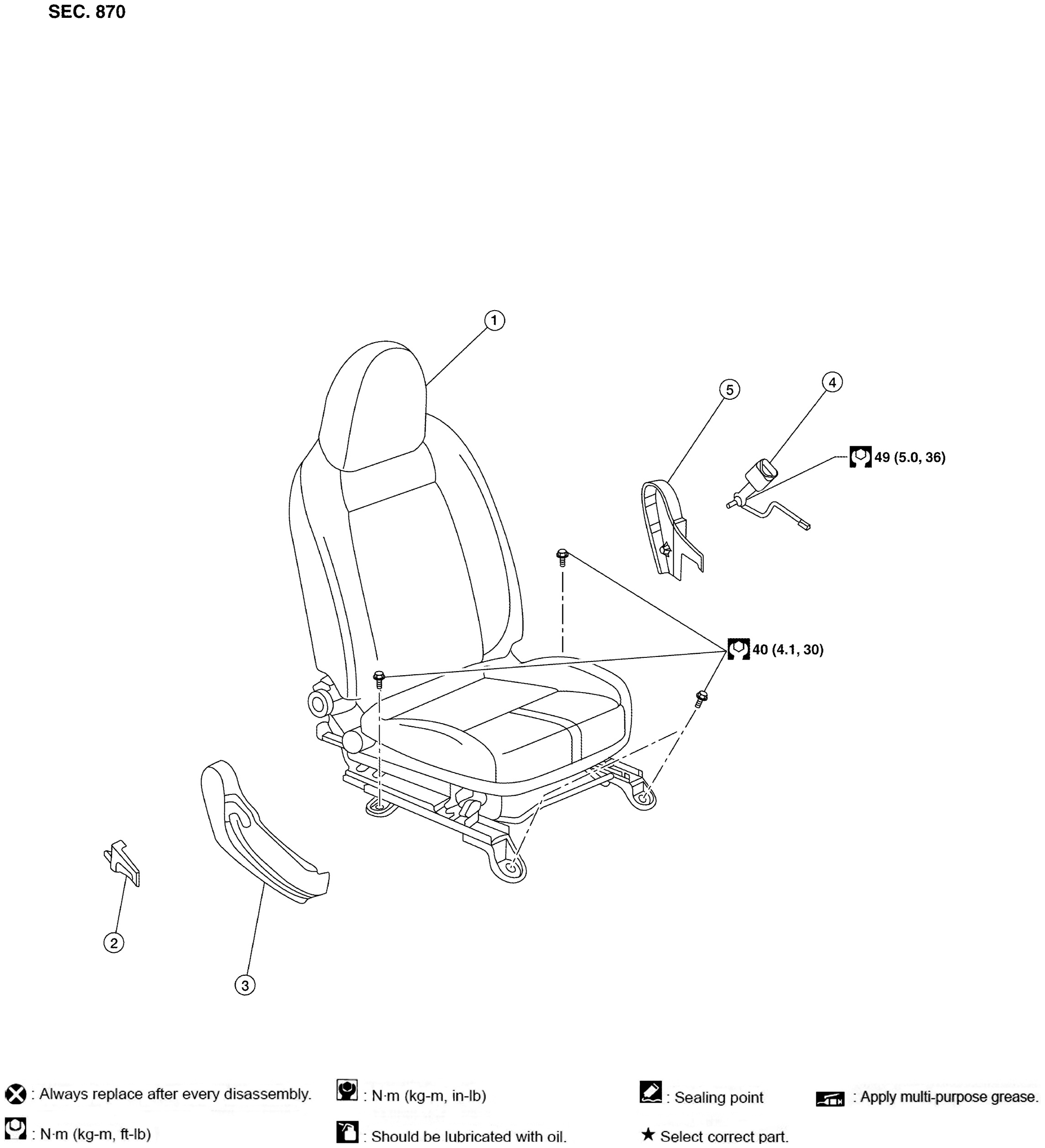

WITHOUT REMOVAL HEADREST

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat assembly	2.	Recline lever	3.	Seat cushion outer finisher (RH)
4.	Seat belt buckle	5.	Seat cushion outer finisher (LH)
