Exploded View With Torque Specifications
WITH REMOVAL ARMREST
| 1. | Armrest (if equipped) | 2. | Seat cushion outer finisher (RH) | 3. | Seat belt buckle |
| 4. | Seat cushion outer finisher (LH) | 5. | Lift lever | 6. | Lift lever cap |
| 7. | Recline lever | 8. | Headrest holder (locked) | 9. | Headrest holder (free) |
| 10. | Headrest | 11. | Seat assembly |

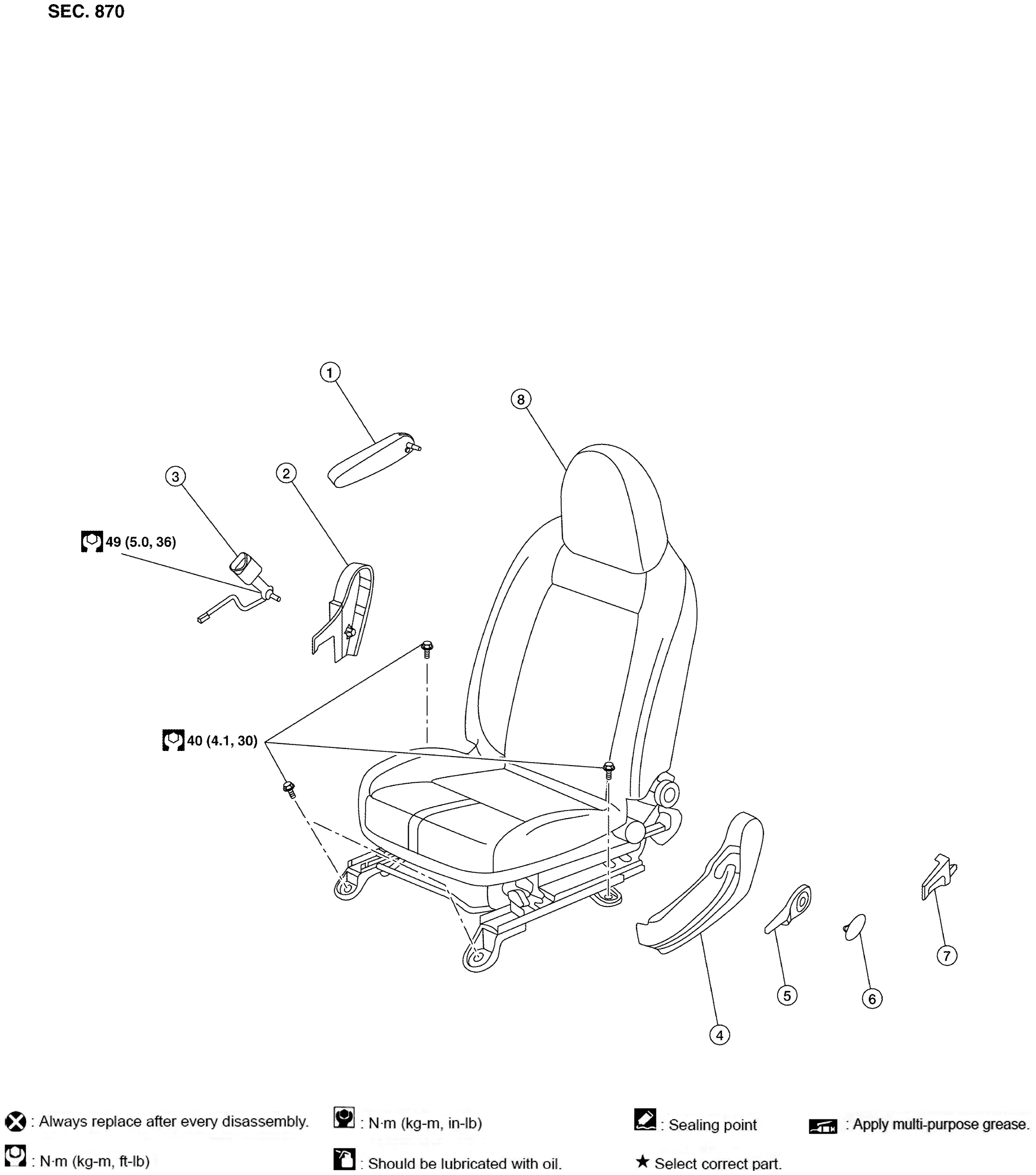

WITHOUT REMOVAL ARMREST
| 1. | Armrest (if equipped) | 2. | Seat cushion outer finisher (RH) | 3. | Seat belt buckle |
| 4. | Seat cushion outer finisher (LH) | 5. | Lift lever | 6. | Lift lever cap |
| 7. | Recline lever | 8. | Seat assembly |
