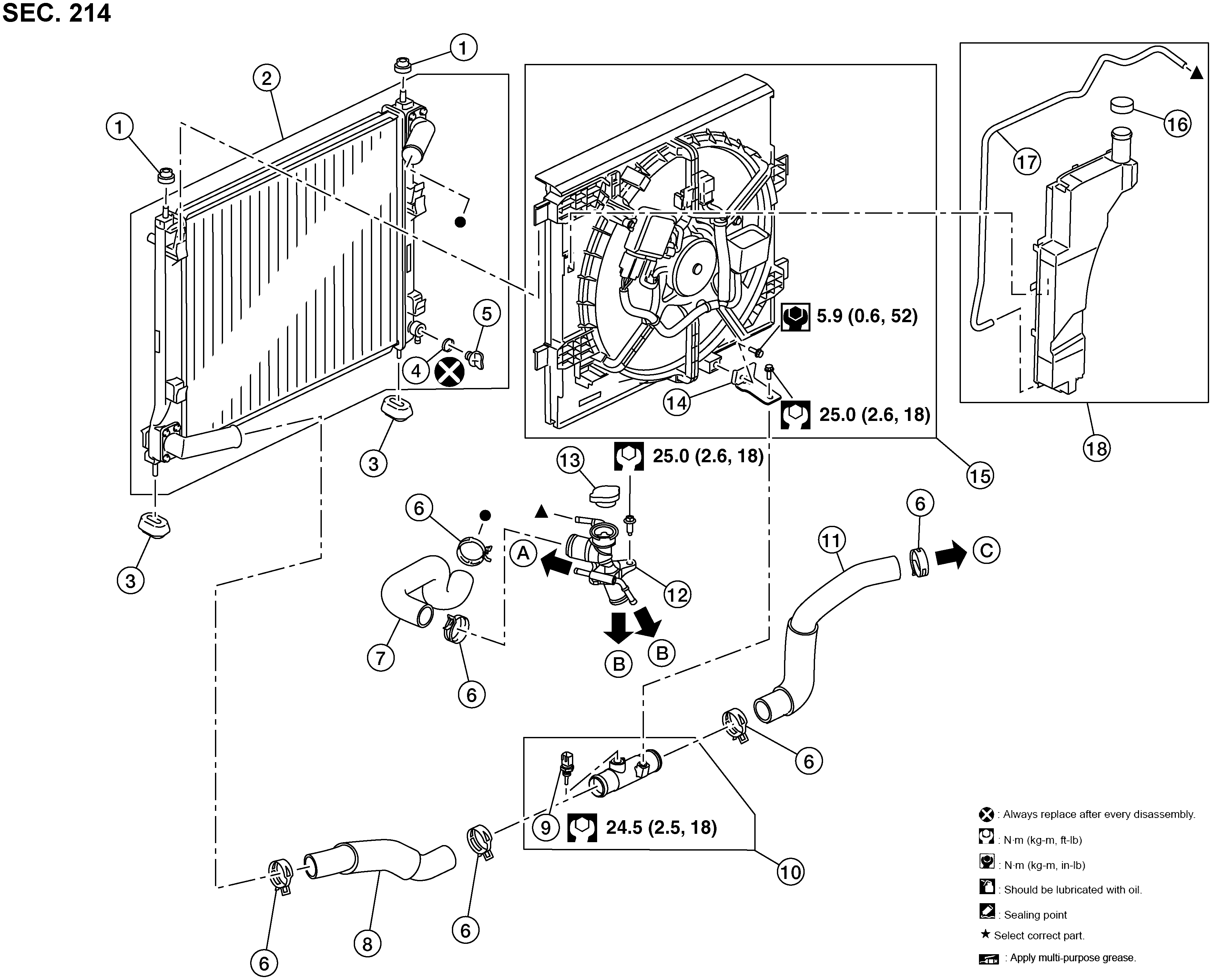

Exploded View
WARNING: This page is about a different variant/trim than selected.
| 1. | Mounting rubber (upper) | 2. | Radiator assembly | 3. | Mounting rubber (lower) |
| 4. | O-ring | 5. | Drain plug | 6. | Hose clamp |
| 7. | Radiator hose (upper) | 8. | Radiator hose (lower) (LH) | 9. | Engine coolant temperature sensor 2 |
| 10. | Radiator hose pipe | 11. | Radiator hose (lower) (RH) | 12. | Water outlet adapter |
| 13. | Radiator cap | 14. | Bracket | 15. | Cooling fan assembly |
| 16. | Reservoir tank cap | 17. | Reservoir tank hose | 18. | Reservoir tank assembly |
| A. | To electric throttle control actuator | B. | To multi-way control valve | C. | To water inlet |
