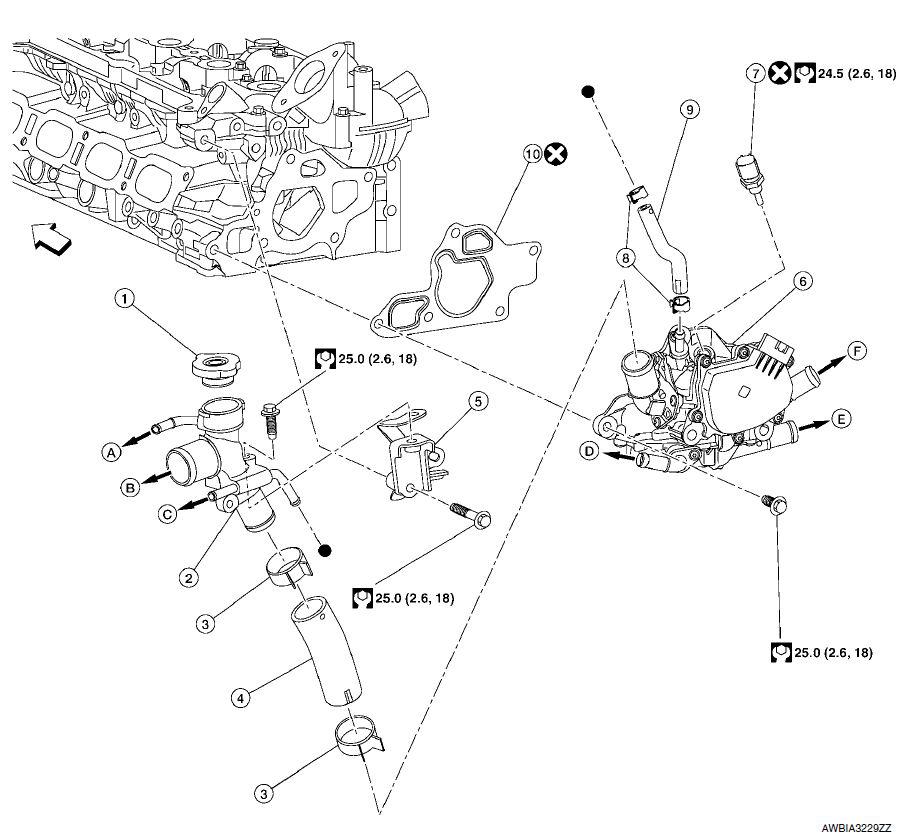

Exploded View
WARNING: This page is about a different variant/trim than selected.
| 1. | Radiator cap | 2. | Water outlet adapter | 3. | Hose clamp |
| 4. | Water outlet hose | 5. | Bracket | 6. | Multi-way control valve |
| 7. | Engine coolant temperature sensor 1 | 8. | Hose clamp | 9. | Water hose |
| 10. | Multi-way control valve gasket | A. | To reservoir tank | B. | To radiator |
| C. | To electric throttle control actuator | D. | To oil cooler | E. | To EGR cooler |
| F. | To heater core | Engine front |
