Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

FOR CALIFORNIA

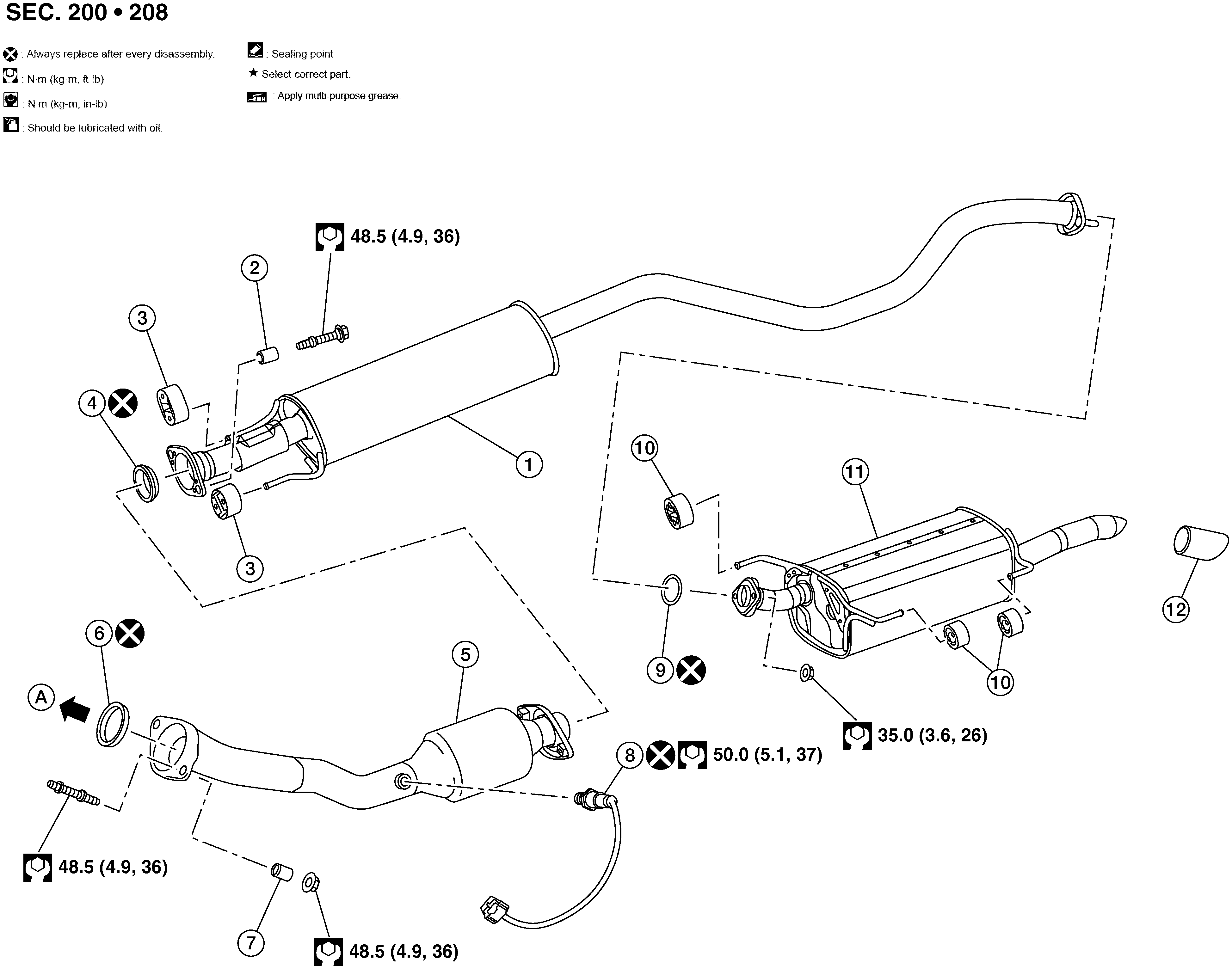

Fig 1: Exploded View Of Exhaust System With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Sub muffler	2.	Spring	3.	Mounting rubber
4.	Seal bearing	5.	Exhaust front tube	6.	Seal bearing
7.	Spring	8.	Heated oxygen sensor 2	9.	Ring gasket
10.	Mounting rubber	11.	Main muffler	12.	Exhaust finisher (if equipped)
A.	To exhaust manifold

CAUTION:

Do not remove the heated oxygen sensor 2 from the front exhaust tube unless necessary for replacement of the heated oxygen sensor 2. If the heated oxygen sensor 2 is removed from the front exhaust tube, it must be replaced with a new one.

NOTE:

Heated oxygen sensor 2 replacement or removal from the front exhaust tube is not necessary when removing or repositioning the front exhaust tube. Disconnect the harness connector from the heated oxygen sensor 2 and remove or reposition the front exhaust tube and the heated oxygen sensor 2 as an assembly.

EXCEPT FOR CALIFORNIA

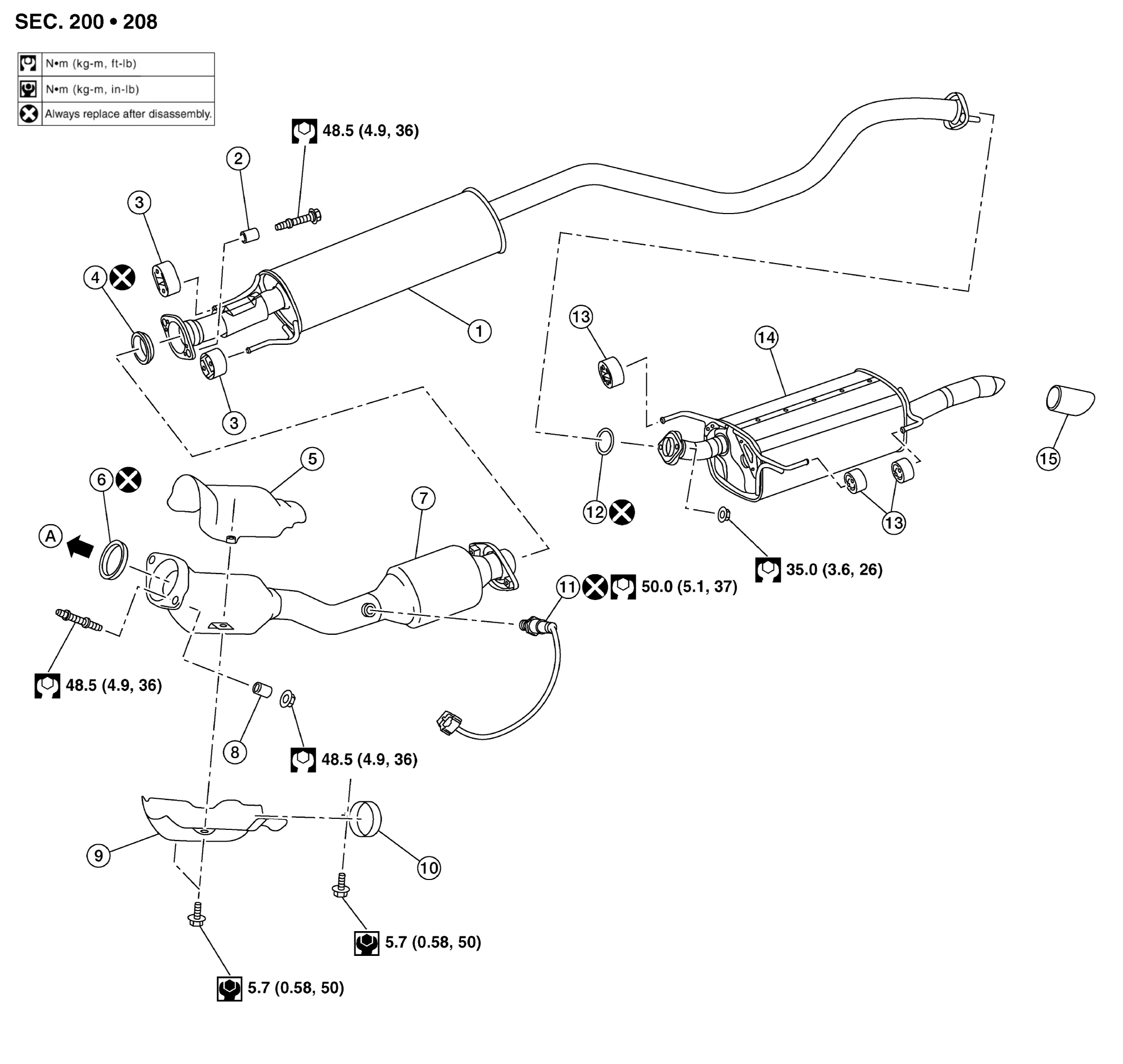

Fig 2: Exploded View Of Exhaust System With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Sub muffler	2.	Spring	3.	Mounting rubber
4.	Seal bearing	5.	Catalyst shroud (upper)	6.	Seal bearing
7.	Exhaust front tube	8.	Spring	9.	Catalyst shroud (lower)
10.	Clamp	11.	Heated oxygen sensor 2	12.	Ring gasket
13.	Mounting rubber	14.	Main muffler	15.	Exhaust finisher (if equipped)
A.	To exhaust manifold

CAUTION:

NOTE:
