System Display

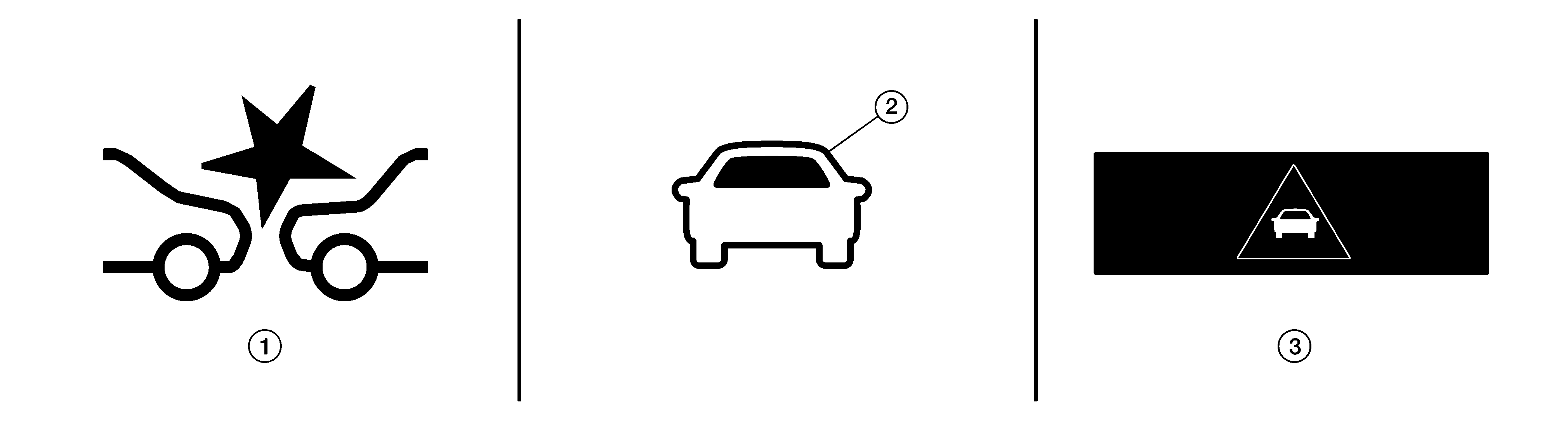

GNSALOIA0281ZZ-281Courtesy of NISSAN NORTH AMERICA, INC.
No. Switch name Description
1. FEB warning lamp
  • FEB warning lamp indicates that an abnormal condition is present in FEB system.
  • When the FEB system turns OFF, the FEB warning lamp will illuminate.
2. Vehicle ahead detection indicator
  • Indicates whether it detects a vehicle ahead
  • Blinks when approaching vehicle ahead
3. FEB warning Displays immediately before the harder brake operates
