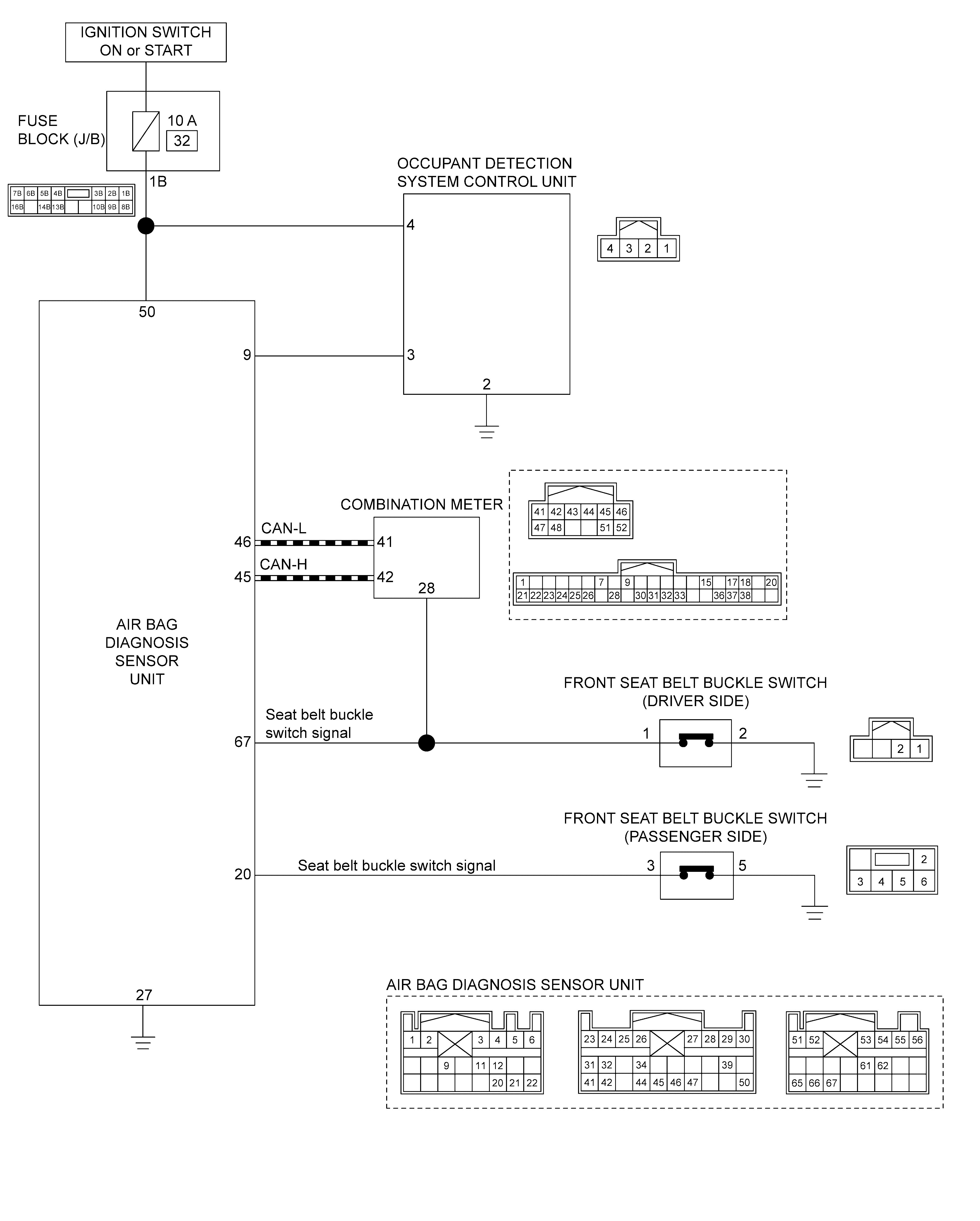

Home >> Nissan-Datsun >> 2017 >> Rogue Sport S, AWD >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt Control System >> System Description >> System >> Seat Belt Warning Lamp Control System >> Circuit Diagram
