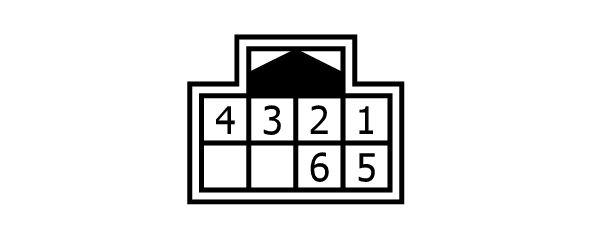

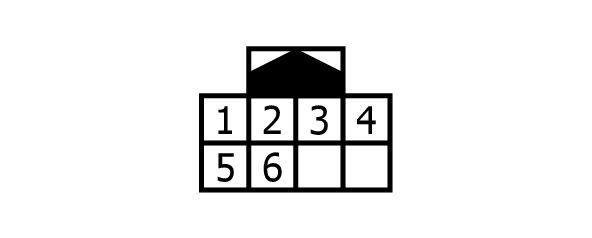

Meter Control Switch Connector End View (M54)
Connector Types: TH08MW-NH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | P | - [Without automatic drive positioner] |
| 1 | R/L | - [With automatic drive positioner] |
| 2 | B/R | - [With automatic drive positioner] |
| 2 | GR | - [Without automatic drive positioner] |
| 3 | G | - |
| 4 | BR | - [With automatic drive positioner] |
| 4 | R | - [Without automatic drive positioner] |
| 5 | G | - [Without automatic drive positioner] |
| 5 | SB | - [With automatic drive positioner] |
| 6 | P | - |
