BCM (Body Control Module) Connector End View (M122)

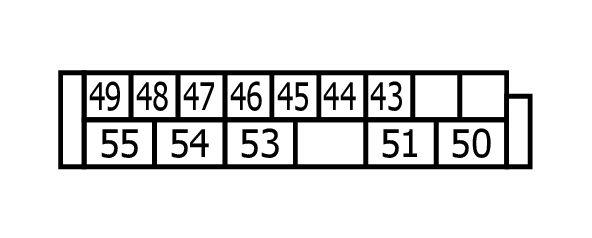

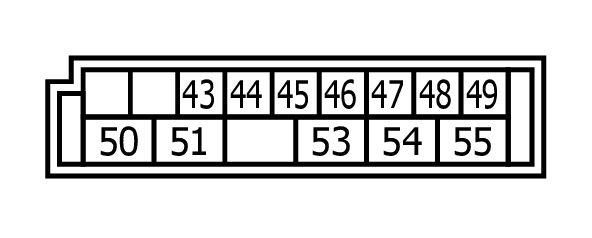

Connector Types: FEA09FB-FHA6-SA
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 43 | P | BK DOOR SW |
| 44 | GR | REAR WIPER STOP POSITION |
| 45 | W | PASS DOOR SW |
| 46 | R | SL DOOR RH SW |
| 47 | G | DR DOOR SW |
| 48 | BE | SL DOOR LH SW |
| 49 | B | LUGGAGE LAMP CONT |
| 50 | V | SELECT UNLK RELAY CONT |
| 51 | G | BACK DOOR REQ SW |
| 53 | BR | BK DOOR OPEN |
| 54 | R | REAR WIPER OUTPUT |
| 55 | G | SL DOOR LH UNLK CONT |
