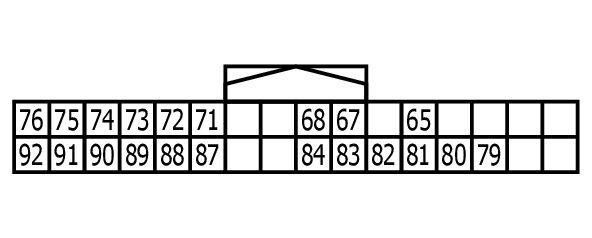

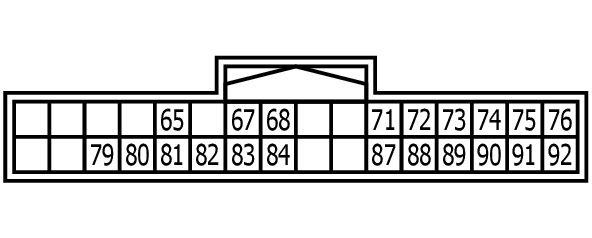

Av Control Unit Connector End View (M193)
Connector Types: TH32FW-NH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 65 | R | PARKING BRAKE SIGNAL |
| 67 | W | COMPOSITE IMAGE SIGNAL GROUND (FOR FRONT DISPLAY UNIT) |
| 68 | R | COMPOSITE IMAGE SIGNAL (FOR FRONT DISPLAY UNIT) |
| 71 | SHIELD | SHIELD |
| 72 | W | MICROPHONE VCC |
| 73 | B | COMMUNICATION SIGNAL (CONT->DISP) |
| 74 | P | CAN-L |
| 75 | LG | AV COMMUNICATION SIGNAL (L) |
| 76 | LG | AV COMMUNICATION SIGNAL (L) |
| 79 | BE | DIMMER SIGNAL |
| 80 | G | IGNITION SIGNAL |
| 81 | W | REVERSE SIGNAL |
| 82 | P | VEHICLE SPEED SIGNAL (8-PULSE) |
| 83 | SHIELD | SHIELD |
| 84 | B | COMPOSITE IMAGE SYNCHRONIZING SIGNAL |
| 87 | B | MICROPHONE SIGNAL |
| 88 | SHIELD | SHIELD |
| 89 | W | COMMUNICATION SIGNAL (DISP->CONT) |
| 90 | L | CAN-H |
| 91 | SB | AV COMMUNICATION SIGNAL (H) |
| 92 | V | AV COMMUNICATION SIGNAL (H) |
