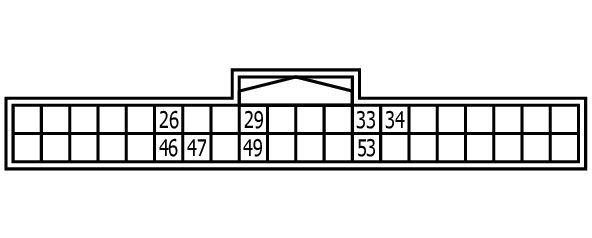

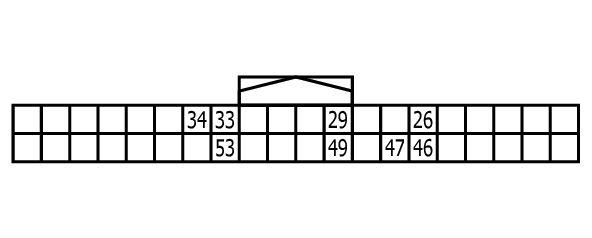

Av Control Unit Connector End View (M192)
Connector Types: TH40FW-NH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 26 | BR | AUX IMAGE SIGNAL |
| 29 | W | DISK EJECT SIGNAL |
| 33 | B | COMPOSITE IMAGE SIGNAL GROUND (FOR REAR DISPLAY UNIT) |
| 34 | W | COMPOSITE IMAGE SIGNAL (FOR REAR DISPLAY UNIT) |
| 46 | Y | AUX IMAGE SIGNAL GROUND |
| 47 | SHIELD | SHIELD |
| 49 | R | SWITCH GROUND |
| 53 | SHIELD | SHIELD |
