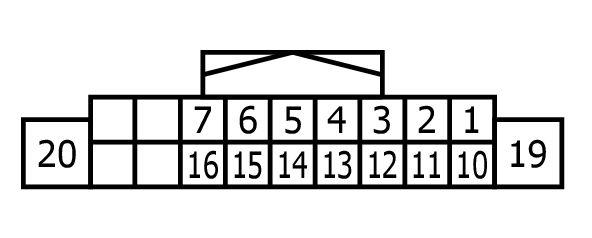

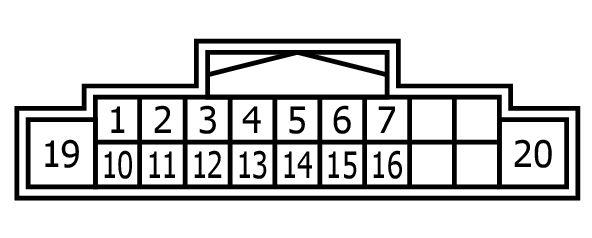

Av Control Unit Connector End View (M191)
Connector Types: NH18FW-CS2
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | LG | AMP. ON SIGNAL |
| 2 | R | SOUND SIGNAL FRONT LH (+) |
| 3 | G | SOUND SIGNAL FRONT LH (-) |
| 4 | B | SOUND SIGNAL REAR LH (+) |
| 5 | W | SOUND SIGNAL REAR LH (-) |
| 6 | BE | STEERING SWITCH SIGNAL A |
| 7 | O | ACC POWER SUPPLY |
| 10 | GR | SHIELD |
| 11 | W | SOUND SIGNAL FRONT RH (+) |
| 12 | B | SOUND SIGNAL FRONT RH (-) |
| 13 | BR | SOUND SIGNAL REAR RH (+) |
| 14 | Y | SOUND SIGNAL REAR RH (-) |
| 15 | W | STEERING SWITCH GROUND |
| 16 | P | STEERING SWITCH SIGNAL B |
| 19 | SB | BATTERY POWER SUPPLY |
