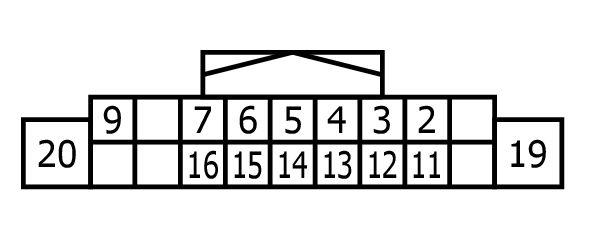

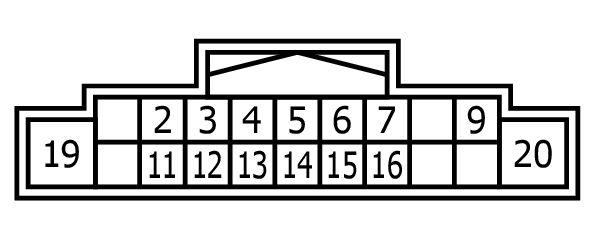

Av Control Unit Connector End View (M183)
Connector Types: NH18FW-CS2
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 2 | LG | SOUND SIGNAL FRONT SPEAKER LH (+) |
| 3 | Y | SOUND SIGNAL FRONT SPEAKER LH (-) |
| 4 | V | SOUND SIGNAL SLIDE DOOR SPEAKER LH (+) |
| 5 | L | SOUND SIGNAL SLIDE DOOR SPEAKER LH (-) |
| 6 | BE | STEERING SWITCH SIGNAL A |
| 7 | O | ACC POWER SUPPLY |
| 9 | BE | DIMMER SIGNAL |
| 11 | L | SOUND SIGNAL FRONT SPEAKER RH (+) |
| 12 | B | SOUND SIGNAL FRONT SPEAKER RH (-) |
| 13 | BR | SOUND SIGNAL SLIDE DOOR SPEAKER RH (+) |
| 14 | SB | SOUND SIGNAL SLIDE DOOR SPEAKER RH (-) |
| 15 | W | STEERING SWITCH GROUND |
| 16 | P | STEERING SWITCH SIGNAL B |
| 19 | SB | BATTERY POWER SUPPLY |
| 20 | B | GROUND |
