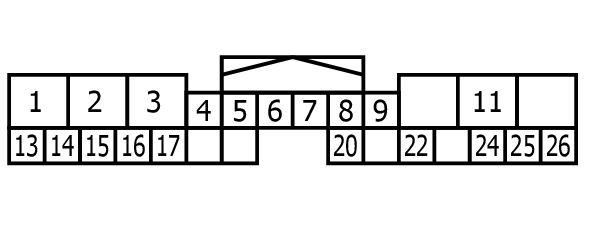

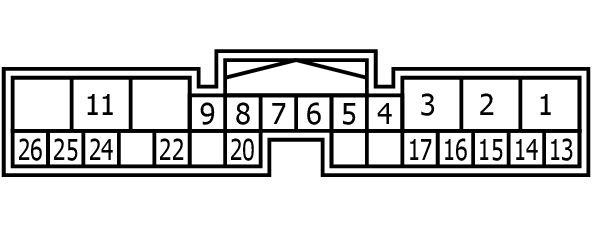

Automatic Back Door Control Module Connector End View (B8)
Connector Types: TH20FW-TB6
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | SB | +B |
| 2 | BR | LATCH MTR CLOSE |
| 3 | L | LATCH MTR OPEN |
| 4 | P | INSIDE CLOSE SW |
| 5 | W | BUZZER |
| 6 | B | NAM-FUNC-FLG |
| 7 | P | +B |
| 8 | B | GROUND |
| 9 | GR | +B |
| 11 | B | GROUND |
| 13 | W | TOUCH SENS RH |
| 14 | P | TOUCH SENS GND |
| 15 | GR | TOUCH SENS LH |
| 16 | L | DRIVER SW |
| 17 | G | MAIN SW |
| 20 | R | CLOSE SW |
| 22 | W | HALF LATCH SW |
| 24 | G | OPEN SW |
| 25 | P | CAN-L |
| 26 | L | CAN-H |
