Around View Monitor Control Unit Connector End View (M253)

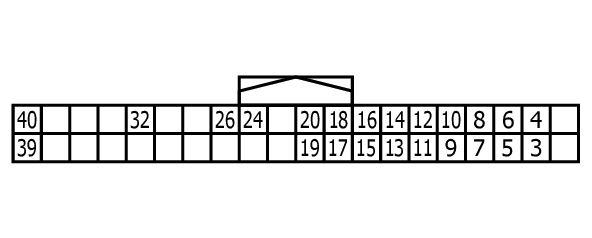

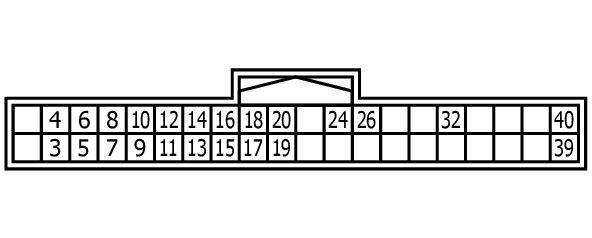

Connector Types: TH40FW-NH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 3 | SHIELD | SIELD |
| 4 | B | CAMERA IMAGE SIGNAL |
| 5 | B | FRONT CAMERA GROUND |
| 6 | R | FRONT CAMERA POWER SUPPLY |
| 7 | SHIELD | SIELD |
| 8 | W | FRONT CAMERA IMAGE SIGNAL |
| 9 | B | SIDE CAMERA PASSENGER SIDE GROUND |
| 10 | R | SIDE CAMERA PASSENGER SIDE POWER SUPPLY |
| 11 | SHIELD | SIELD |
| 12 | W | SIDE CAMERA PASSENGER SIDE IMAGE SIGNAL |
| 13 | B | SIDE CAMERA DRIVER SIDE GROUND |
| 14 | R | SIDE CAMERA DRIVER SIDE POWER SUPPLY |
| 15 | SHIELD | SIELD |
| 16 | W | SIDE CAMERA DRIVER SIDE IMAGE SIGNAL |
| 17 | B | REAR CAMERA GROUND |
| 18 | R | REAR CAMERA POWER SUPPLY |
| 19 | SHIELD | SIELD |
| 20 | W | REAR CAMERA IMAGE SIGNAL |
| 24 | P | CAN-L |
| 26 | L | CAN-H |
| 32 | LG | REVERSE SIGNAL |
| 39 | B | GROUND |
| 40 | G | IGNITION SIGNAL |
