Exploded View With Torque Specifications

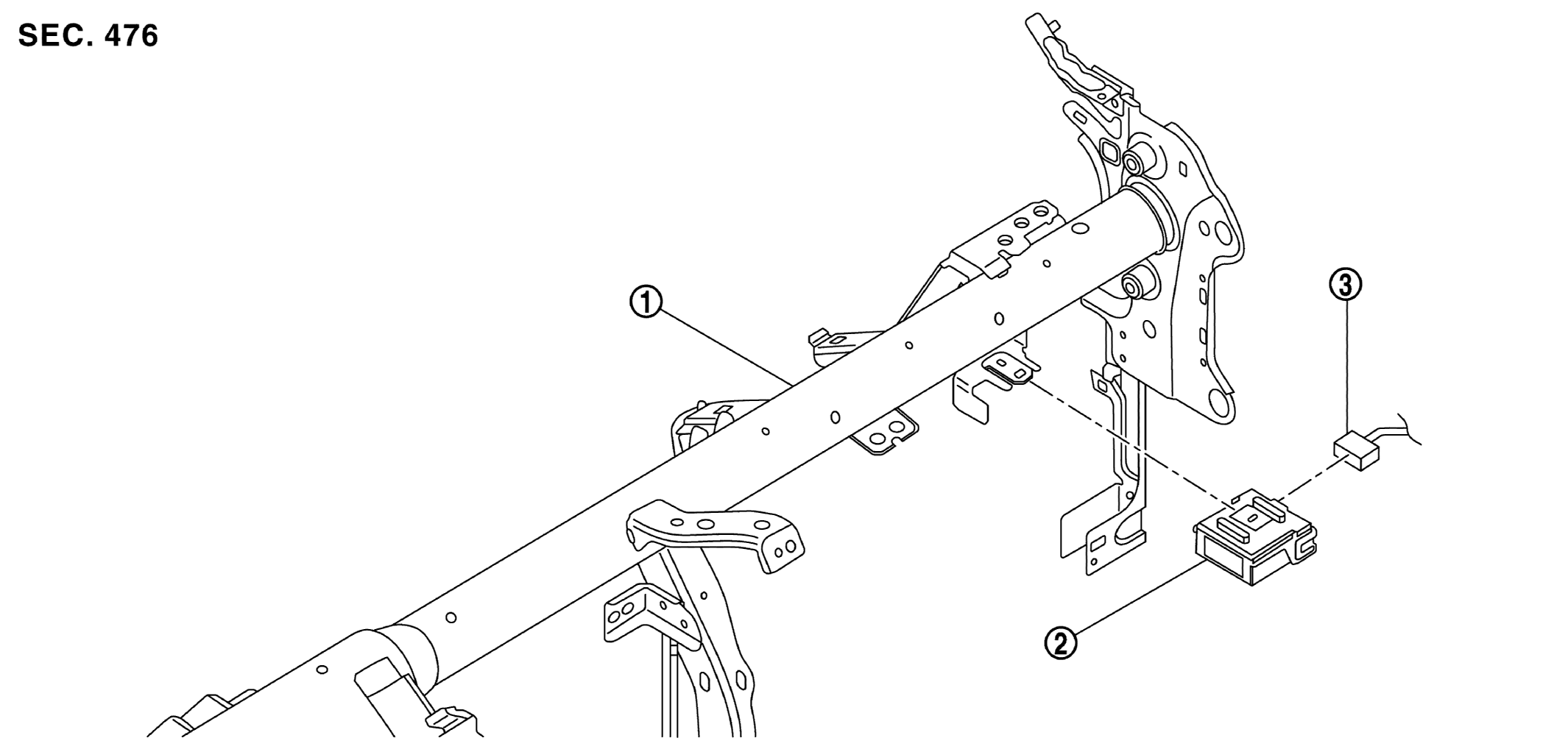

GNSJSOIA1471ZZ-471Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Steering member WHITE-2 Chassis control module WHITE-3 Chassis control module harness connector
