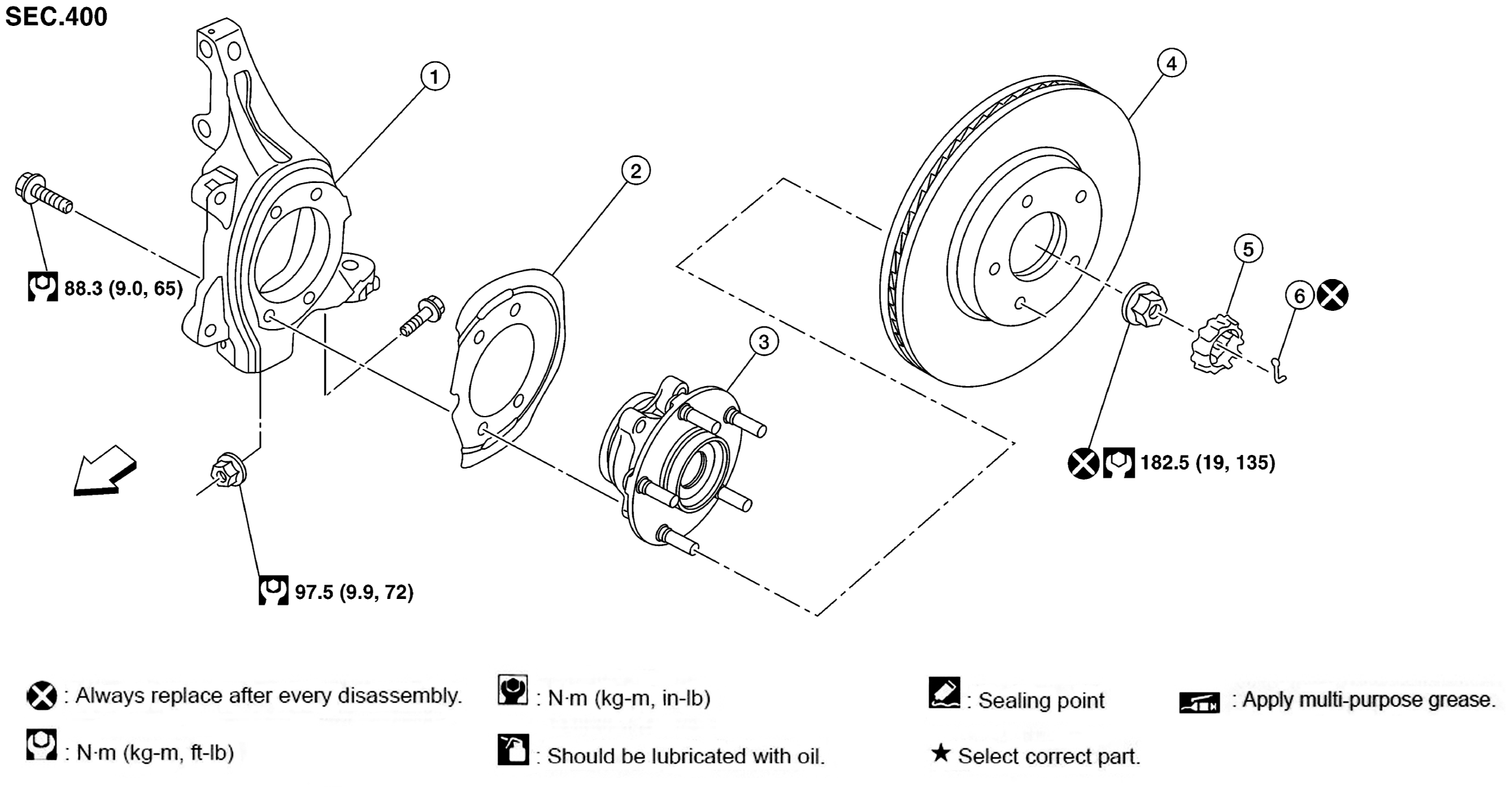

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering knuckle
2.
Splash guard
3.
Wheel hub and bearing
4.
Rotor
5.
Nut retainer
6.
Cotter pin
Front
Courtesy of NISSAN NORTH AMERICA, INC.
