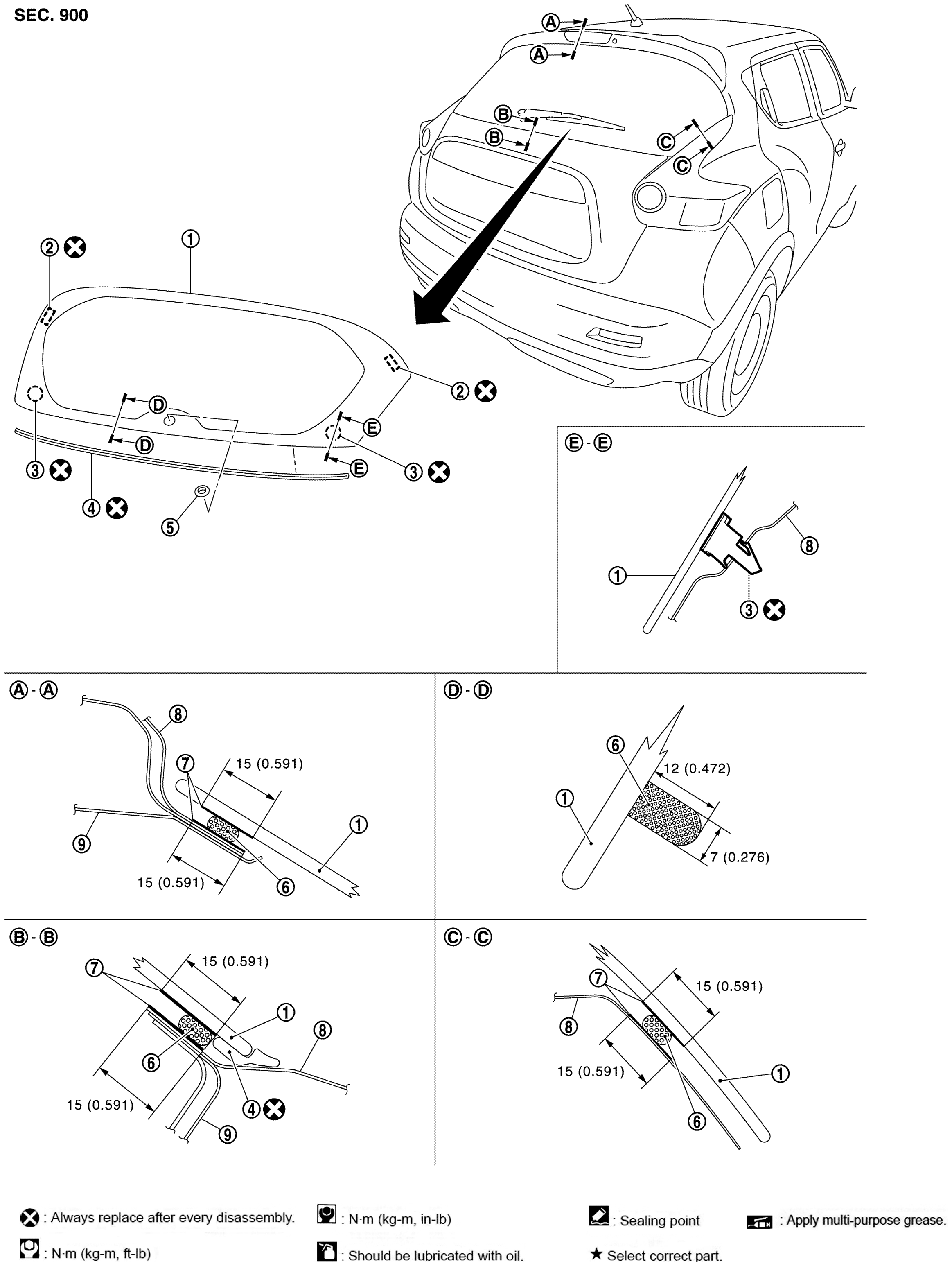

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Back door window glass	2.	Spacer	3.	Back door window glass holder
4.	Back door window glass molding	5.	Pivot seal	6.	Adhesive
7.	Primer	8.	Back door outer	9.	Back door inner
Unit	: mm (in)
	: Always replace after every disassembly.
