Function Description
WARNING: This page is about a different car, the 2017 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
- The Rear Cross Traffic Area (RCTA) system can help alert the driver of approaching vehicles or rear objects when the driver is backing out of a parking space.

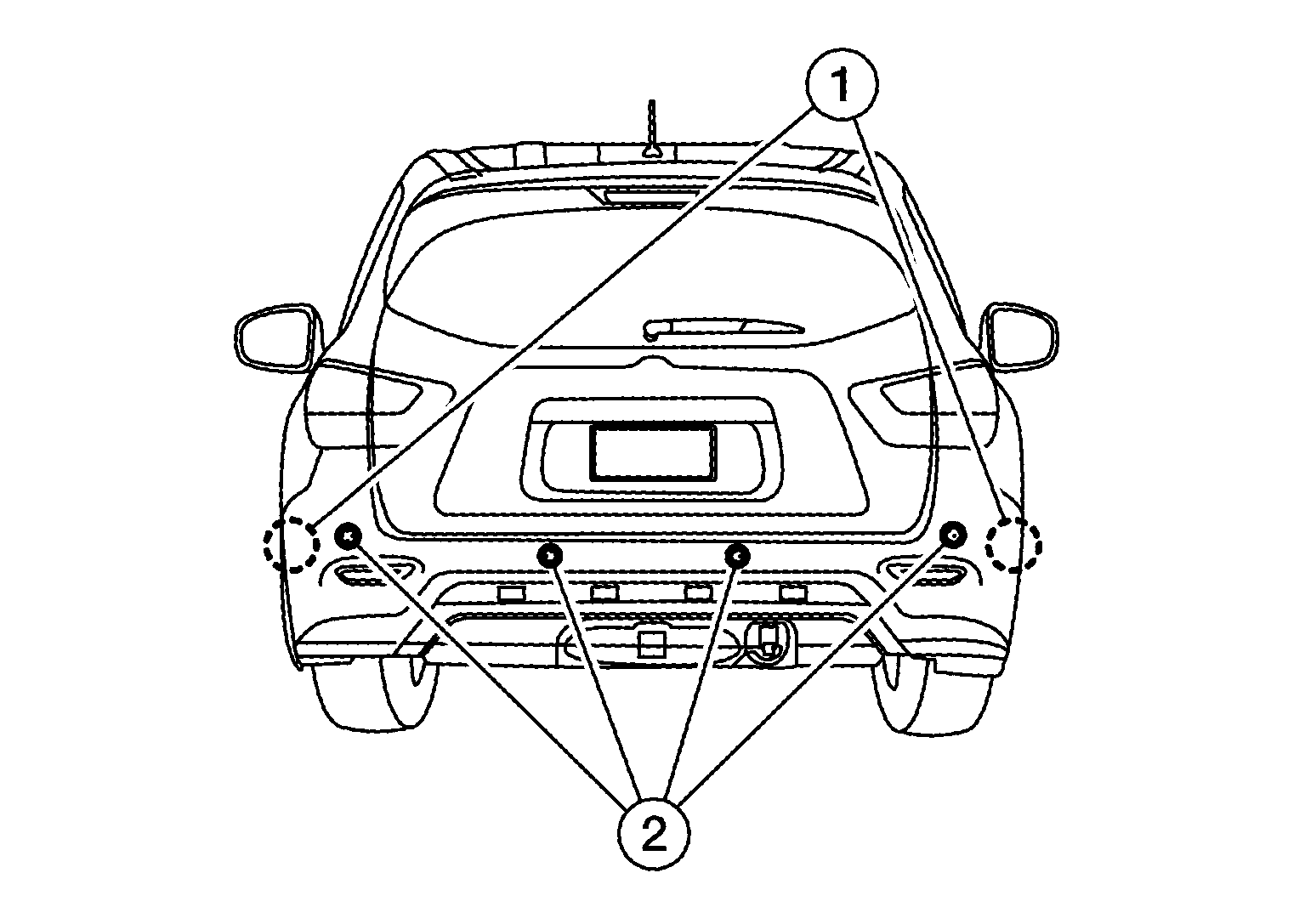

- The RCTA system comprise of two main detection systems. The side radars (1), and the four sonar sensors (2) mounted on the rear bumper cover as illustrated.
- The RCTA system operates at speeds below 5 MPH (8 km/h) whenever the vehicle is in reverse.
- The RCTA system uses the two side radars installed near the rear bumper to detect approaching vehicles and rear obstacles.
- The side radars can detect an approaching vehicle from up to 66 ft (20 m) away on either side of the vehicle.

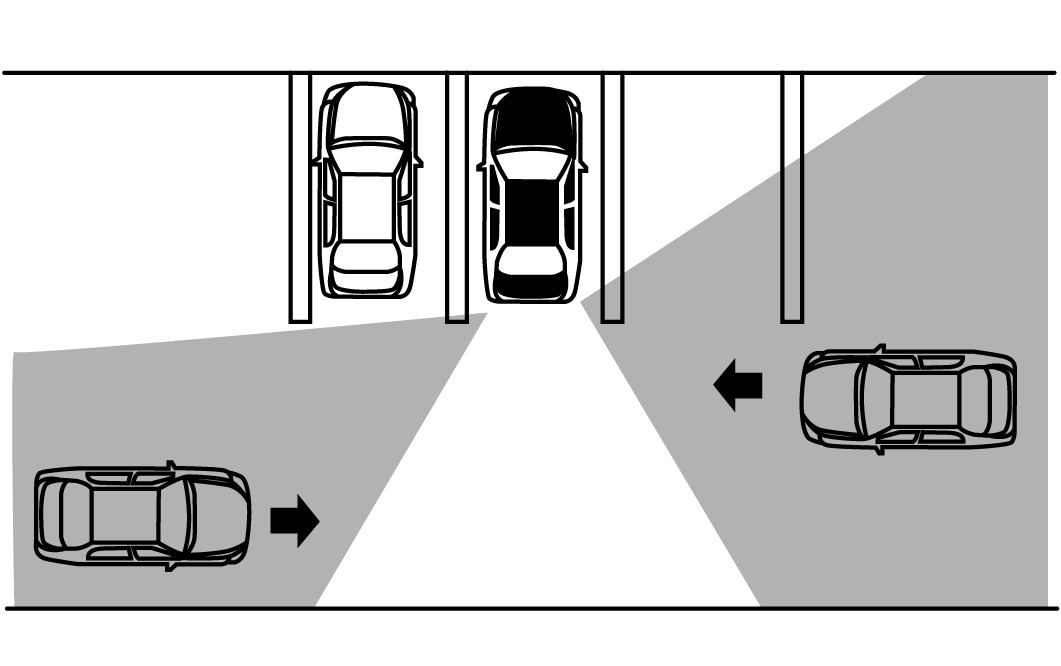

- The side radar can detect vehicles on either side of vehicle within the detection zone shown as illustrated.
- The sonar sensors can detect rear obstacles of up to approximately 4.9 feet (1.5 m).
- The RCTA system can help alert the driver of an approaching vehicle or objects behind the vehicle when the driver is backing out of a parking space.
- If the approaching vehicle is faster, the warning timer is faster. If the approaching vehicle is slower, the warning timer is slower.
- When the radar detects a vehicle approaching from the side, the system gives visual and audible warnings.
