Exploded View
WARNING: This page is about a different car, the 2017 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Drive shaft |
2. |
Nut retainer |
3. |
Cotter pin |

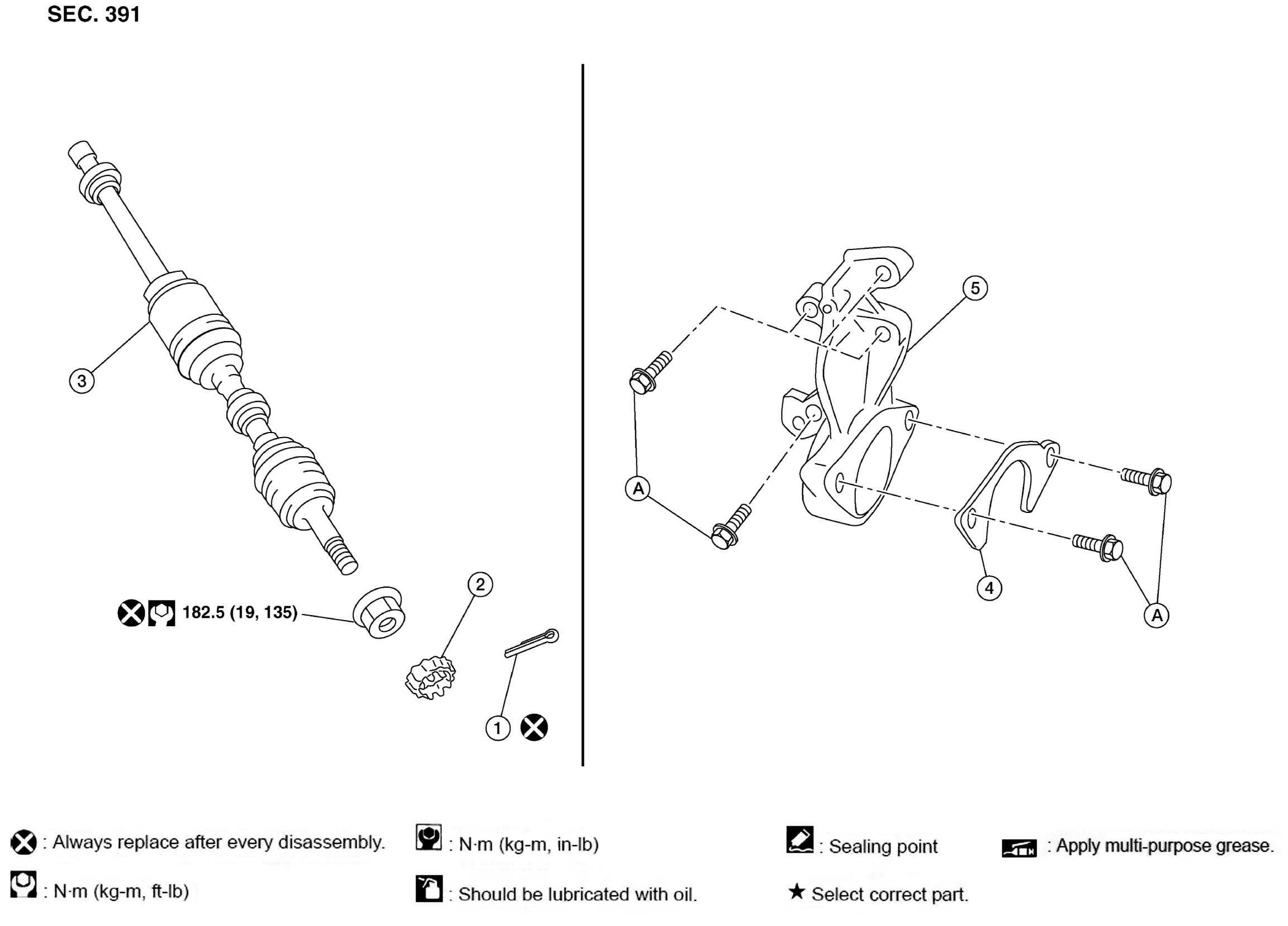

Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Cotter pin |
2. |
Nut retainer |
3. |
Drive shaft |
| 4. |
Bearing retainer |
5. |
Support bearing bracket |
A. |
Refer to INSTALLATION. |
