Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2017 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

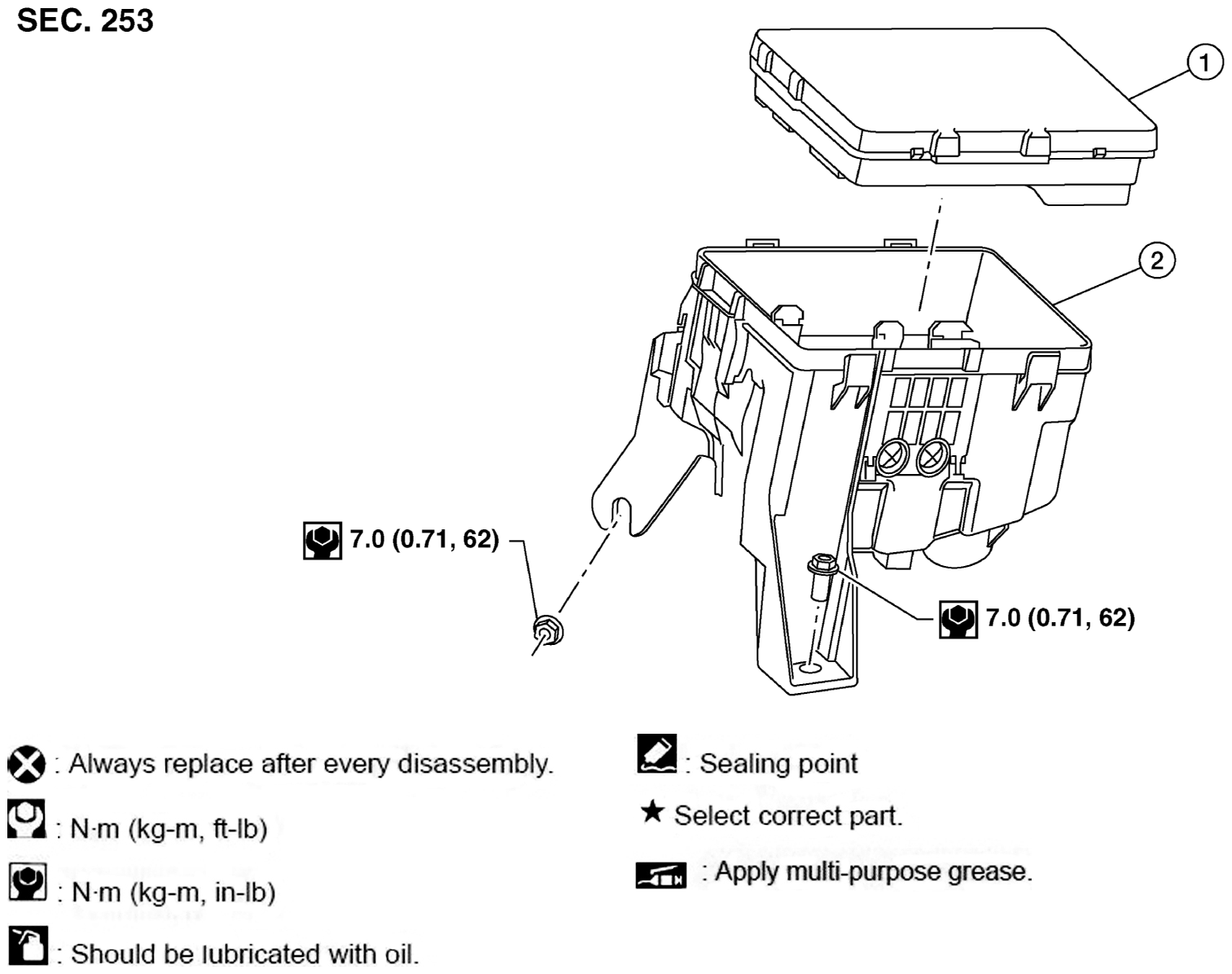

GNSALBIA1245ZZ-245Courtesy of NISSAN NORTH AMERICA, INC.
1. IPDM E/R 2. IPDM E/R Case
