Exploded View

WARNING: This page is about a different car, the 2017 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

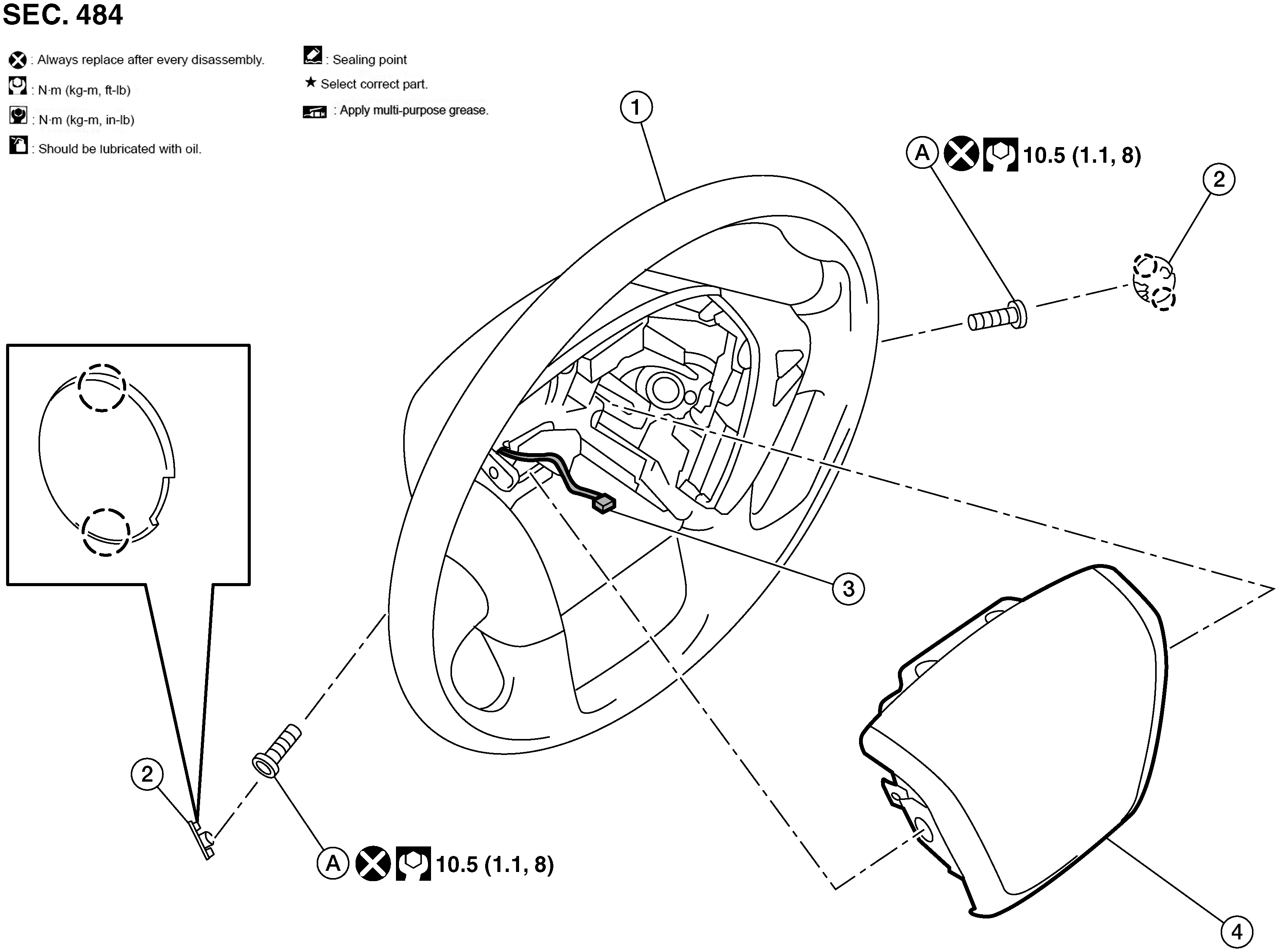

Fig 1: Driver Air Bag Module With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering wheel	2.	Side lid (LH/RH)	3.	Driver air bag module harness connector
4.	Driver air bag module	A.	Driver air bag module bolt		Pawl
