Disassembly And Assembly: Notes
WARNING: This page is about a different car, the 2016 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.

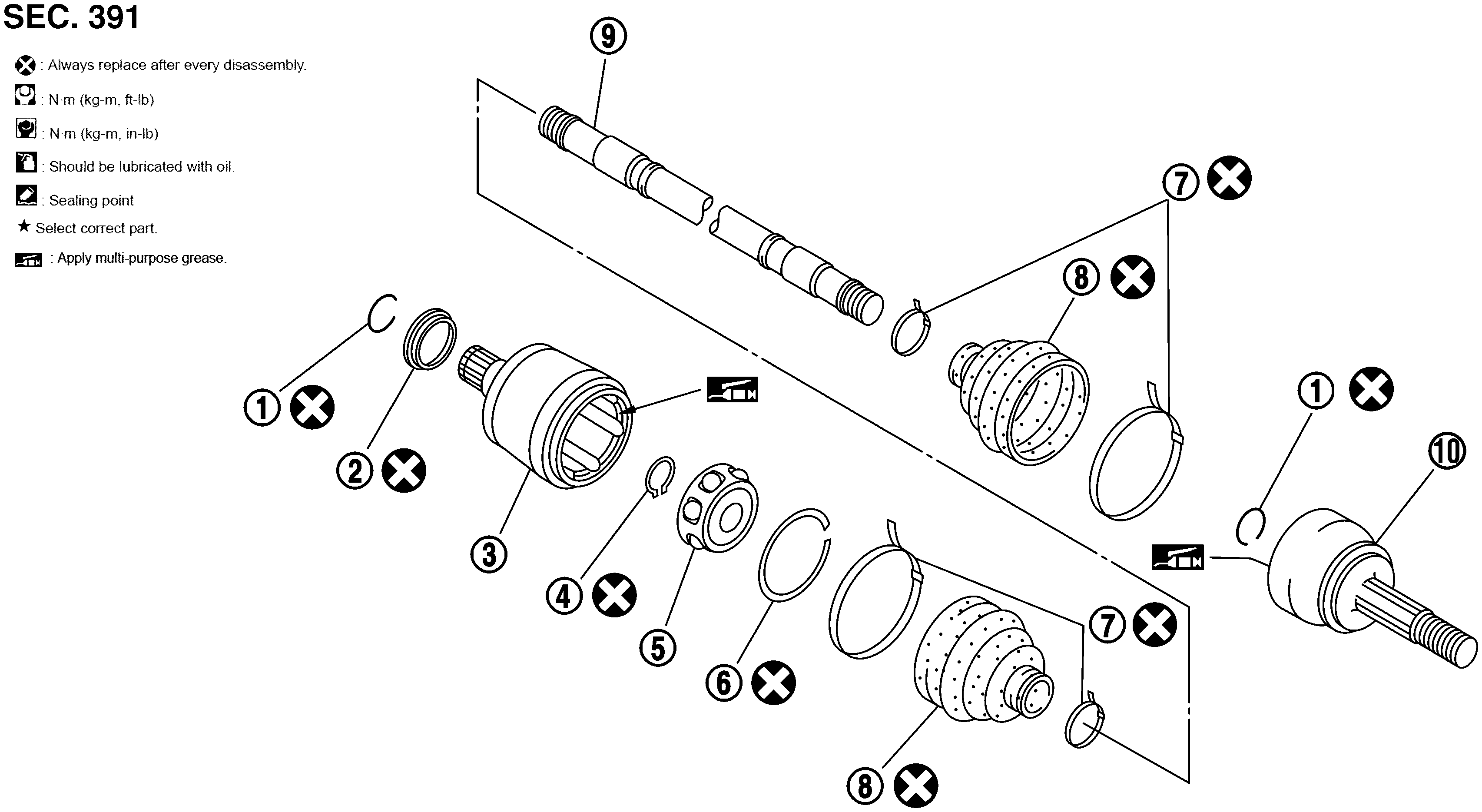

| 1. |
Circlip |
2. |
Dust cover |
3. |
Housing |
| 4. |
Snap ring |
5. |
Ball cage, steel ball and inner race assembly |
6. |
Stopper ring |
| 7. |
Boot band |
8. |
Boot |
9. |
Shaft |
| 10. |
Joint sub-assembly |
|
|
|
|
