Component Parts Location
WARNING: This page is about a different car, the 2016 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

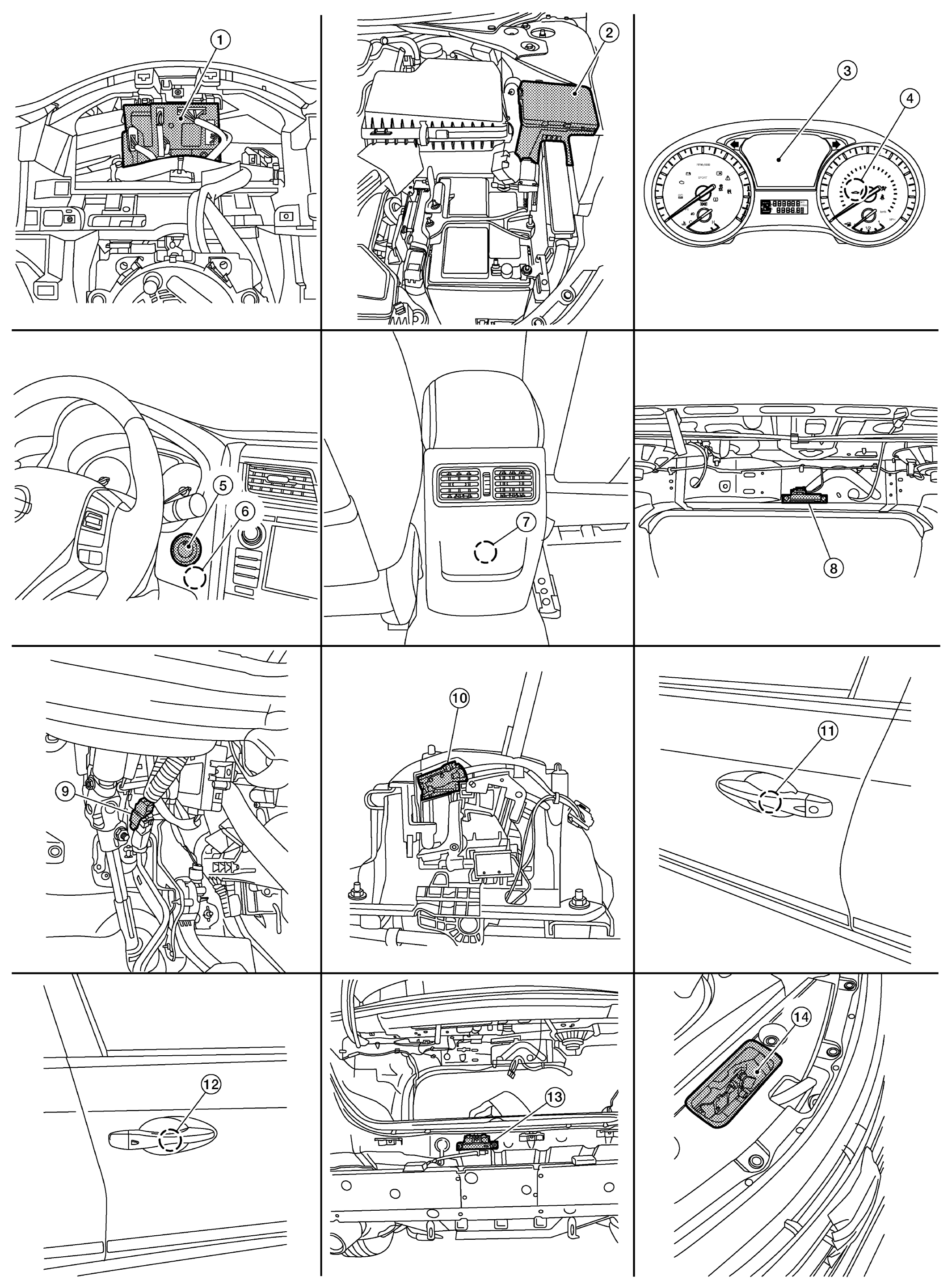

| 1. | BCM (view with combination meter removed) | 2. | IPDM E/R | 3. | Combination meter |
| 4. | Security indicator lamp | 5. | Push-button ignition switch | 6. | NATS antenna amp. |
| 7. | Inside key antenna (front console) | 8. | Inside key antenna (rear parcel shelf) (view with rear parcel shelf trim removed) | 9. | Stop lamp switch |
| 10. | CVT shift selector (park position switch) | 11. | Outside key antenna (drivers side) | 12. | Outside key antenna (passenger side) |

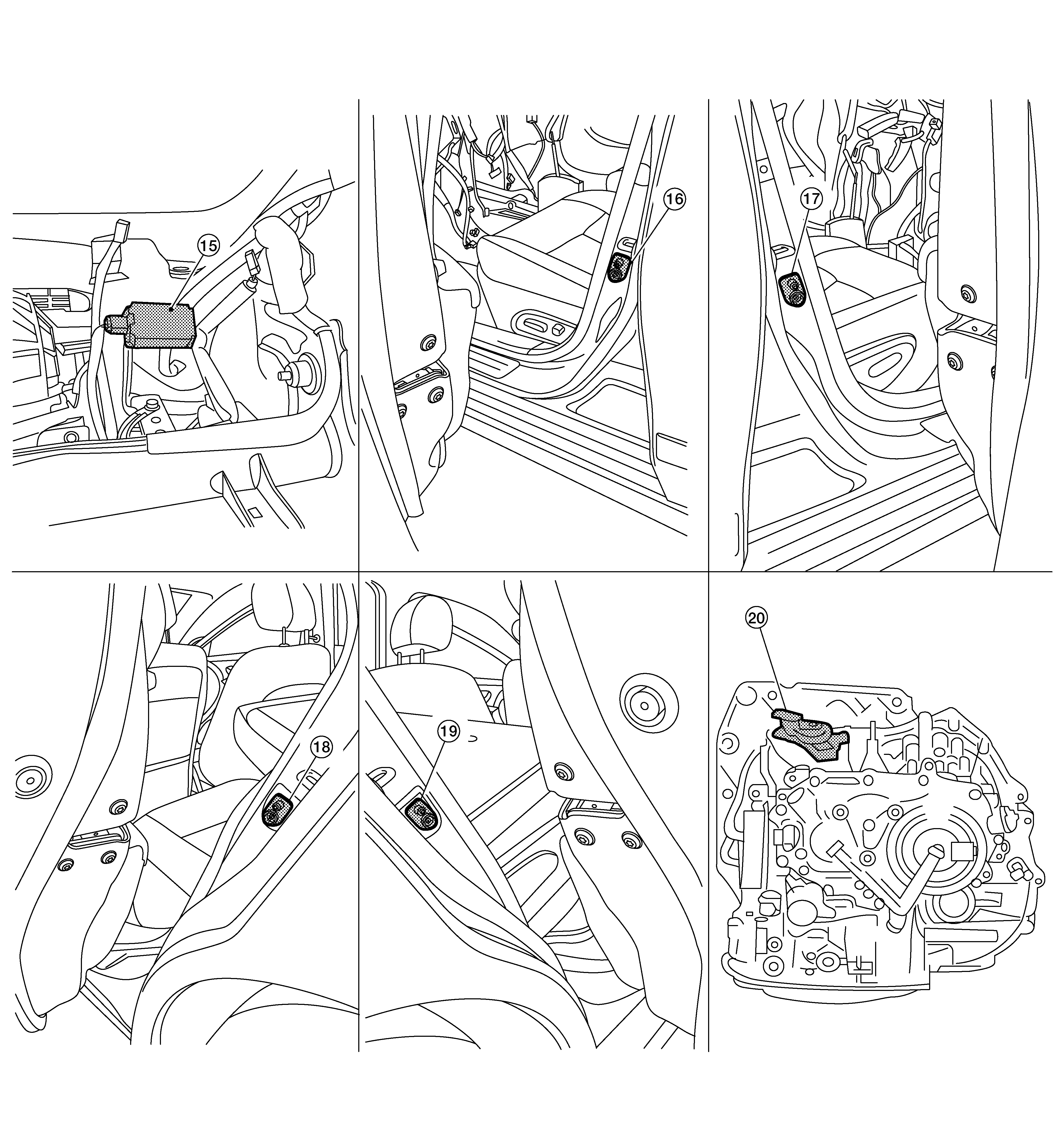

| 13. | Outside key antenna (rear bumper) (view with rear bumper cover removed) | 14. | Hood switch | 15. | Remote keyless entry receiver (view with upper dash pad removed) |
| 16. | Front door switch (LH) | 17. | Front door switch (RH) | 18. | Rear door switch (LH) |
| 19. | Rear door switch (RH) | 20. | Transmission range switch |
