Cooling System: Schematic

WARNING: This page is about a different car, the 2016 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

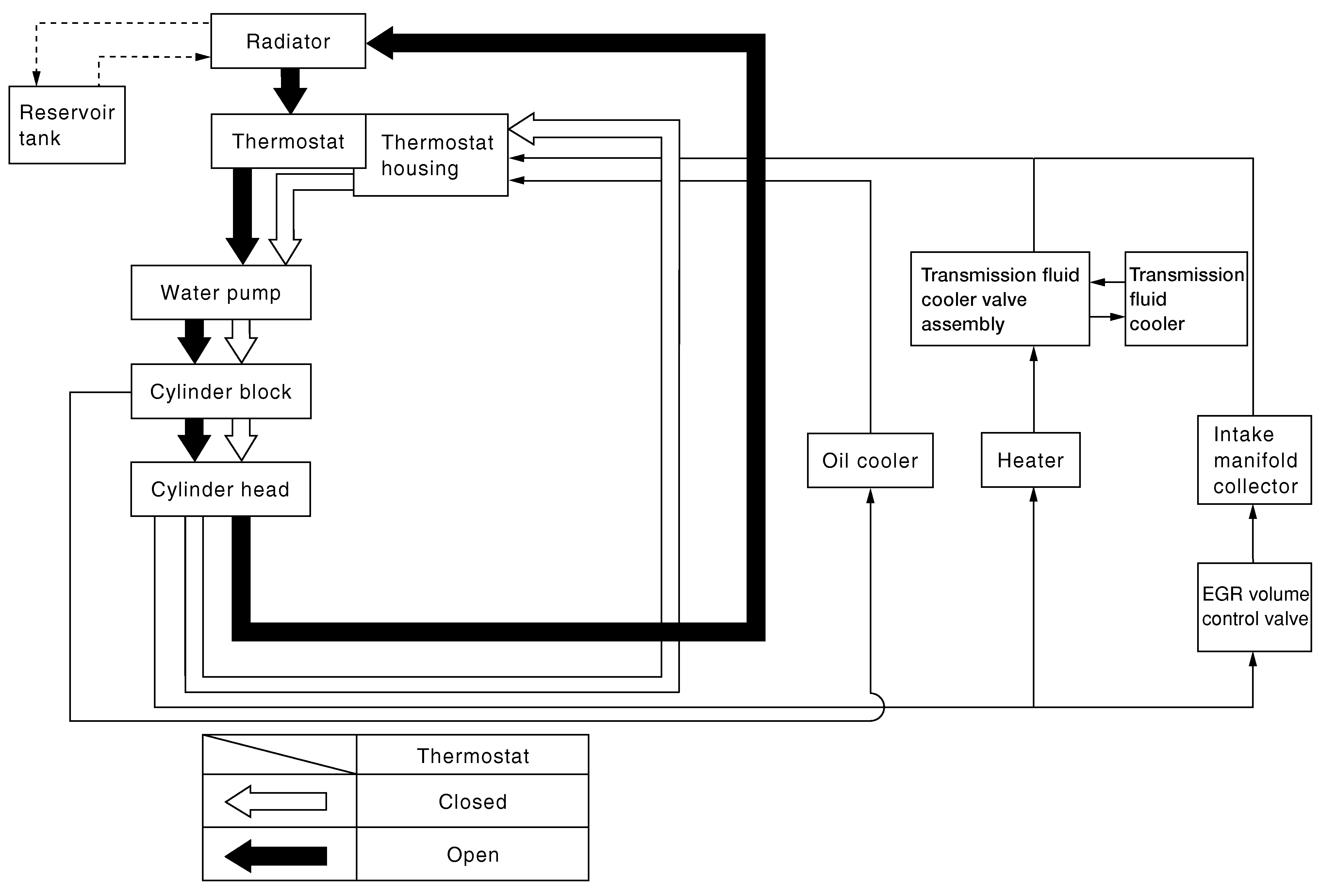

Fig 1: Cooling System Schematic
G04160000Courtesy of NISSAN NORTH AMERICA, INC.
