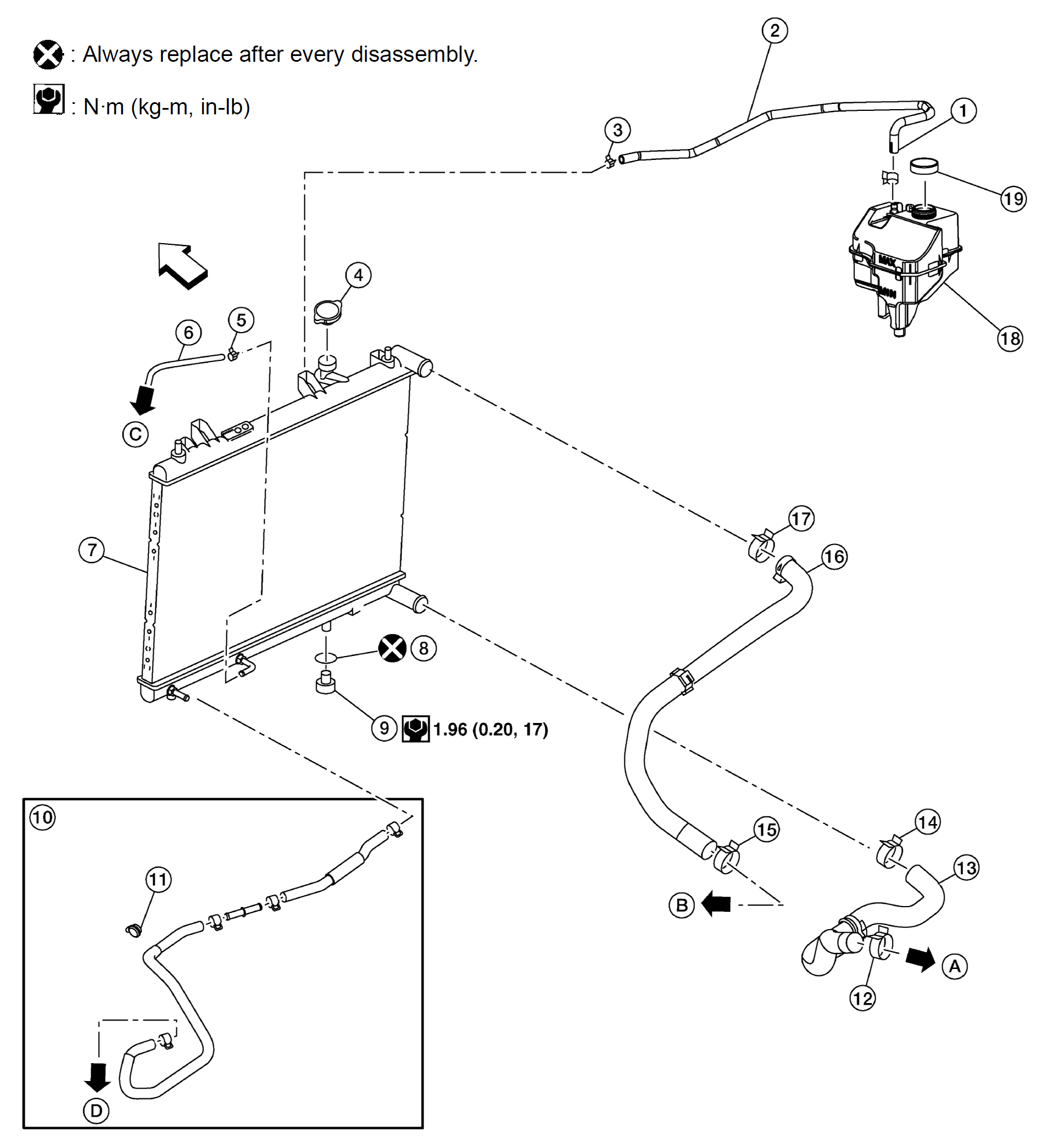

Exploded View
WARNING: This page is about a different car, the 2016 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Clamp | 2. | Reservoir Tank Hose | 3. | Clamp |
| 4. | Radiator Cap | 5. | Clamp | 6. | CVT Fluid Cooler Hose A |
| 7. | Radiator | 8. | O-Ring | 9. | Radiator drain plug |
| 10. | CVT Fluid Cooler Hose B | 11. | Retainer | 12. | Clamp |
| 13. | Radiator Hose (Lower) | 14. | Clamp | 15. | Clamp |
| 16. | Radiator Hose (Upper) | 17. | Clamp | 18. | Reservoir Tank |
| 19. | Reservoir Tank Cap | A. | To water outlet | B. | To water inlet |
| C. | To CVT warmer | D. | To CVT warmer | Front |
