Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

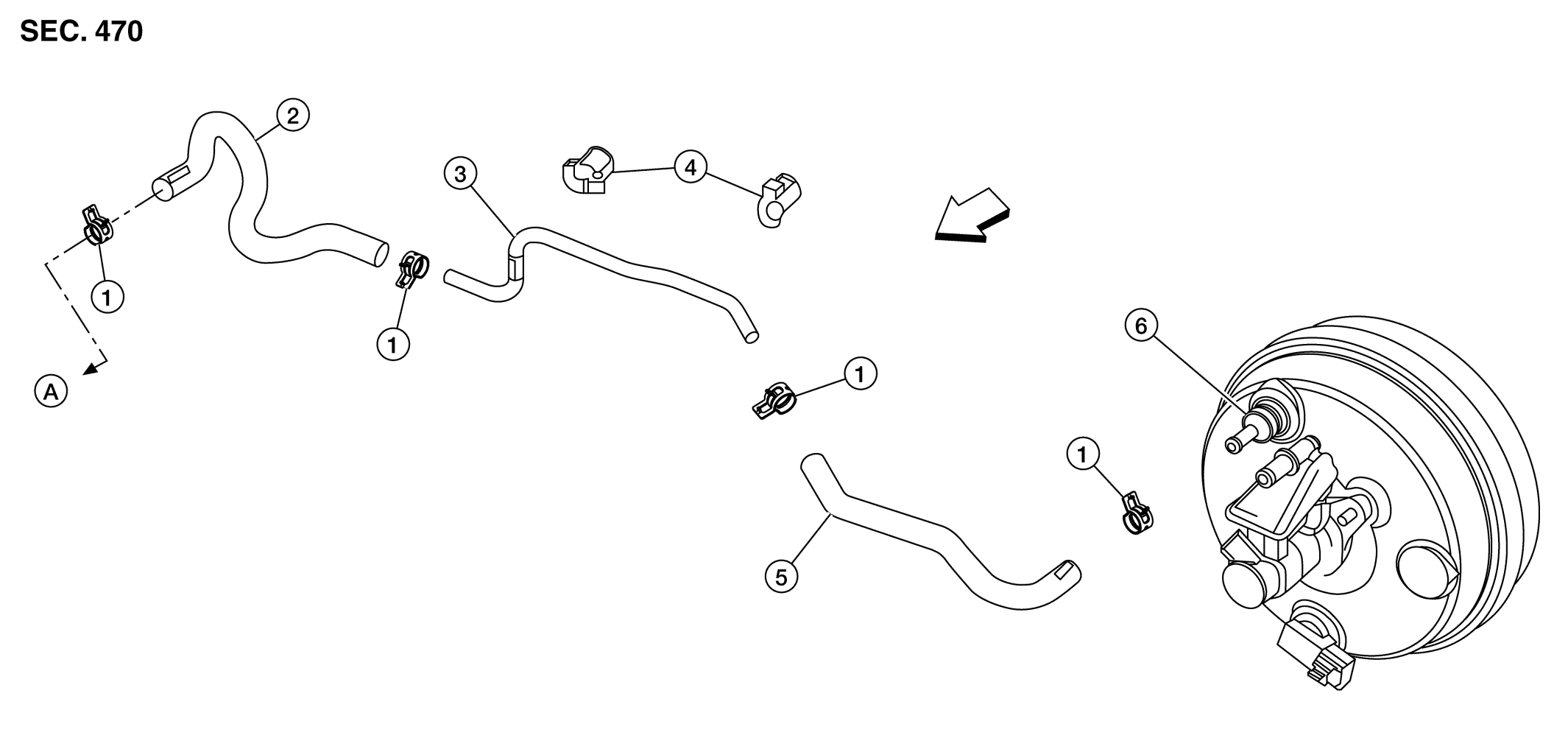

Fig 1: Vacuum Line Components

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Clamp	2.	Vacuum Hose	3.	Vacuum Pipe
4.	Clip	5.	Vacuum Hose	6.	Check Valve
A.	To Intake Manifold		Front
