Exploded View

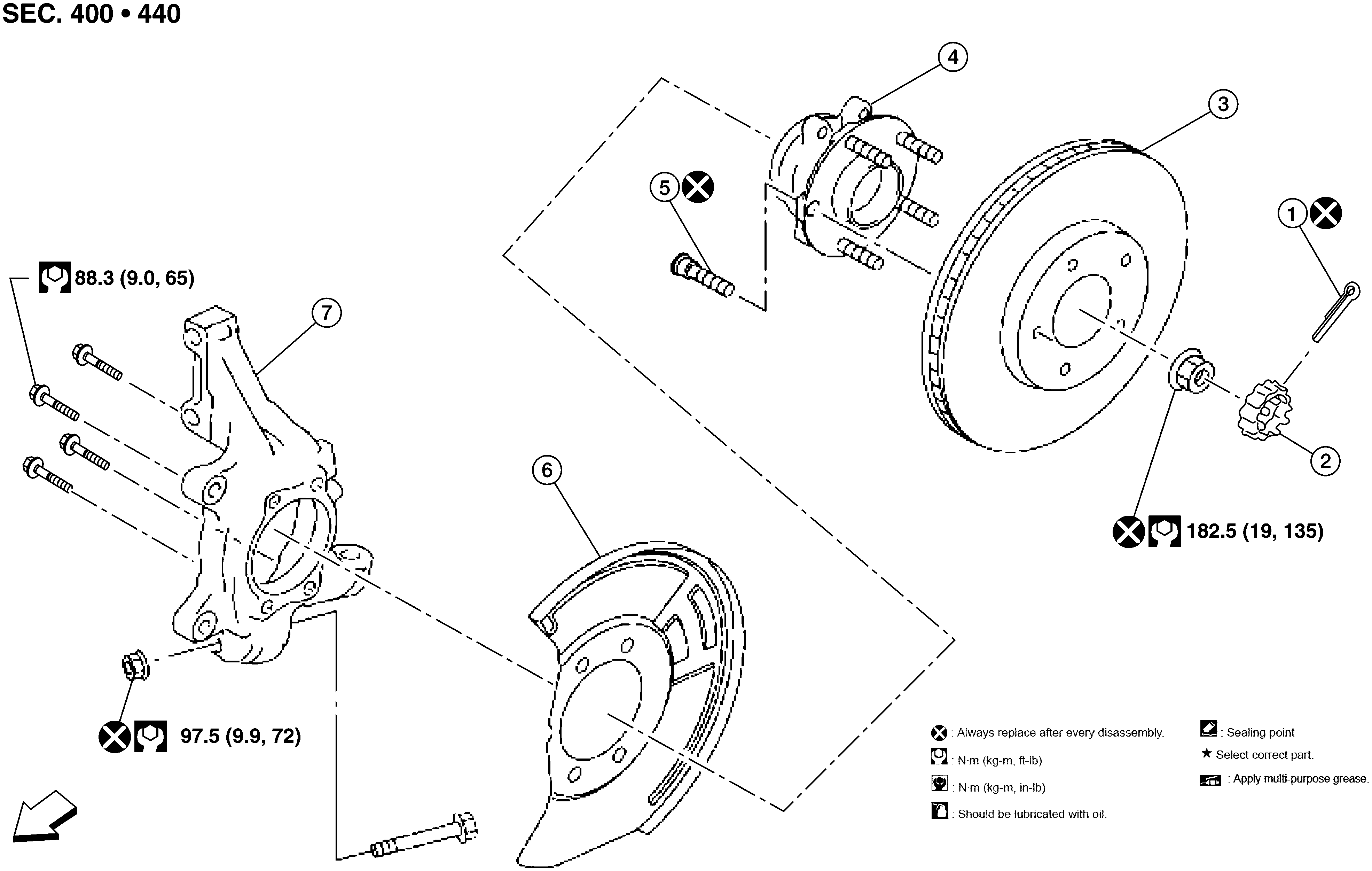

Fig 1: FRONT WHEEL HUB With Torque Specifications
GNSAWEIA0264ZZ-264Courtesy of NISSAN NORTH AMERICA, INC.
1. Cotter pin 2. Nut retainer 3. Disc brake rotor
4. Wheel hub and bearing 5. Wheel stud 6. Splash guard
7. Steering knuckle ARROW Front
