Exploded View

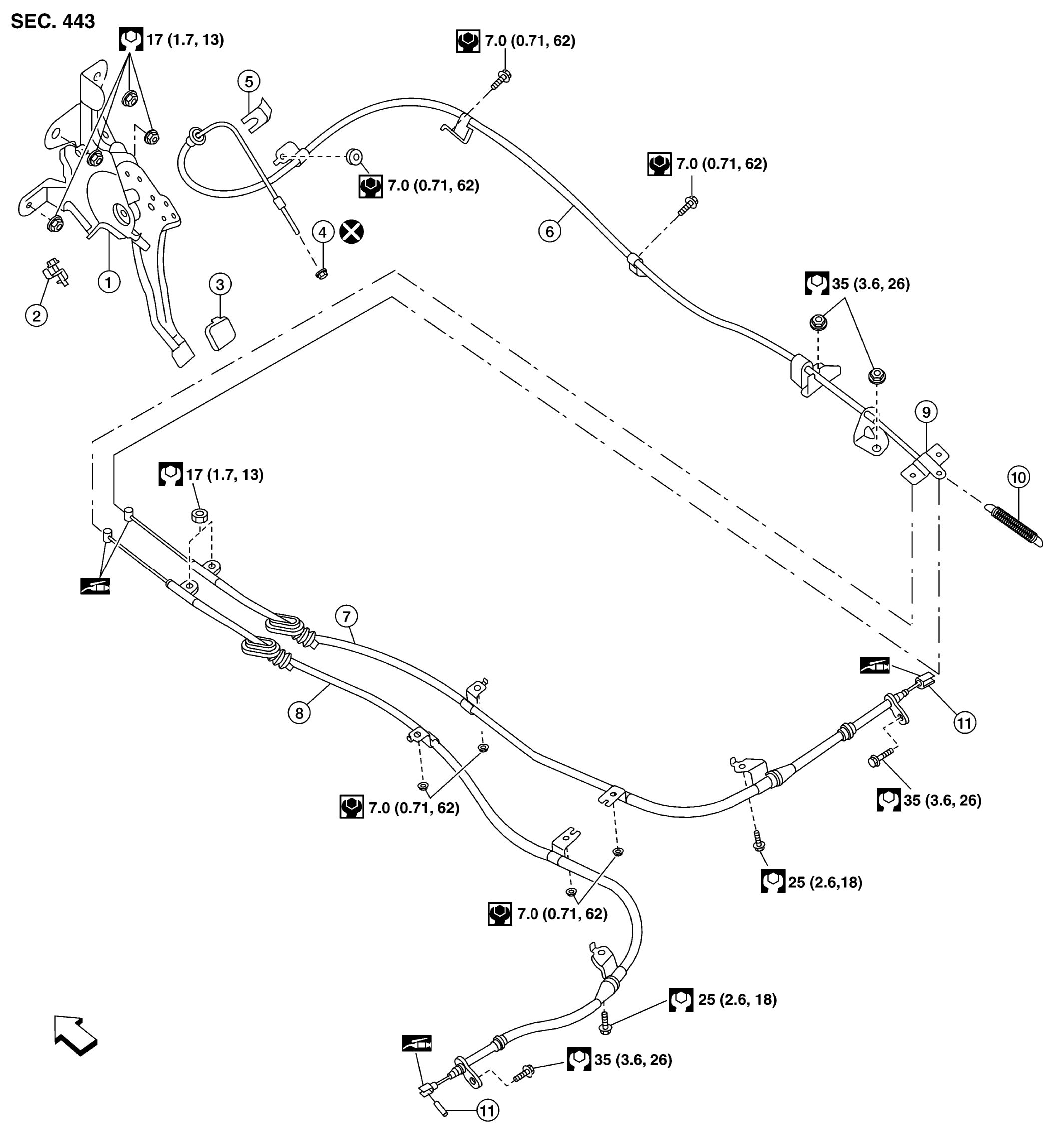

Fig 1: PARKING BRAKE CONTROL With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Parking brake pedal assembly	2.	Parking brake switch	3.	Pedal pad
4.	Adjusting nut	5.	Lock plate	6.	Front cable
7.	Rear cable (RH)	8.	Rear cable (LH)	9.	Equalizer
10.	Spring	11.	Pin		Front
