Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

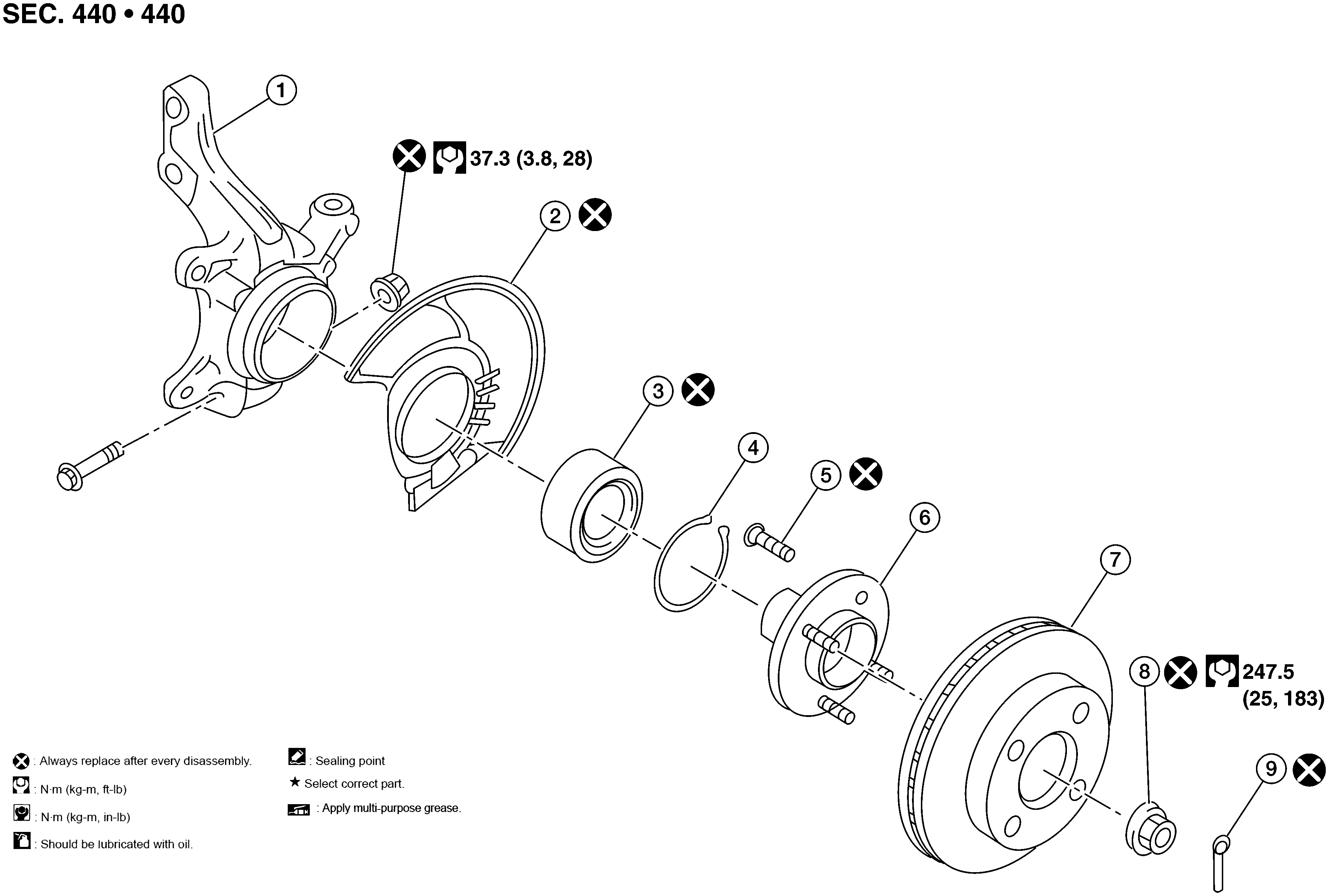

Fig 1: Exploded View Of Front Wheel Hub And Knuckle With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering knuckle	2.	Splash guard	3.	Wheel bearing
4.	Snap ring	5.	Hub bolt	6.	Wheel hub
7.	Disc rotor	8.	Wheel hub lock nut	9.	Cotter pin
