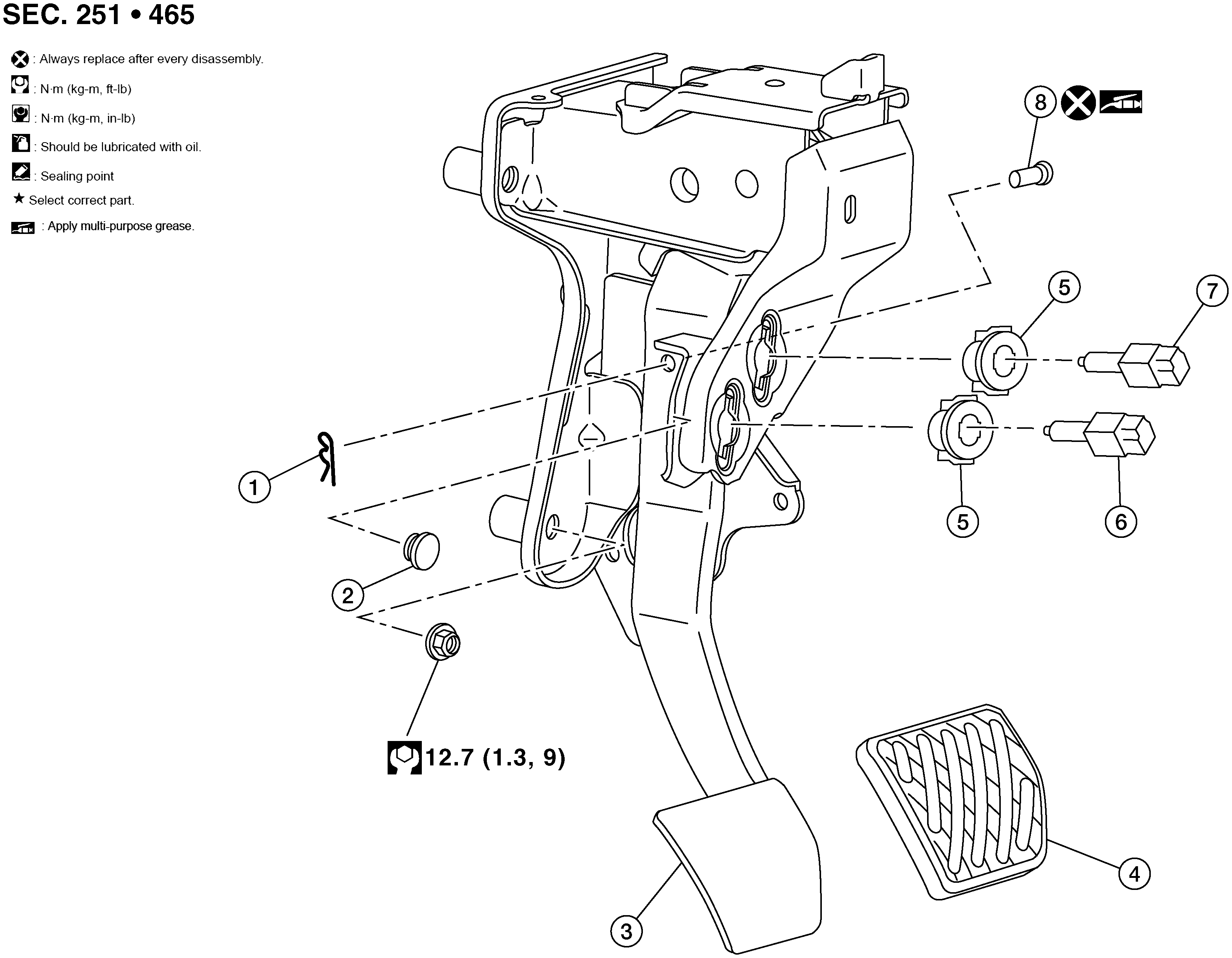

Exploded View
WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Snap pin |
2. |
Rubber stopper |
3. |
Brake pedal assembly |
| 4. |
Brake pedal pad |
5. |
Clip |
6. |
Brake pedal position switch |
| 7. |
Stop lamp switch |
8. |
Clevis pin |
 |
Apply multi-purpose grease. |
*M/T shown, CVT similar.
