Power Steering Control System: Wiring Diagram

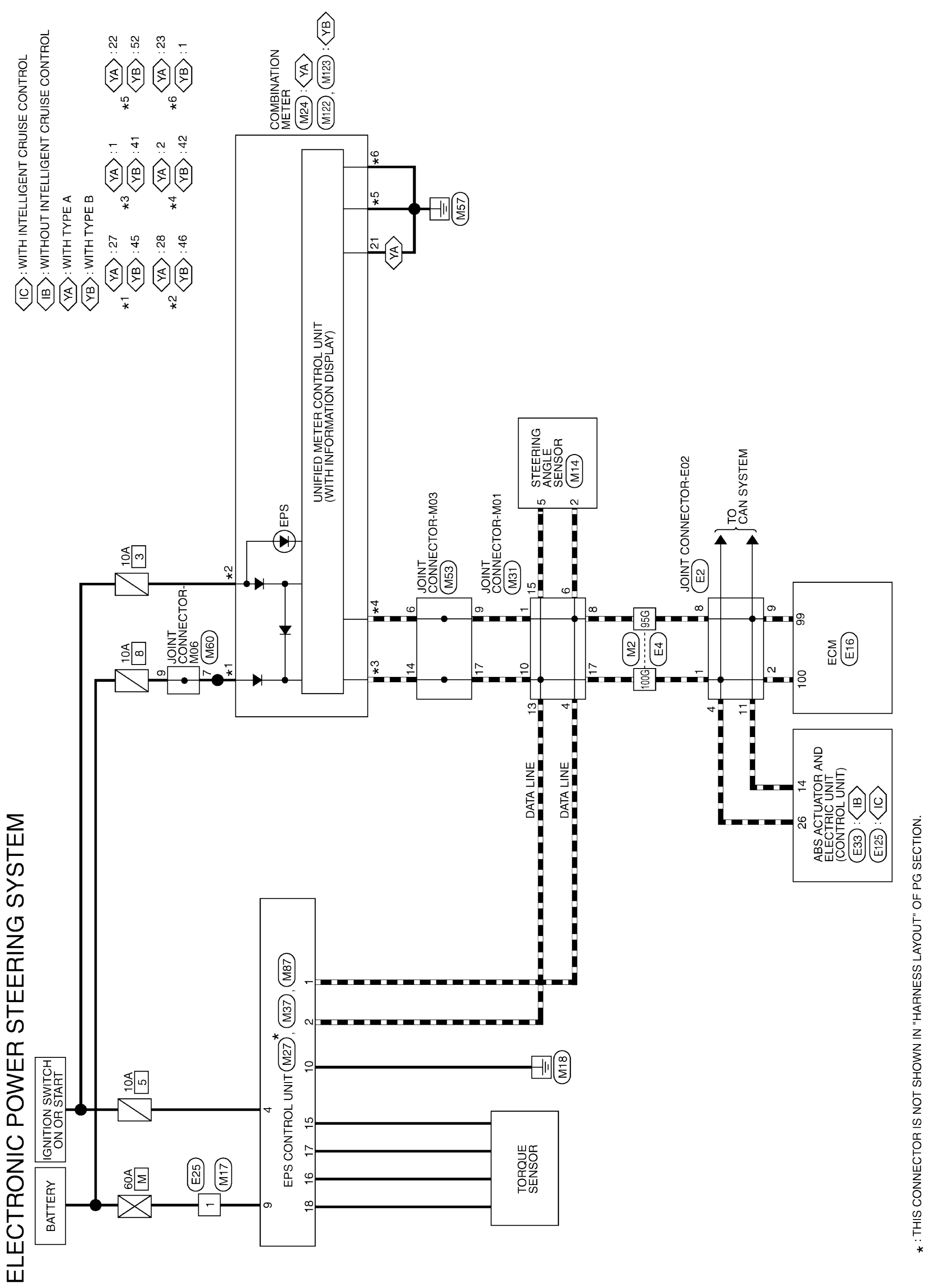

Fig 1: Power Steering Control System Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

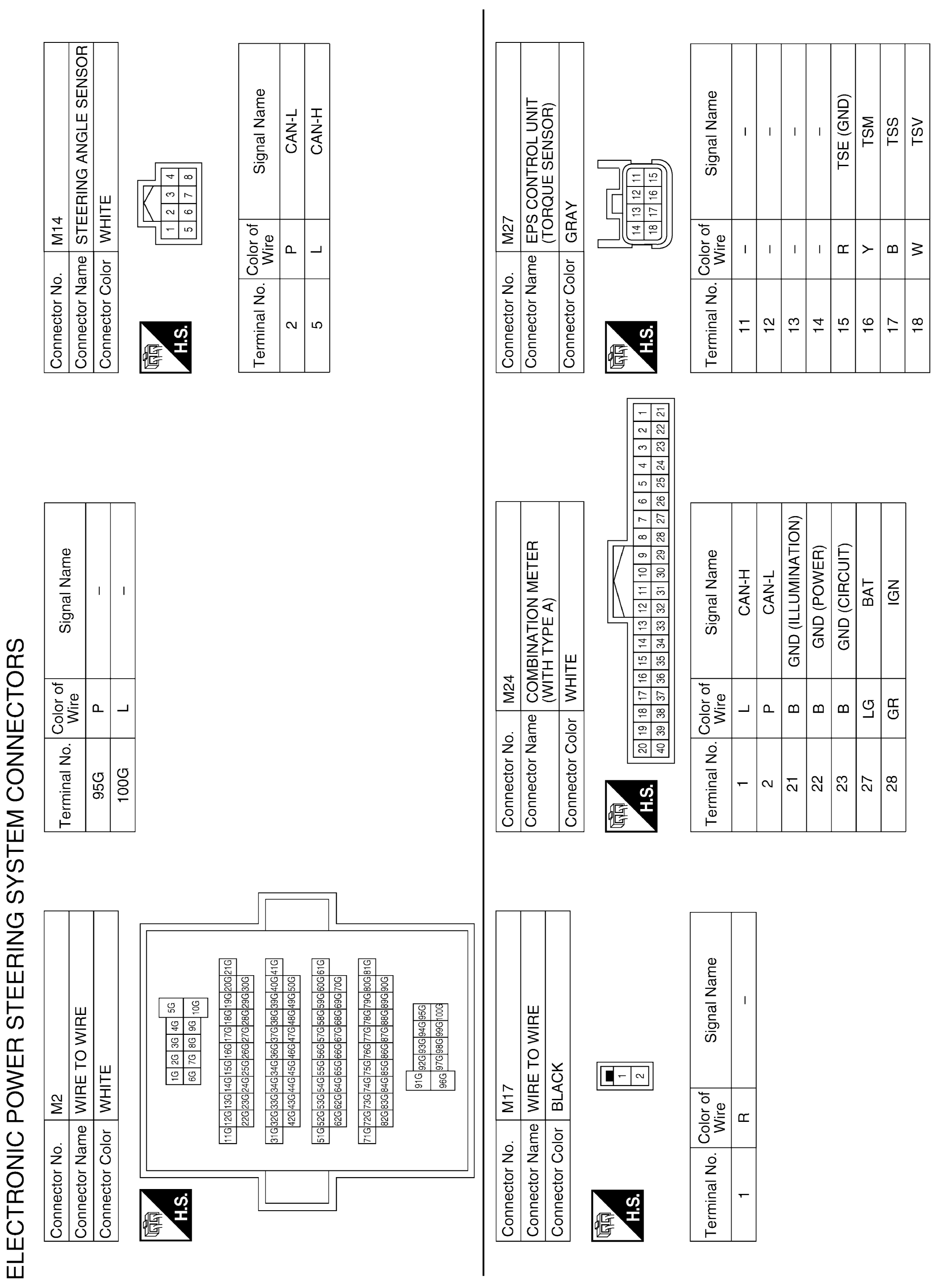

Fig 2: Power Steering Control System Connectors (1 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

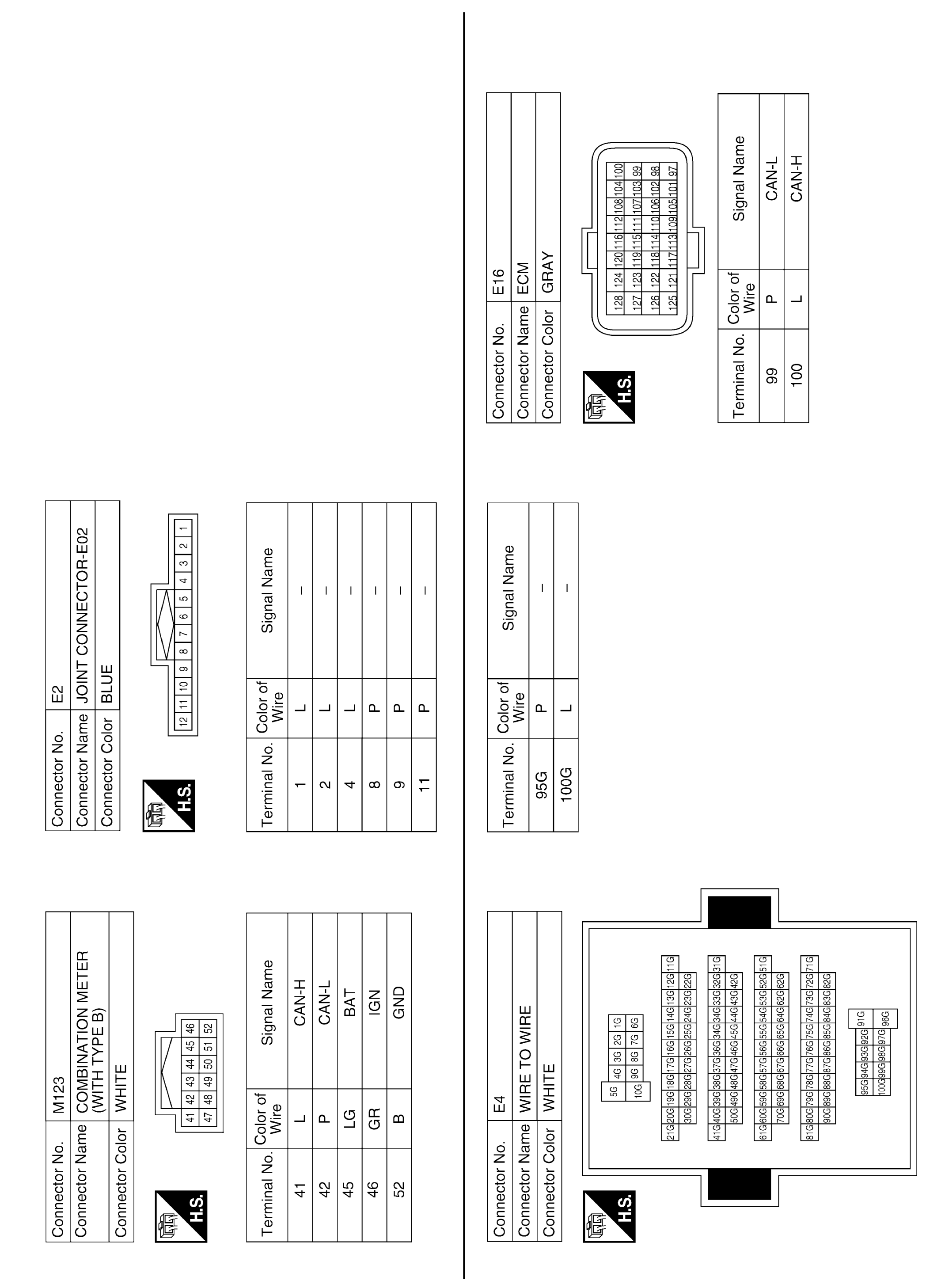

Fig 3: Power Steering Control System Connectors (2 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

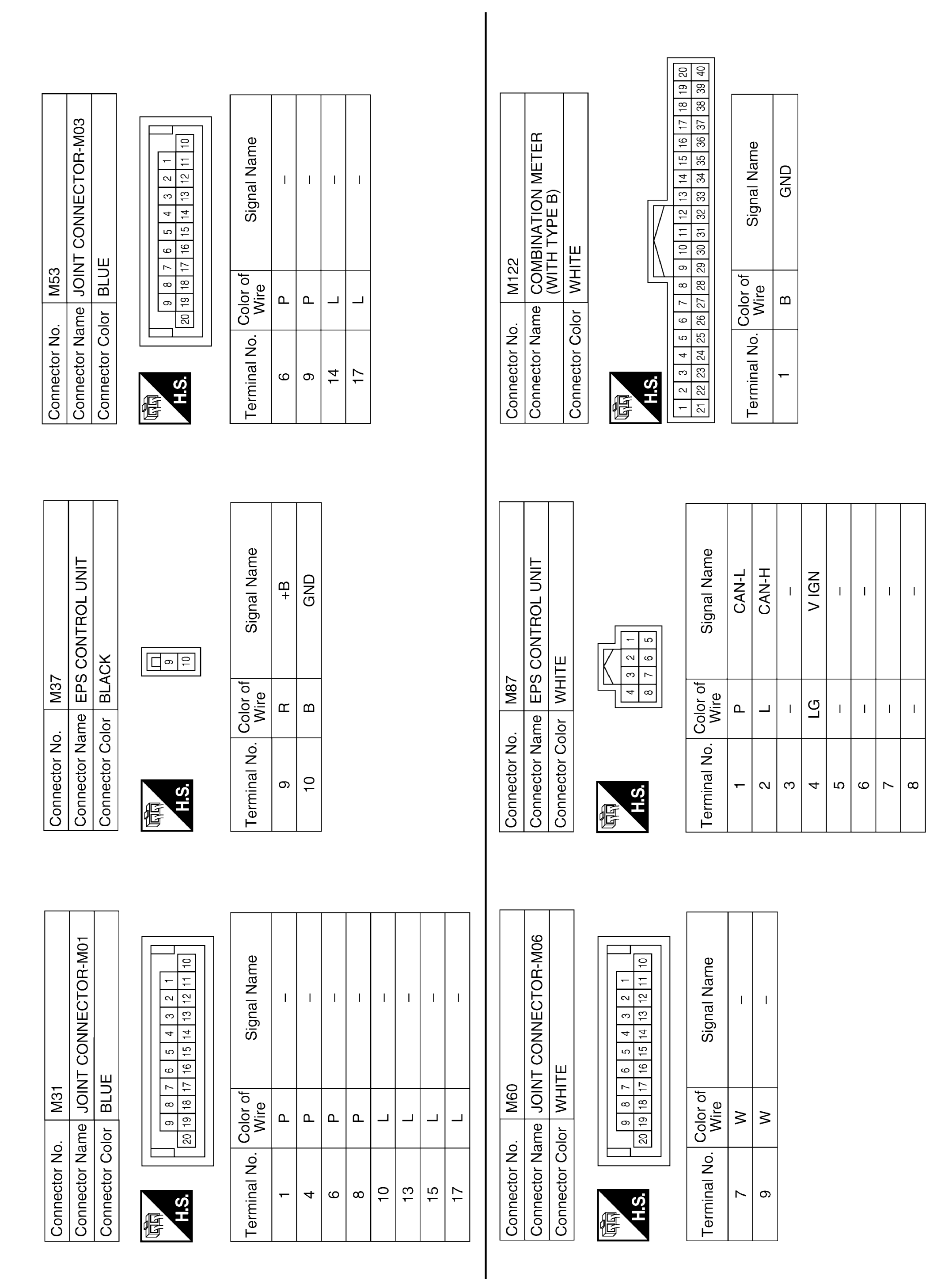

Fig 4: Power Steering Control System Connectors (3 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

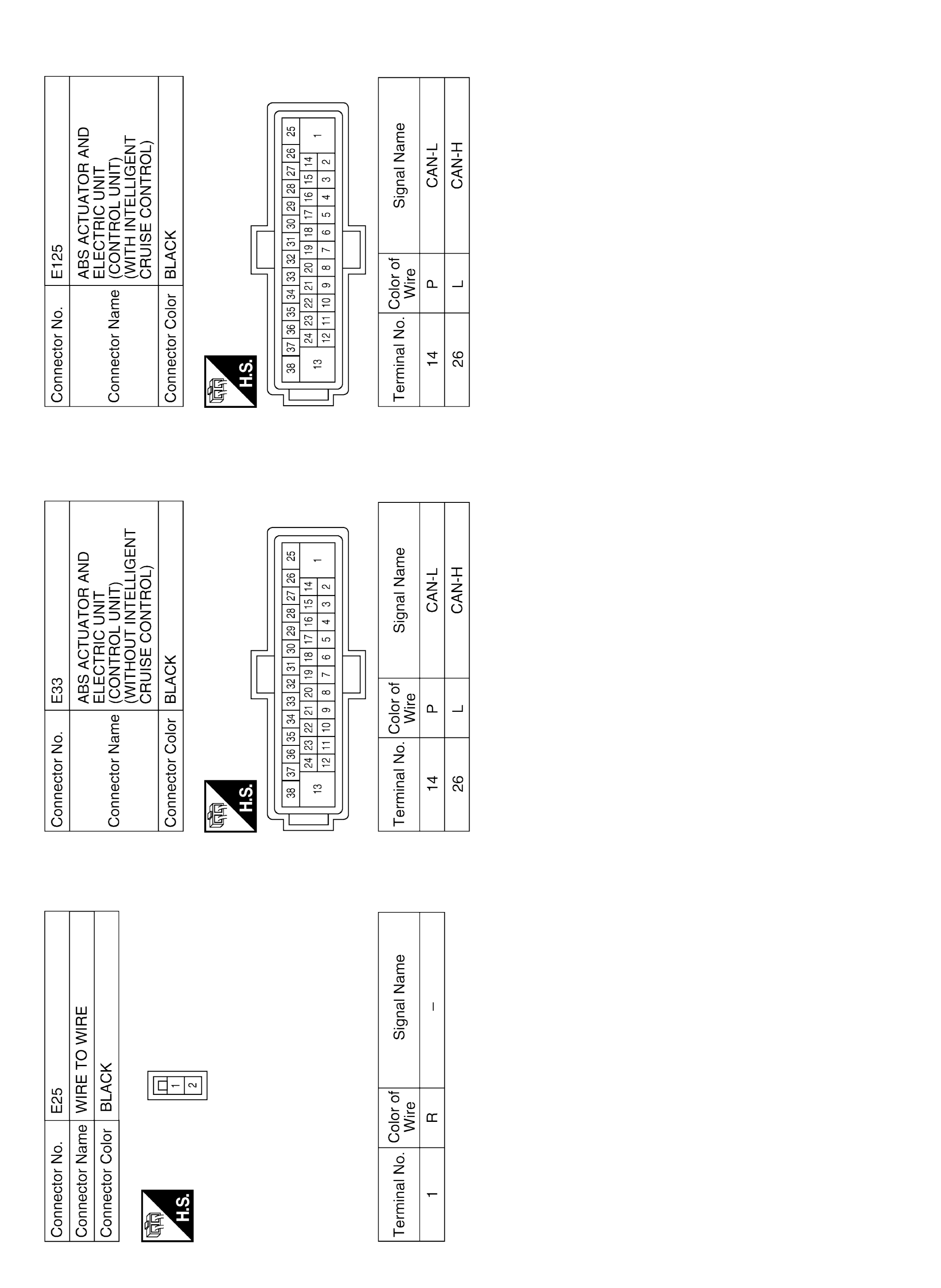

Fig 5: Power Steering Control System Connectors (4 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.
