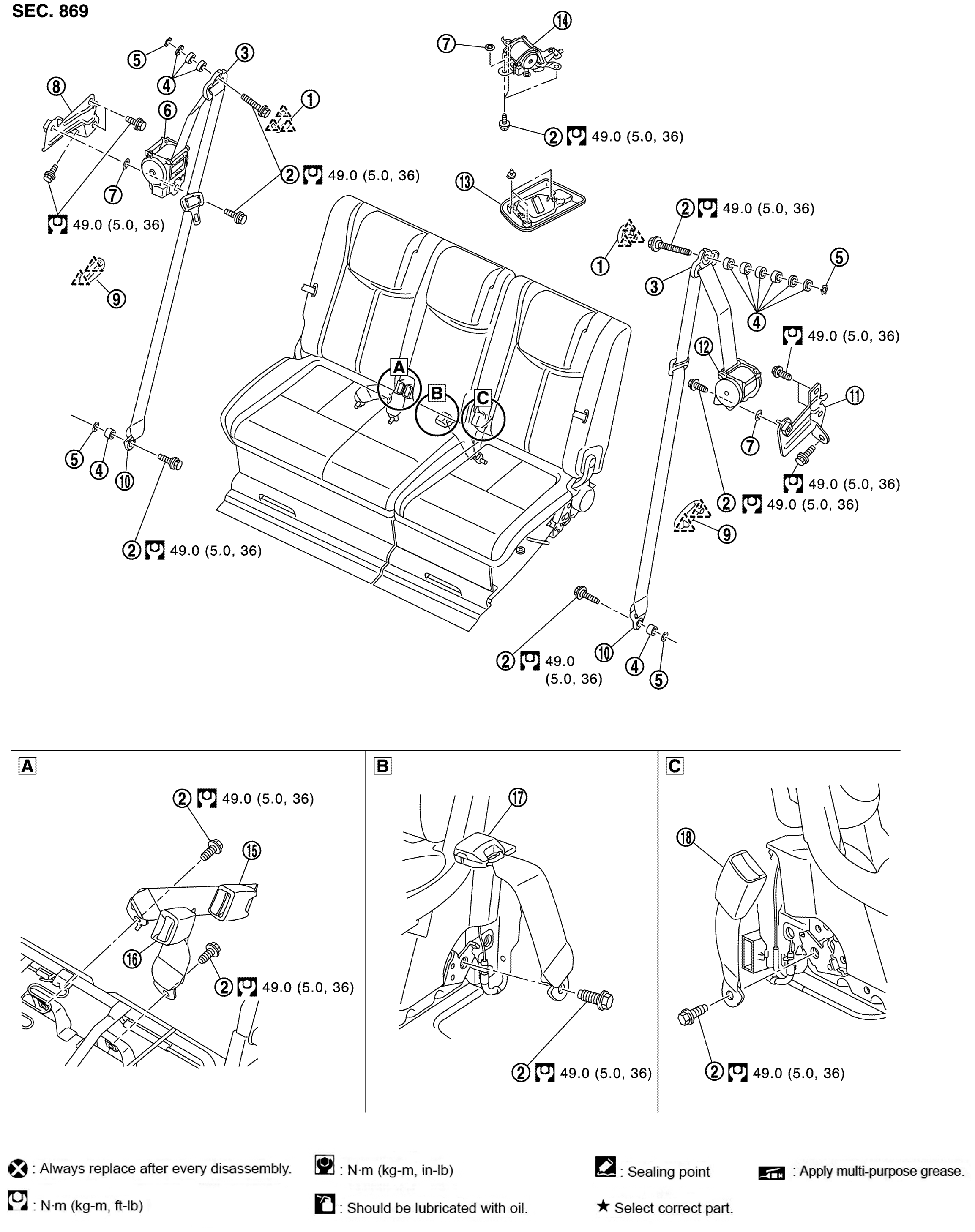

Exploded View With Torque Specifications

Fig 1: Third Seat Belt With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Shoulder anchor cover	2.	Anchor bolt	3.	Shoulder anchor
4.	Spacer	5.	Retaining washer	6.	Outer seat belt retractor RH
7.	Locking washer	8.	Seat belt shoulder bracket RH	9.	Seat belt hook
10.	Outer anchor	11.	Seat belt shoulder bracket LH	12.	Outer seat belt retractor LH
13.	Center seat belt retractor finisher	14.	Center seat belt retractor	15.	Center seat belt buckle
16.	Outer seat belt buckle RH	17.	Connector buckle	18.	Outer seat belt buckle LH
	: Pawl
	: N•m (kg - m, ft - lb)
