Removal And Installation: Removal

Disconnect the harness connector (A) from the EVAP control system pressure sensor.

Fig 1: Identifying EVAP Control System Pressure Sensor Electrical Connector
Courtesy of NISSAN NORTH AMERICA, INC.
Release the locking tabs (A) and remove the EVAP control system pressure sensor (1) and O-ring (2).

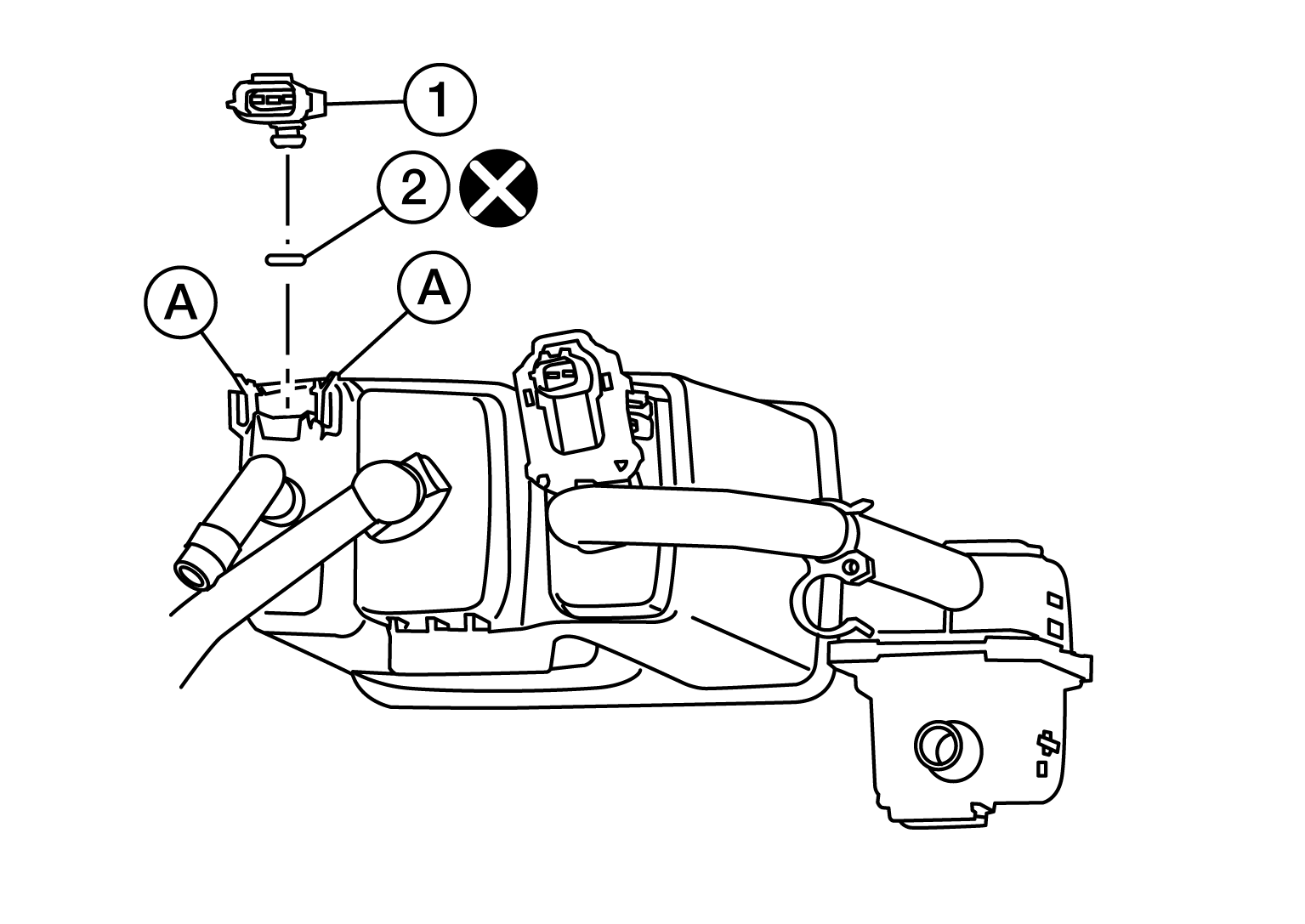

Fig 2: Identifying EVAP Control System Pressure Sensor, Locking Tabs And O-Ring
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:
Do not reuse O-ring.
