Exploded View With Torque Specifications

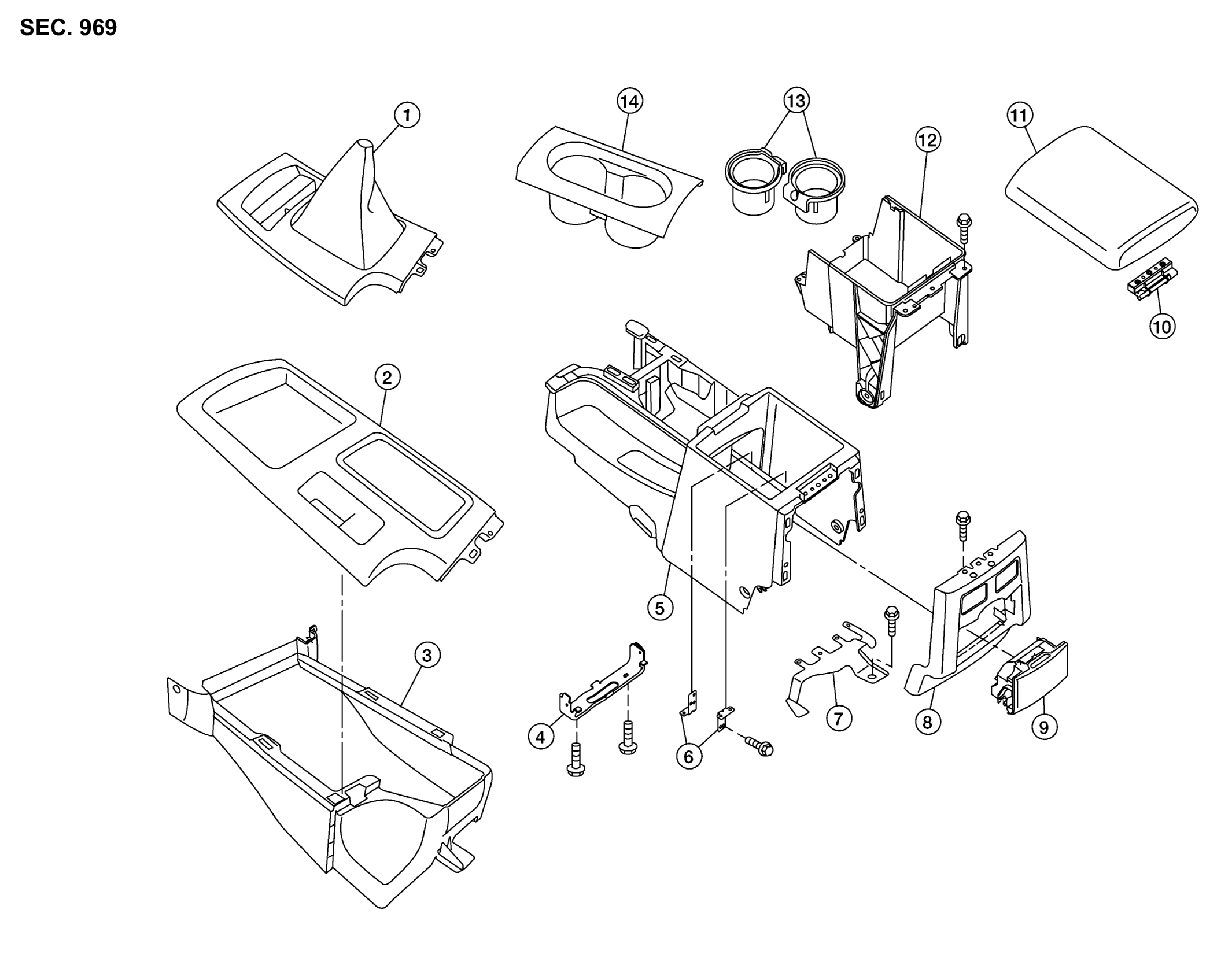

Fig 1: Exploded View Of Center Console Assembly

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Shift selector finisher (M/T)	2.	Shift selector finisher (A/T)	3.	Center console front base
4.	Bracket	5.	Center console rear base	6.	Bracket
7.	Wire harness bracket	8.	Rear finisher assembly	9.	Rear cup holder assembly
10.	Center console lid hinge	11.	Center console lid	12.	Center console bin
13.	Cup holder insert	14.	Cup holder finisher	A.	Bolt
