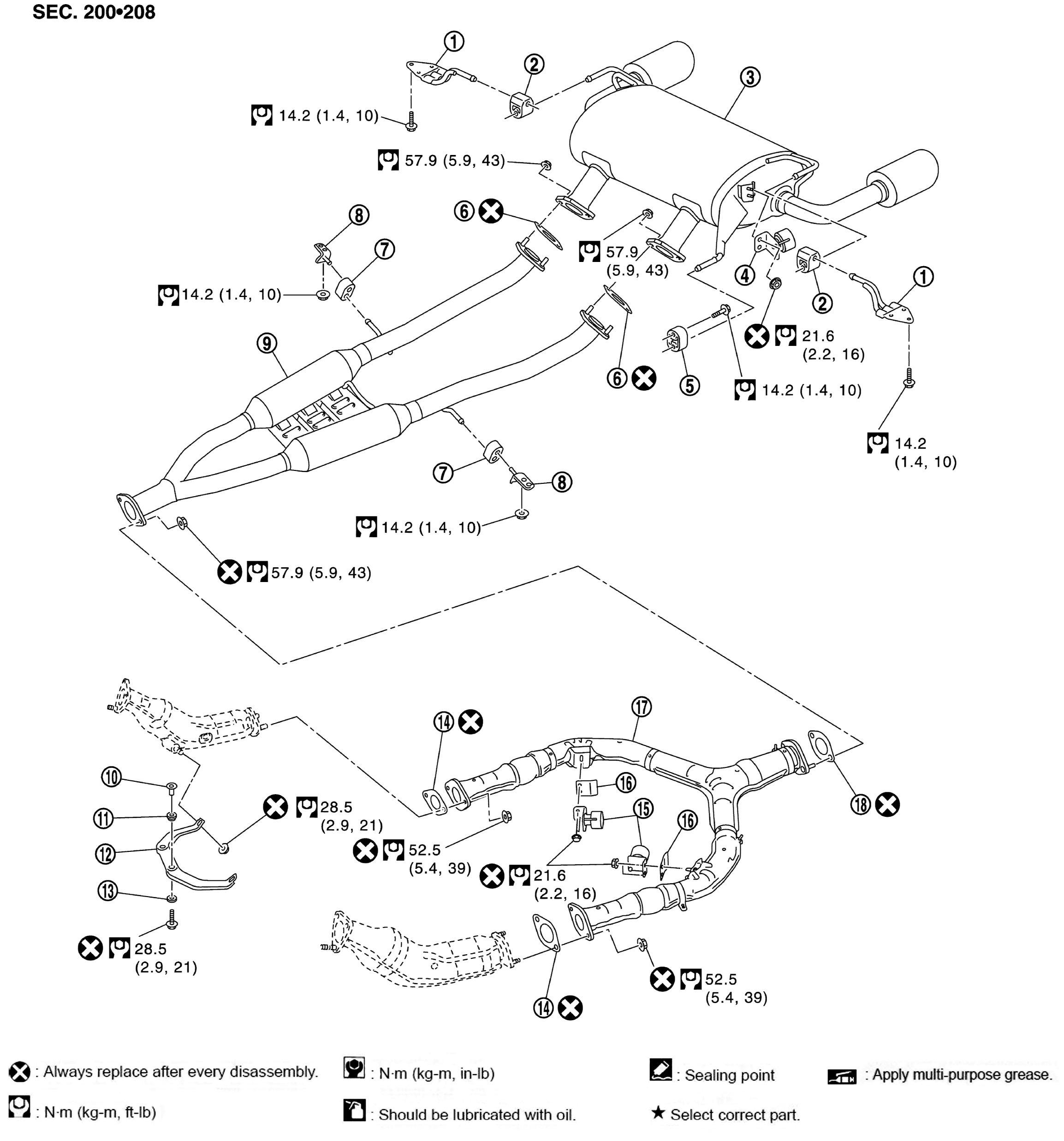

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX70. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Mounting bracket | 2. | Mounting rubber | 3. | Main muffler |
| 4. | Dynamic damper | 5. | Mounting rubber | 6. | Gasket |
| 7. | Mounting rubber | 8. | Mounting bracket | 9. | Center muffler |
| 10. | Collar | 11. | Grommet | 12. | Exhaust mounting bracket |
| 13. | Grommet | 14. | Gasket | 15. | Dynamic damper |
| 16. | Insulator | 17. | Exhaust front tube | 18. | Gasket |
| Refer to COMPONENTS for symbols in the figure. | |||||
