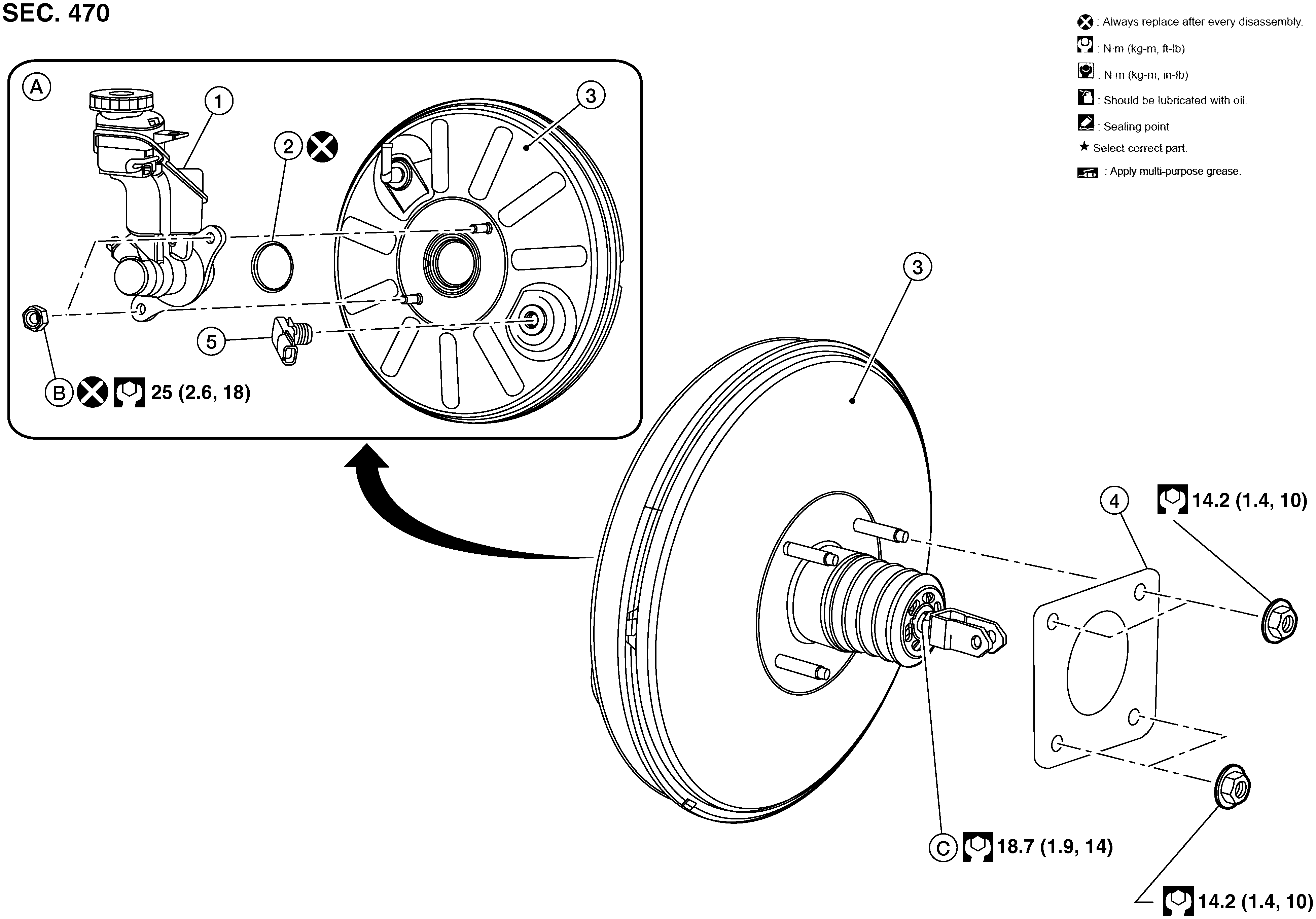

Exploded View
WARNING: This page is about a different car, the 2017 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Master cylinder assembly | 2. | O-ring | 3. | Brake booster |
| 4. | Gasket | 5. | Brake booster pressure sensor | A. | Refer to REMOVAL AND INSTALLATION . |
| B. | Master cylinder assembly nut | C. | Clevis lock nut |
