Exploded View With Torque Specifications

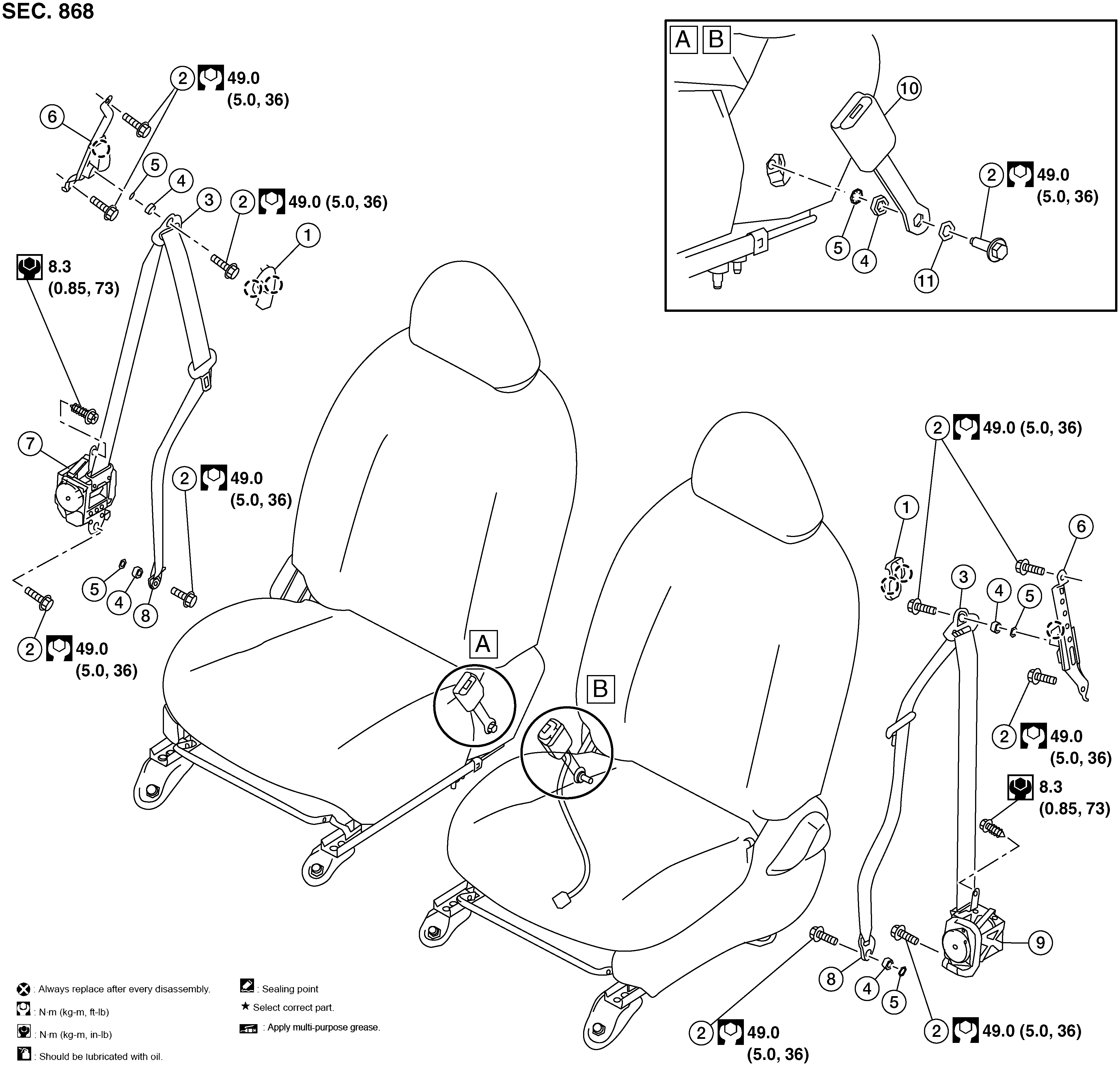

Fig 1: Exploded View Of Front Seat Belt With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat belt adjuster cover	2.	Anchor bolt	3.	D-ring anchor
4.	Spacer	5.	Retaining washer	6.	Seat belt adjuster
7.	Seat belt pre-tensioner retractor (Passenger side)	8.	Outer anchor	9.	Seat belt pre-tensioner retractor (Driver side)
10.	Seat belt buckle	11.	Wave washer		Pawl
