EPS Control Unit: Wiring Diagram

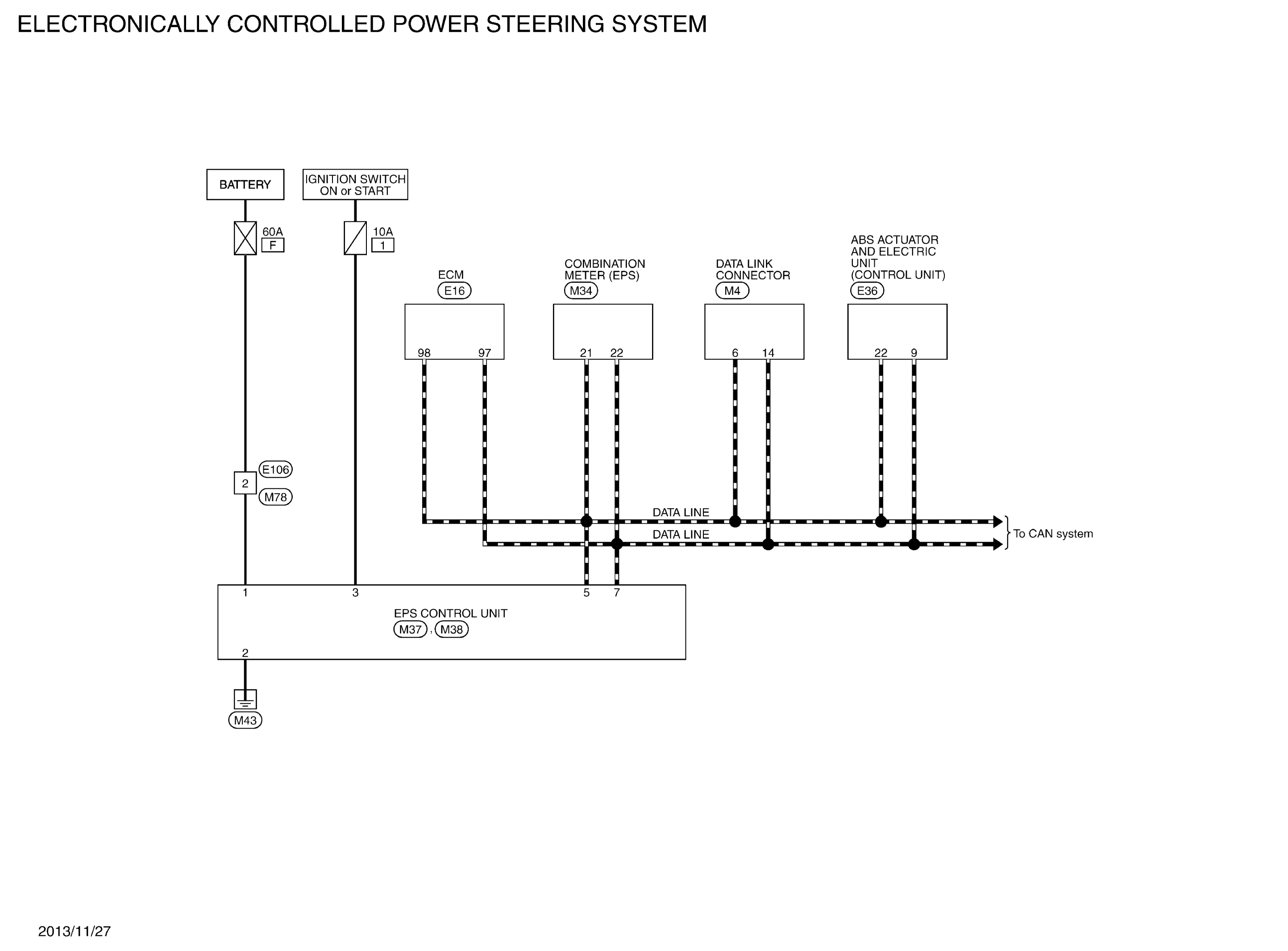

Fig 1: Electroniclly Controlled Power Steering System - Wiring Diagram
G09612052Courtesy of NISSAN NORTH AMERICA, INC.

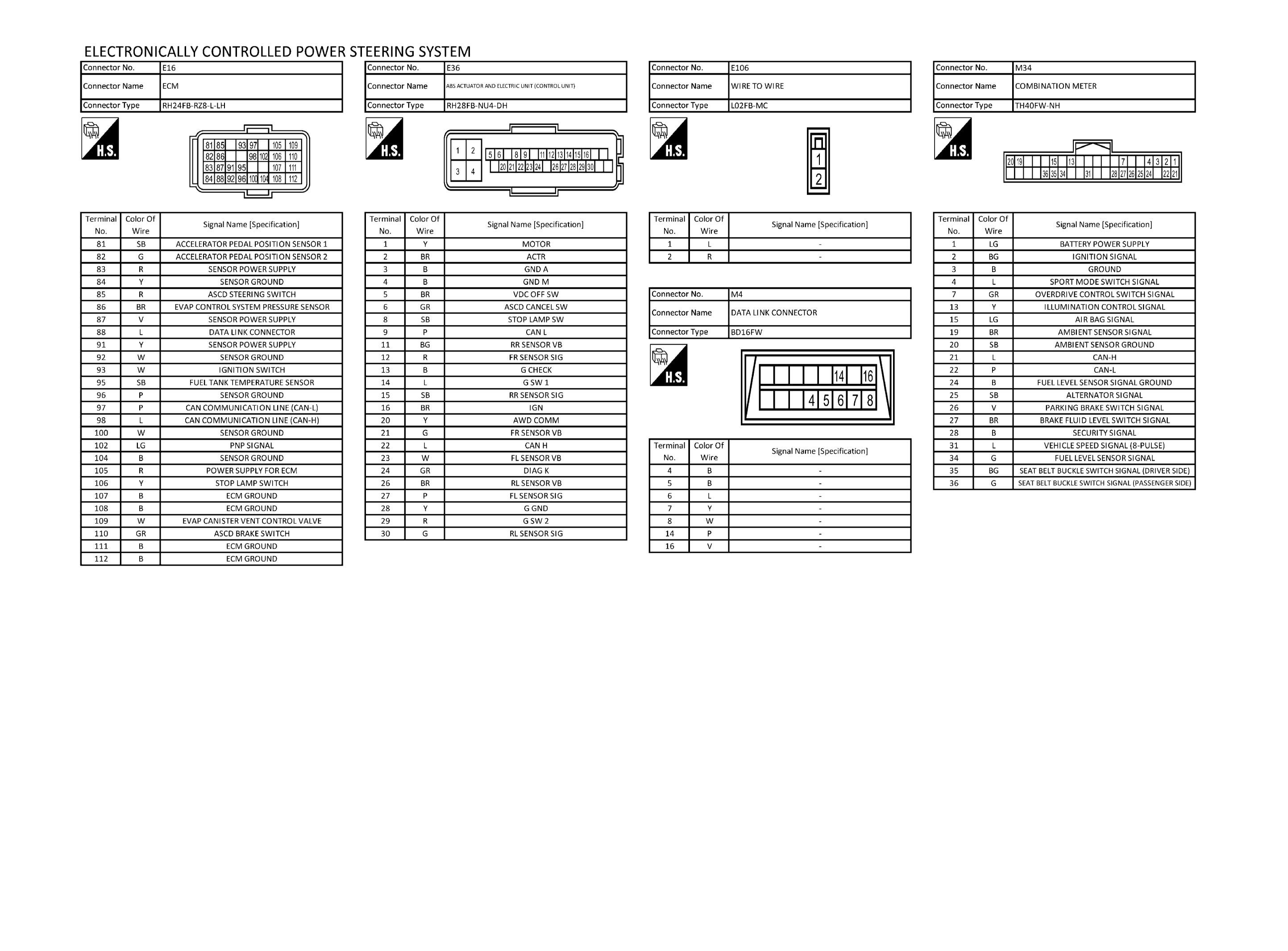

Fig 2: Electroniclly Controlled Power Steering System Connector End View (1 Of 2)
GNSJRGWC2084GB-084Courtesy of NISSAN NORTH AMERICA, INC.

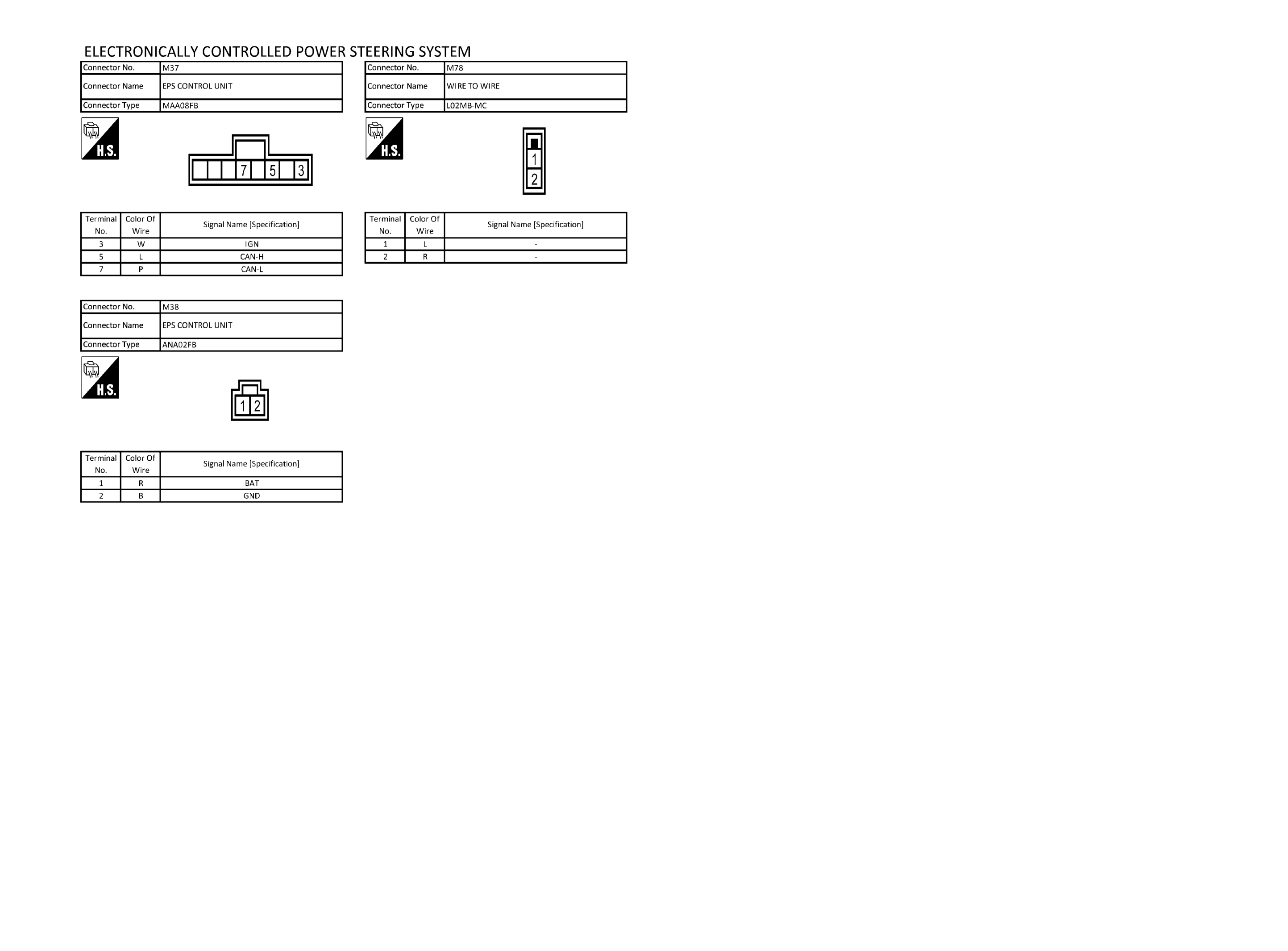

Fig 3: Electroniclly Controlled Power Steering System Connector End View (2 Of 2)
GNSJRGWC2085GB-085Courtesy of NISSAN NORTH AMERICA, INC.
