Intelligent Key System/Engine Start Function: Wiring Diagram

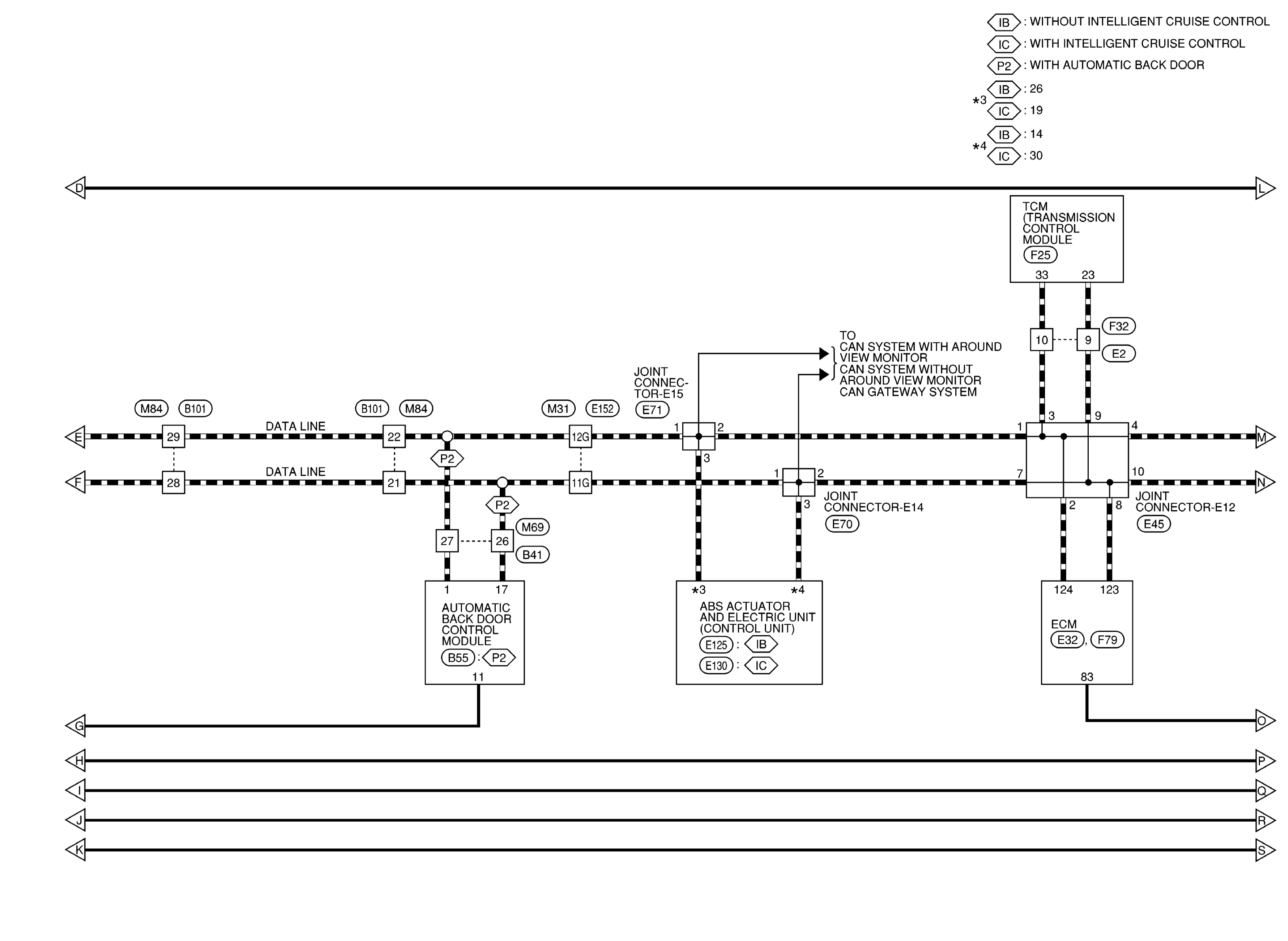

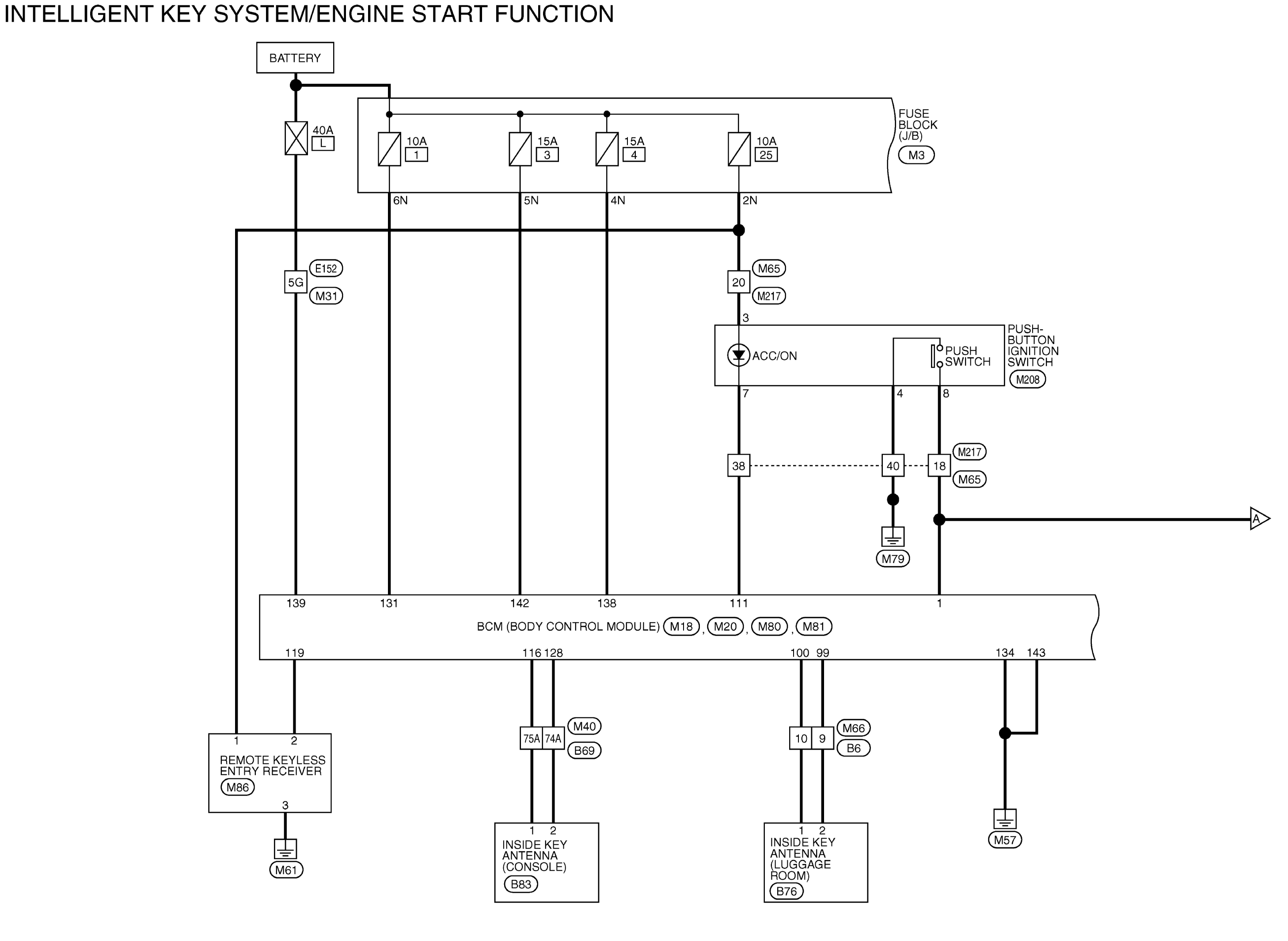

Fig 1: Intelligent Key System/Engine Start Function Wiring Diagram (1 Of 5

Courtesy of NISSAN NORTH AMERICA, INC.

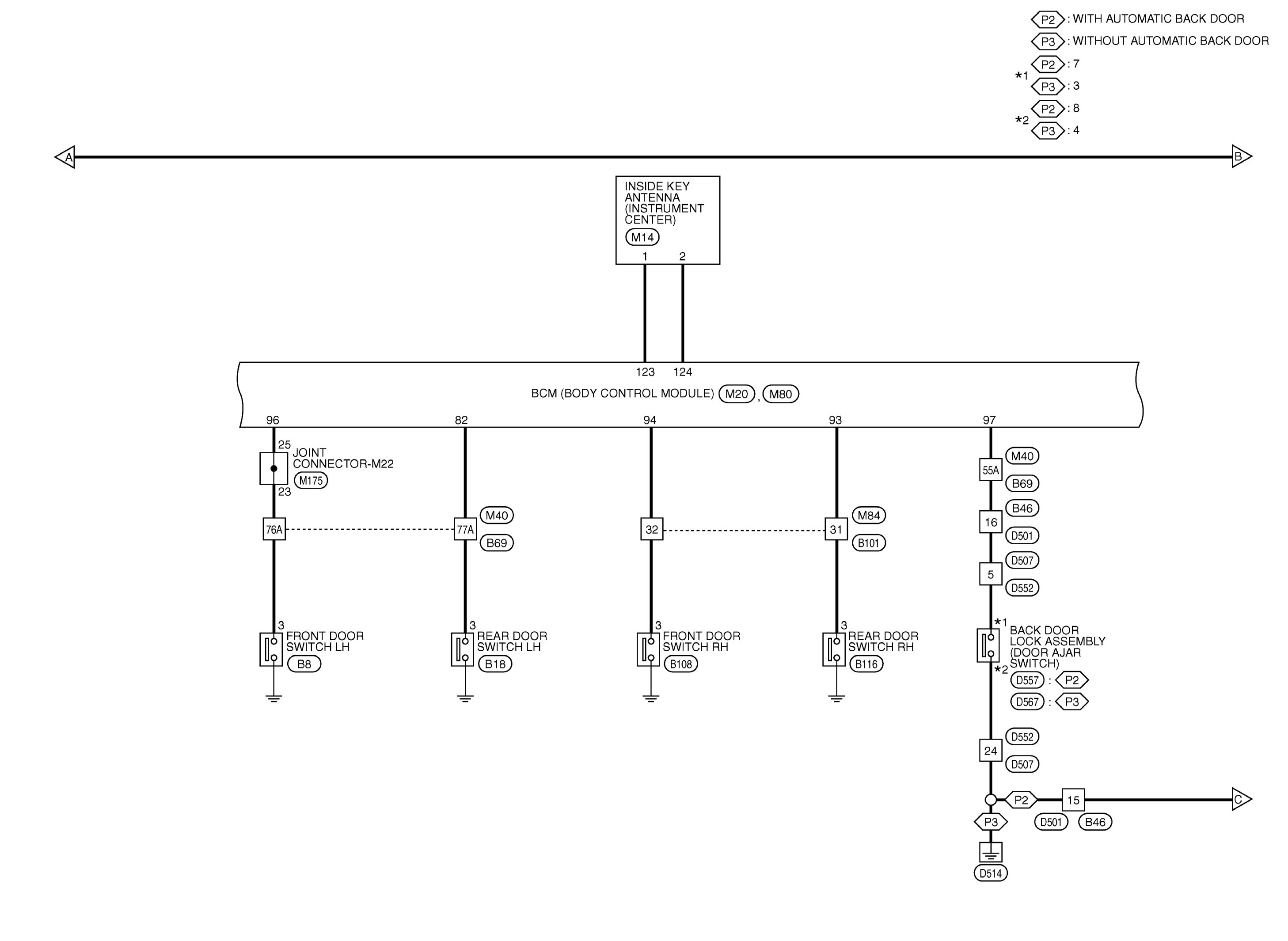

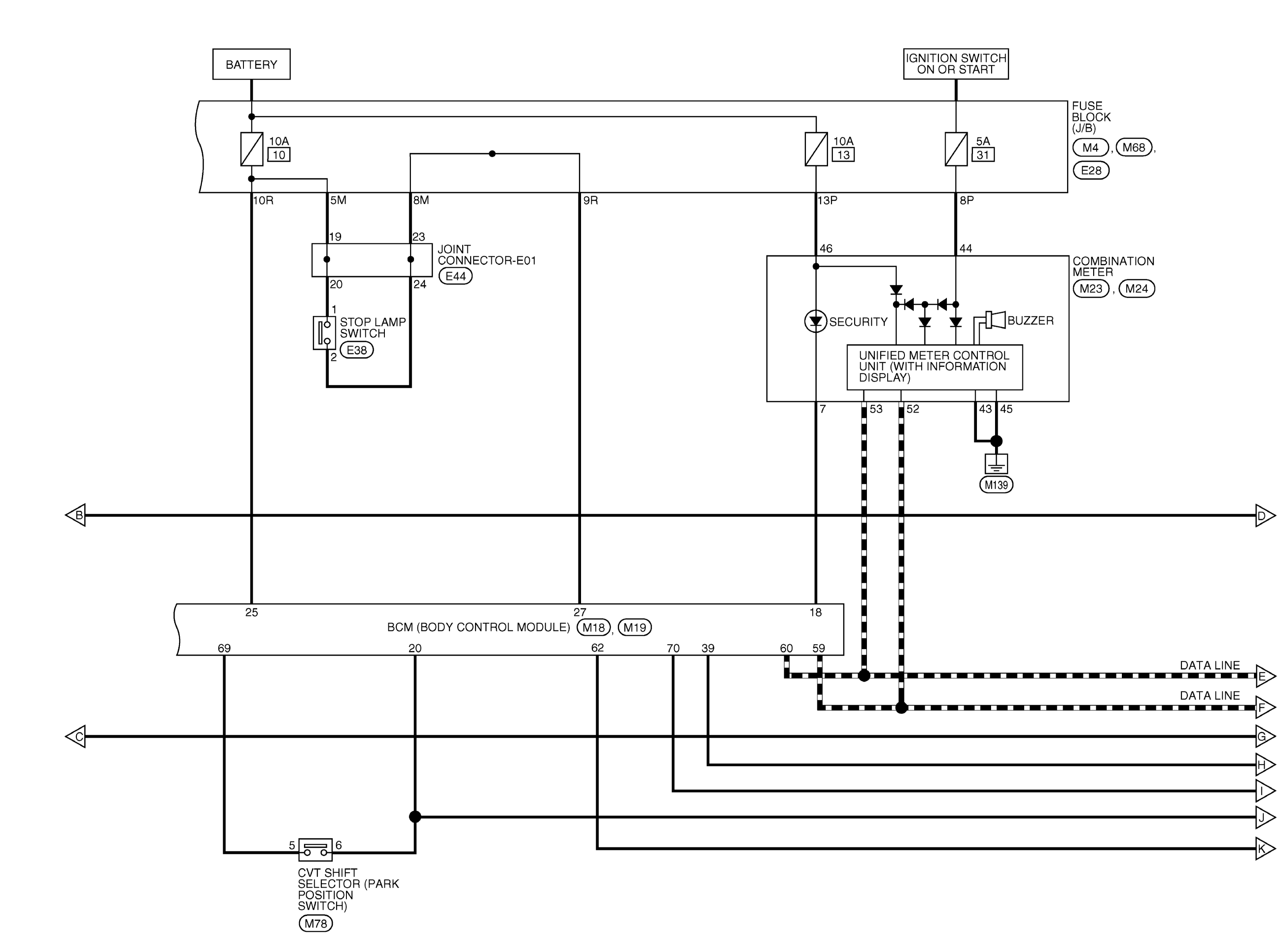

Fig 2: Intelligent Key System/Engine Start Function Wiring Diagram (2 Of 5

Courtesy of NISSAN NORTH AMERICA, INC.

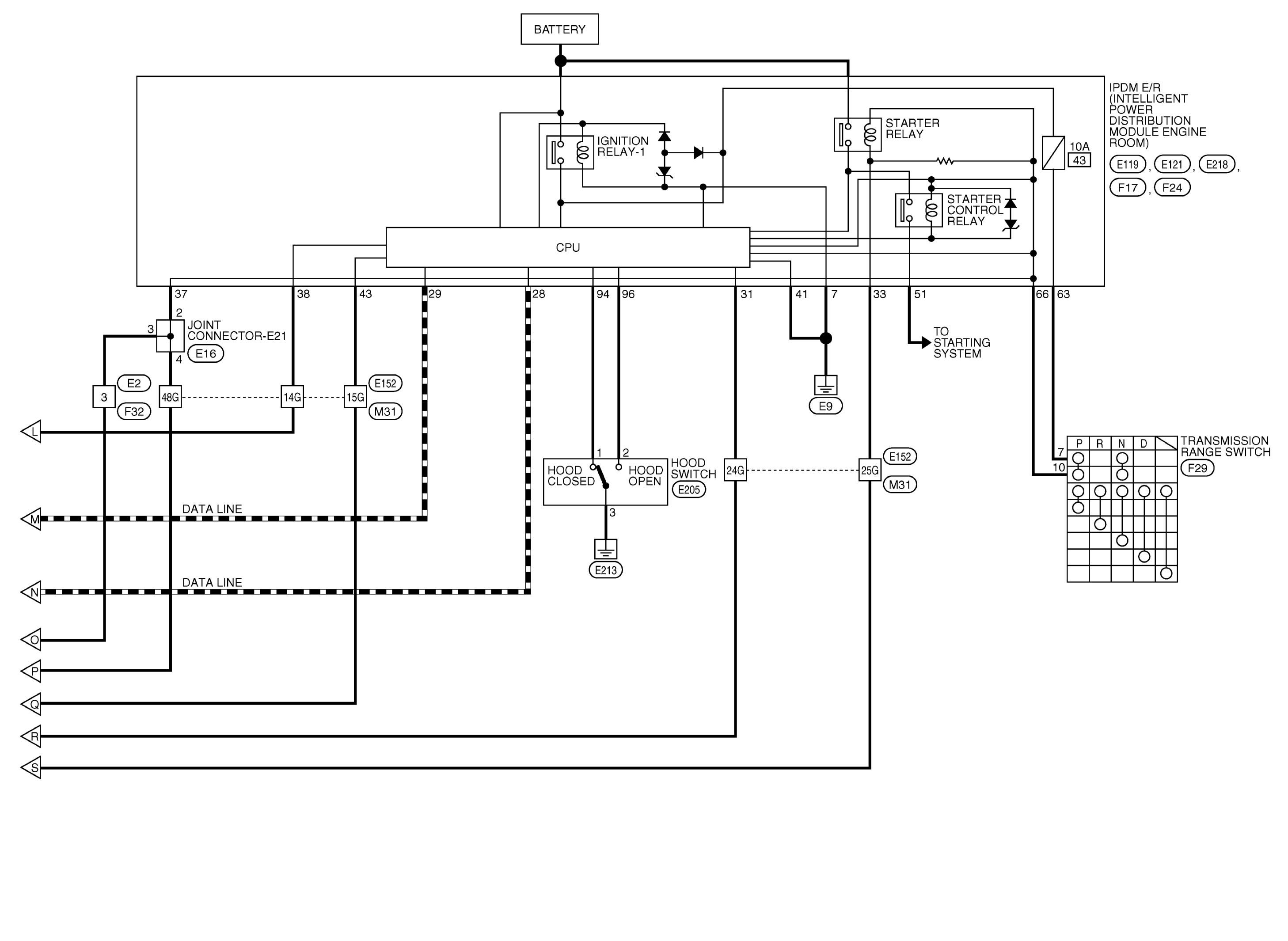

Fig 3: Intelligent Key System/Engine Start Function Wiring Diagram (3 Of 5

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Intelligent Key System/Engine Start Function Wiring Diagram (4 Of 5

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Intelligent Key System/Engine Start Function Wiring Diagram (5 Of 5

Courtesy of NISSAN NORTH AMERICA, INC.

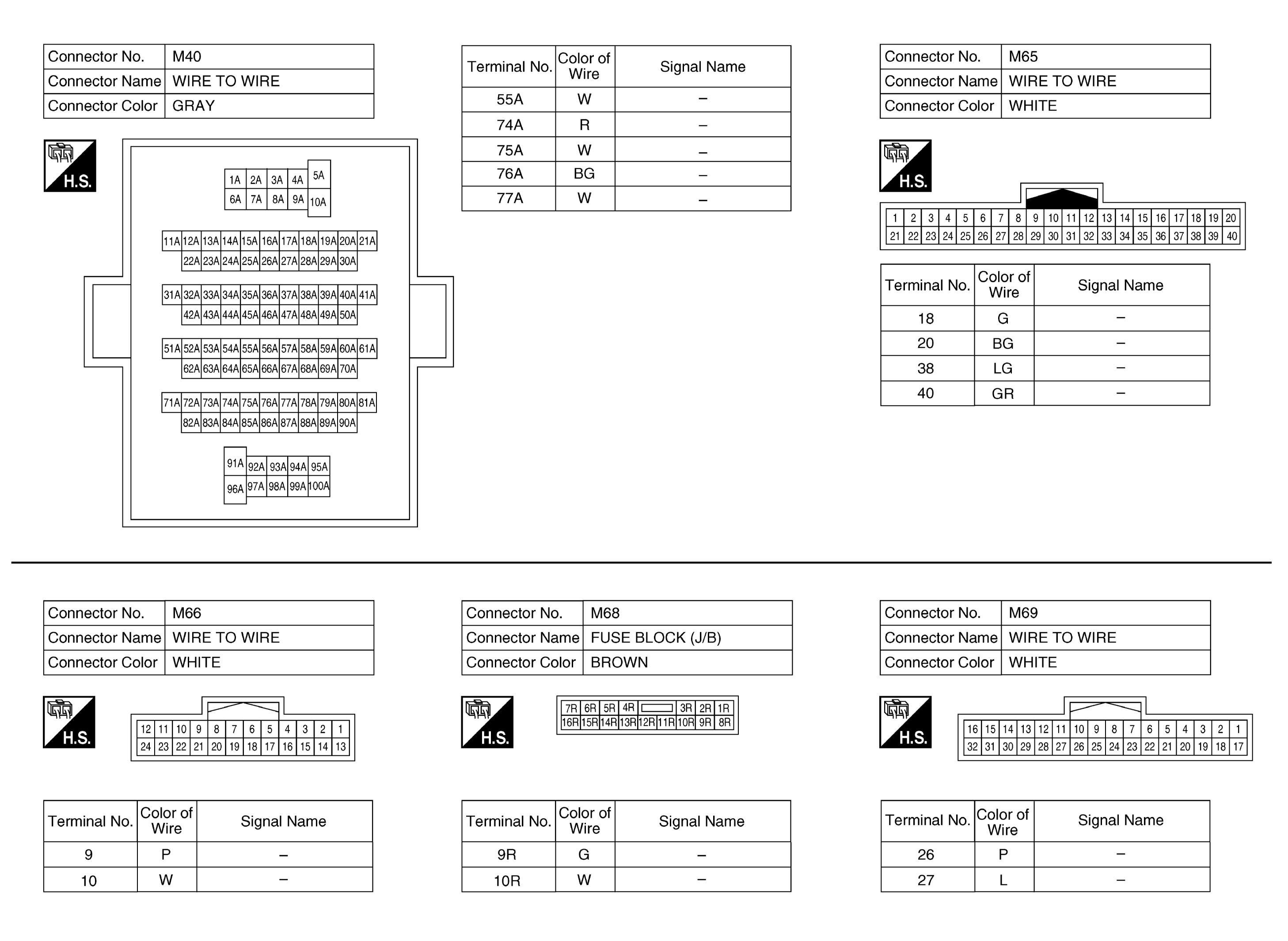

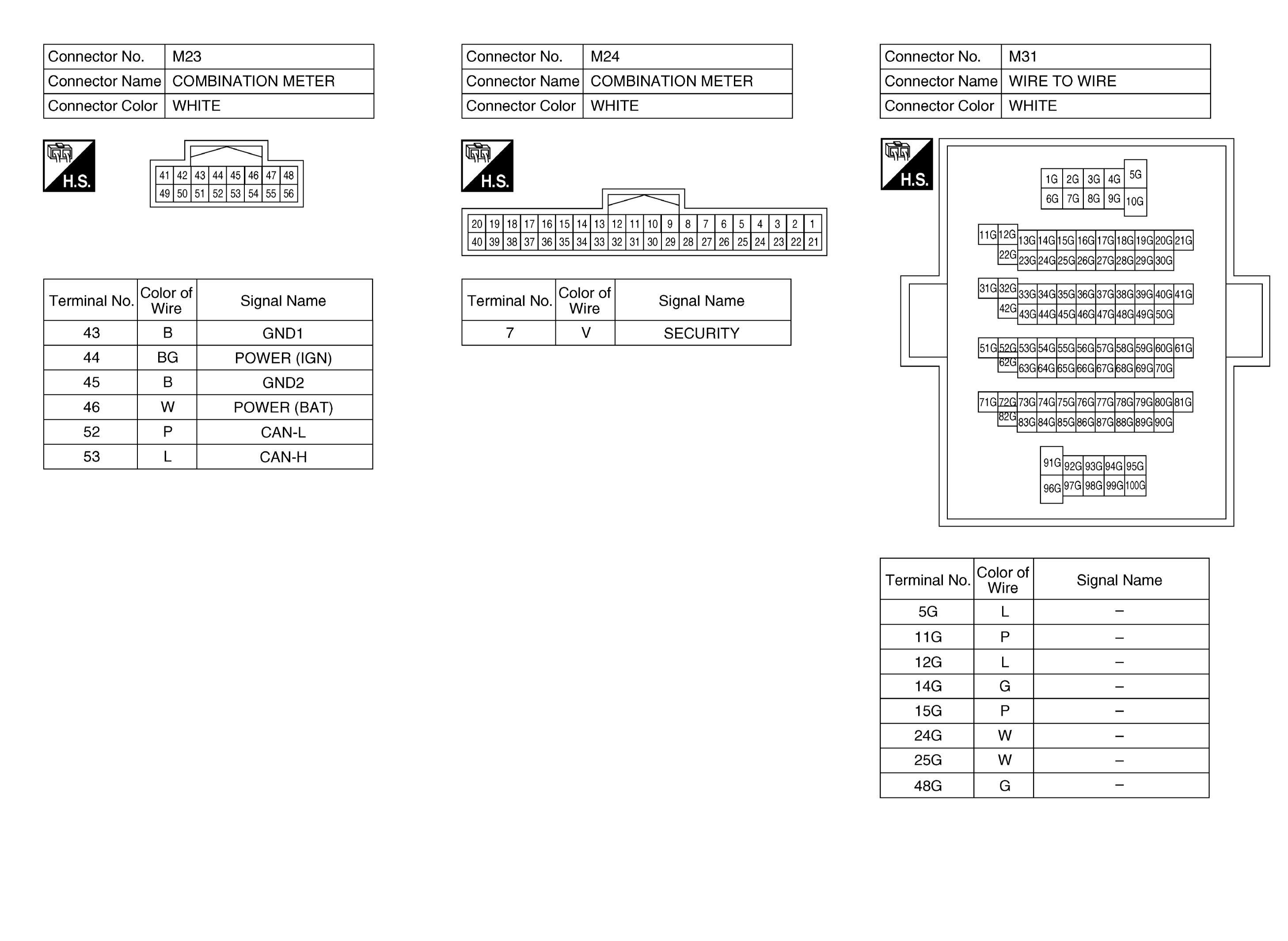

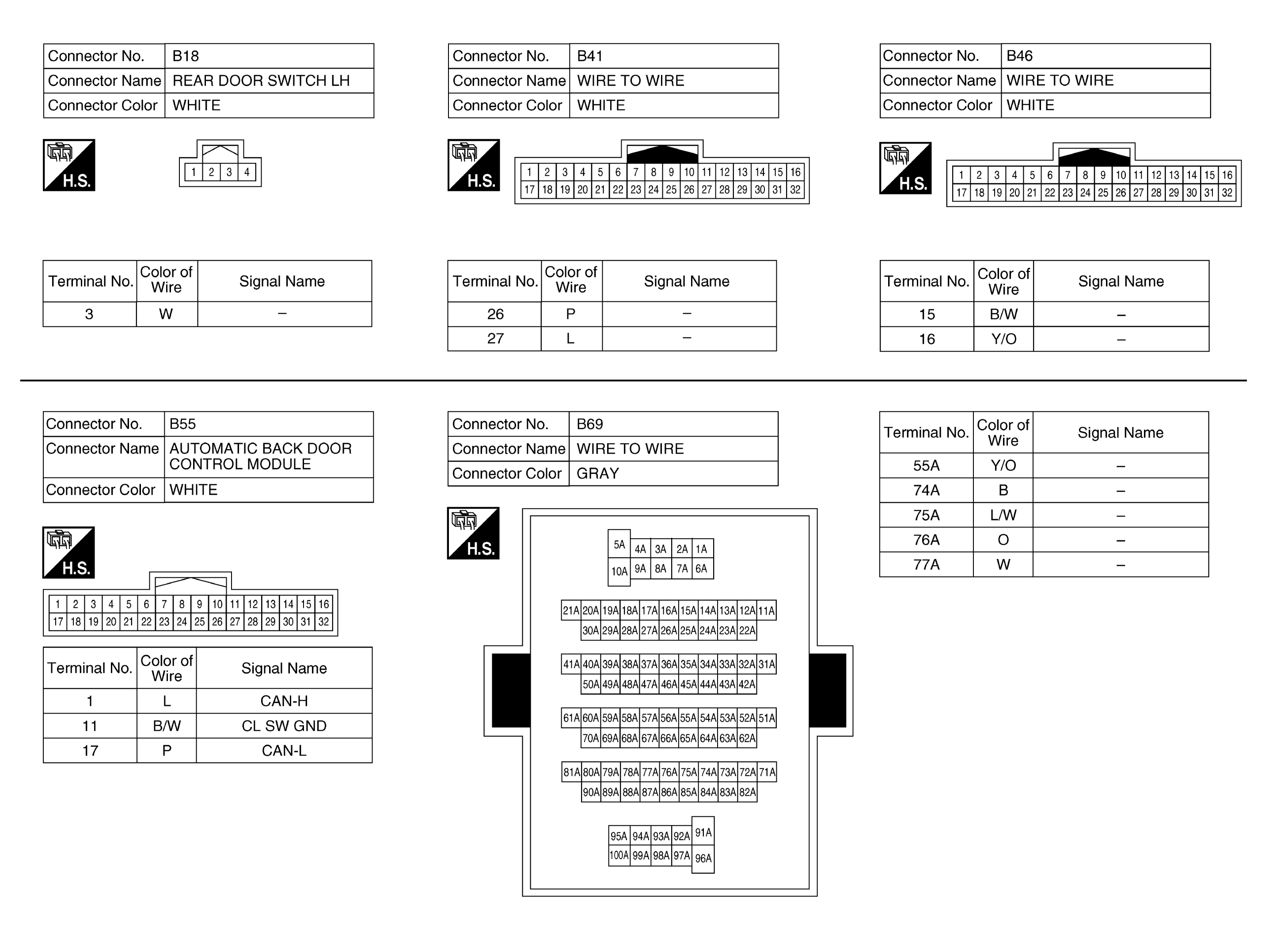

Fig 6: Intelligent Key System/Engine Start Function Connector End Views (1 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

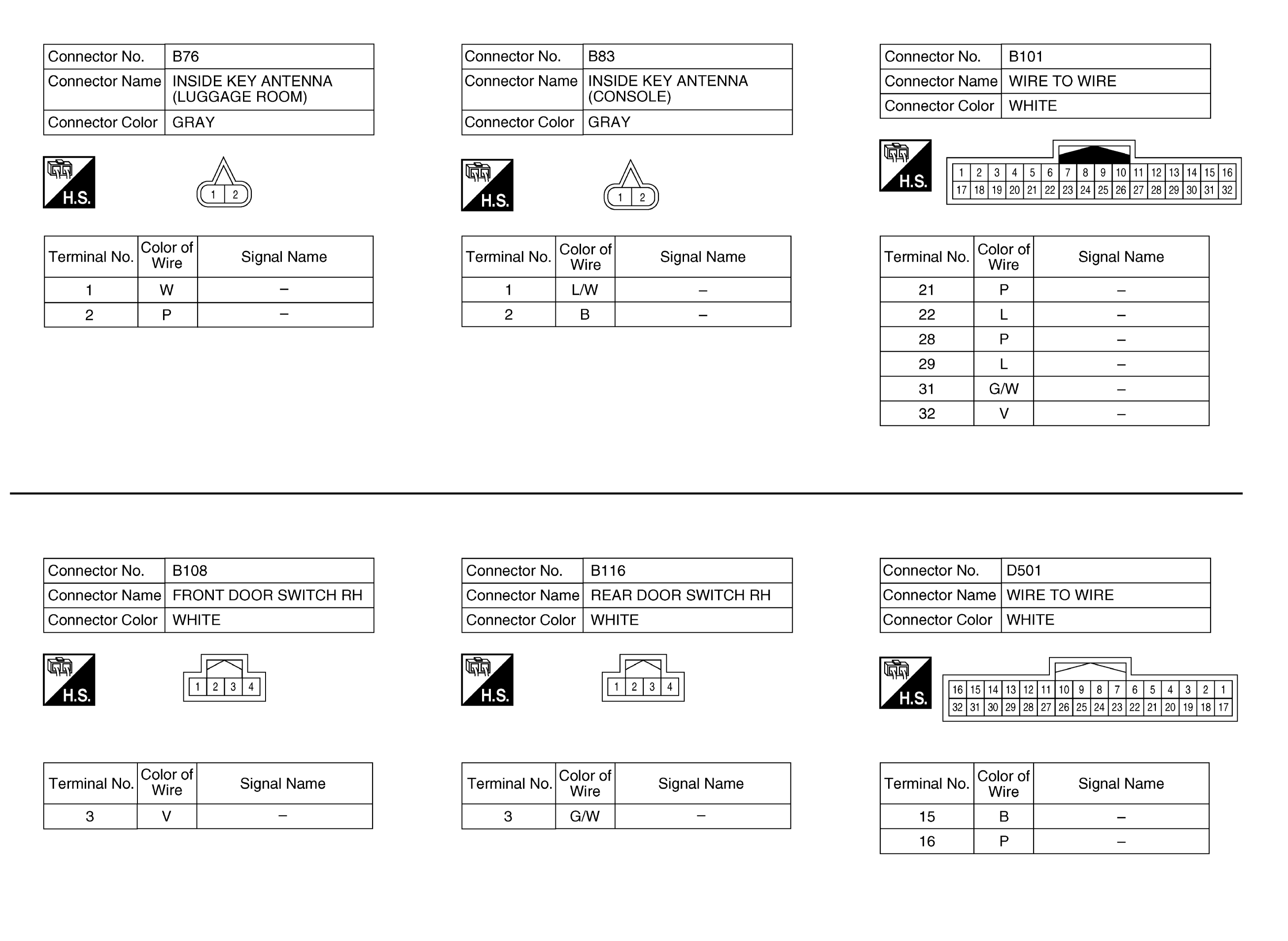

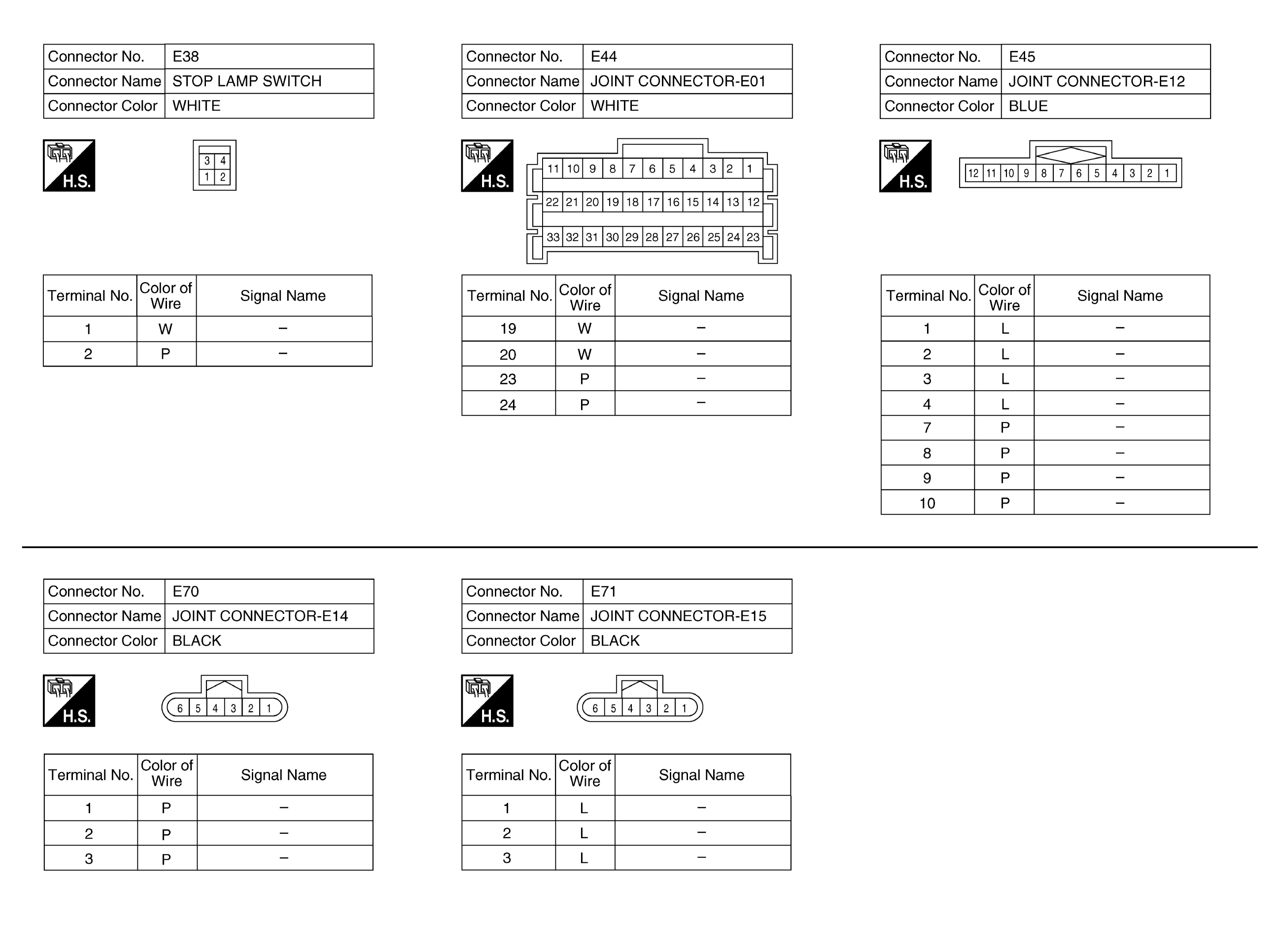

Fig 7: Intelligent Key System/Engine Start Function Connector End Views (2 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

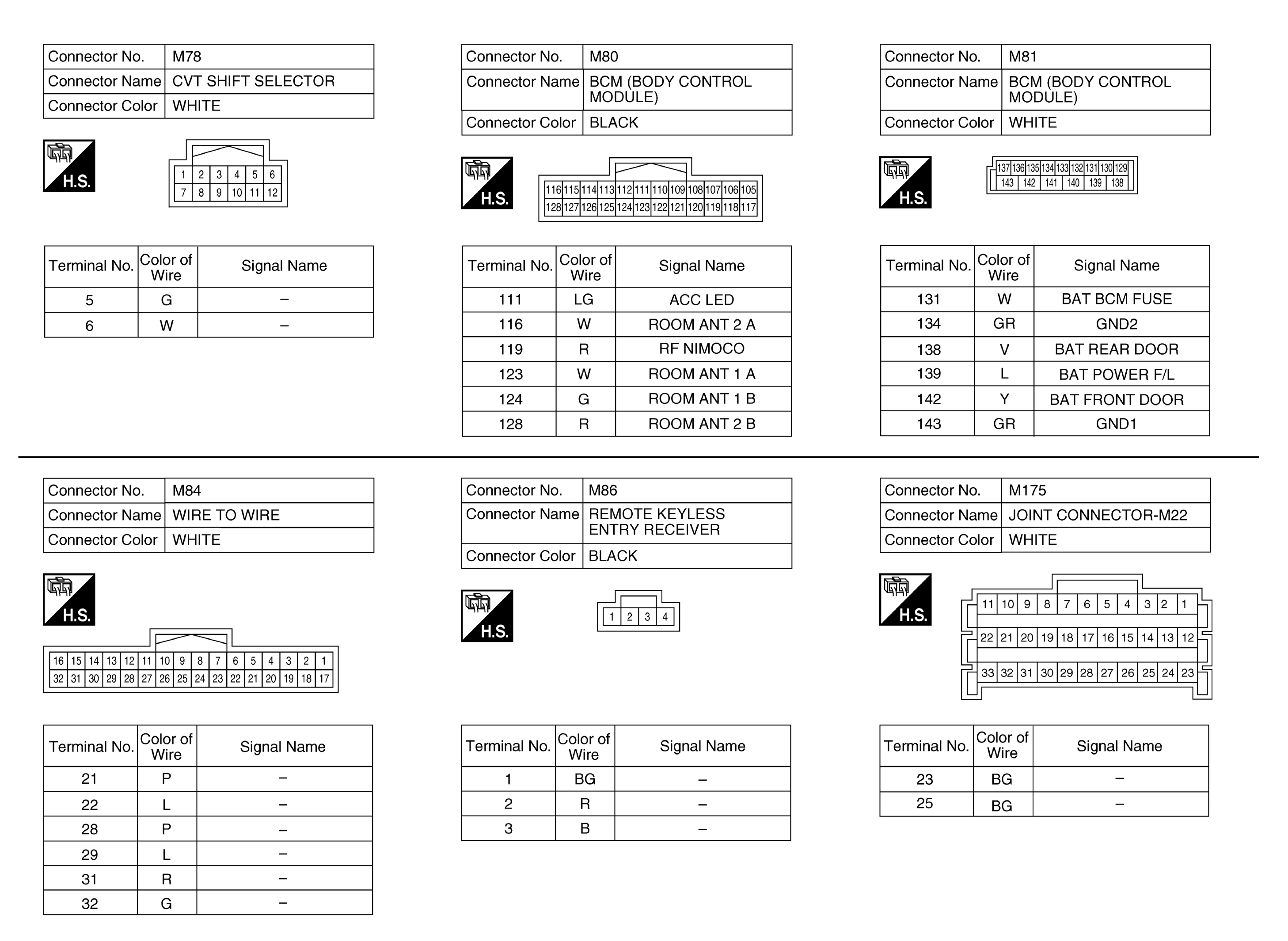

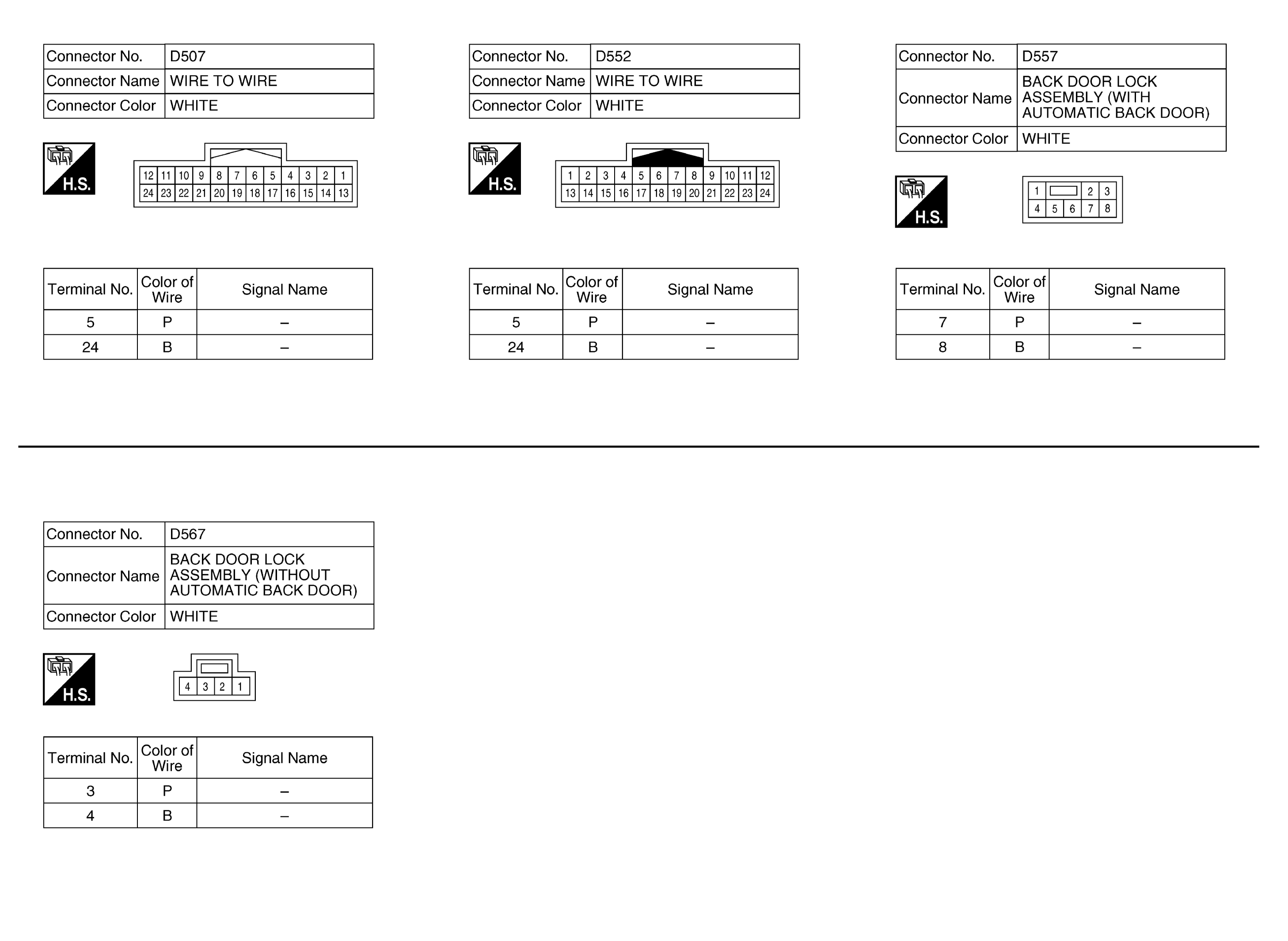

Fig 8: Intelligent Key System/Engine Start Function Connector End Views (3 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

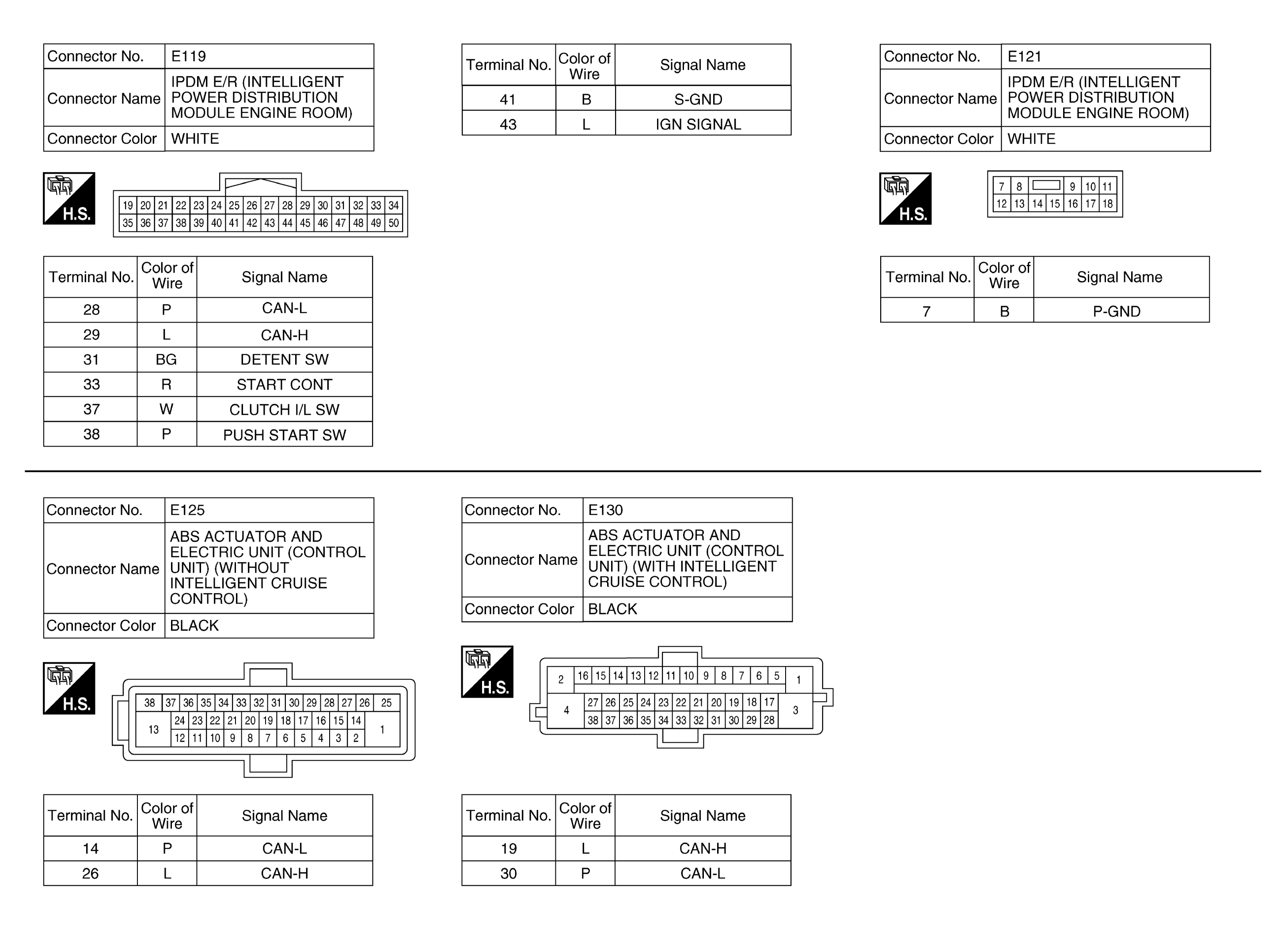

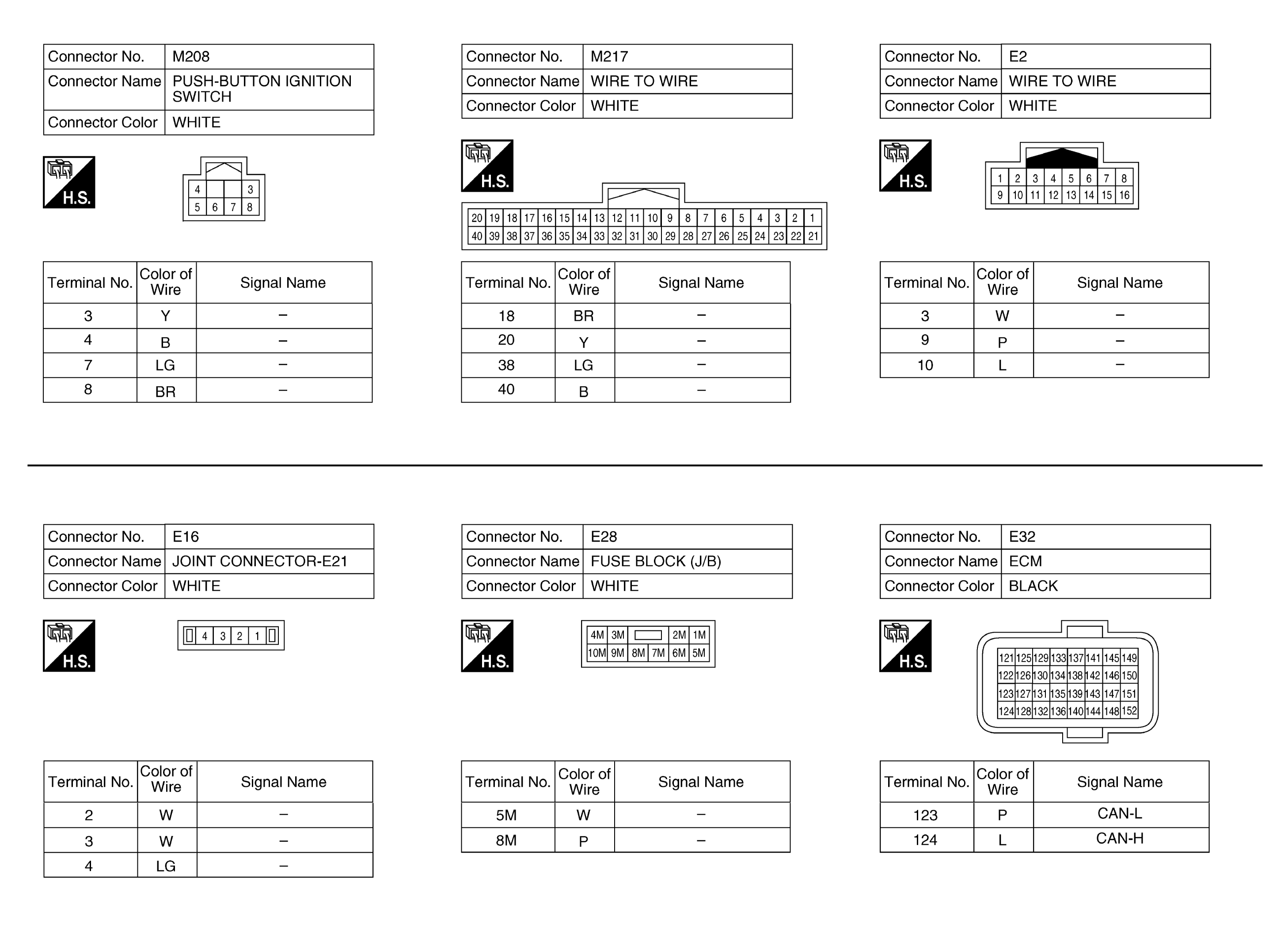

Fig 9: Intelligent Key System/Engine Start Function Connector End Views (4 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

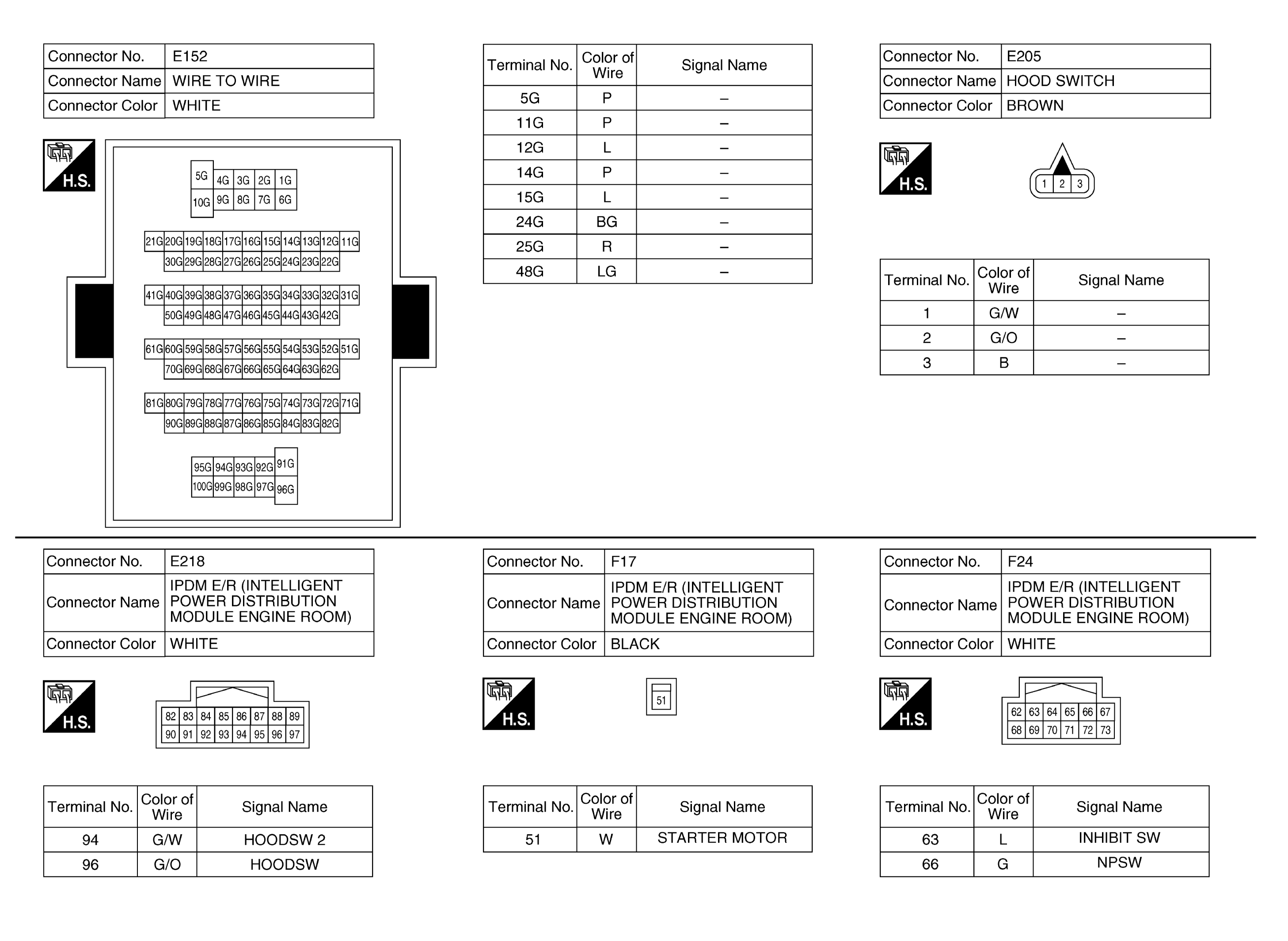

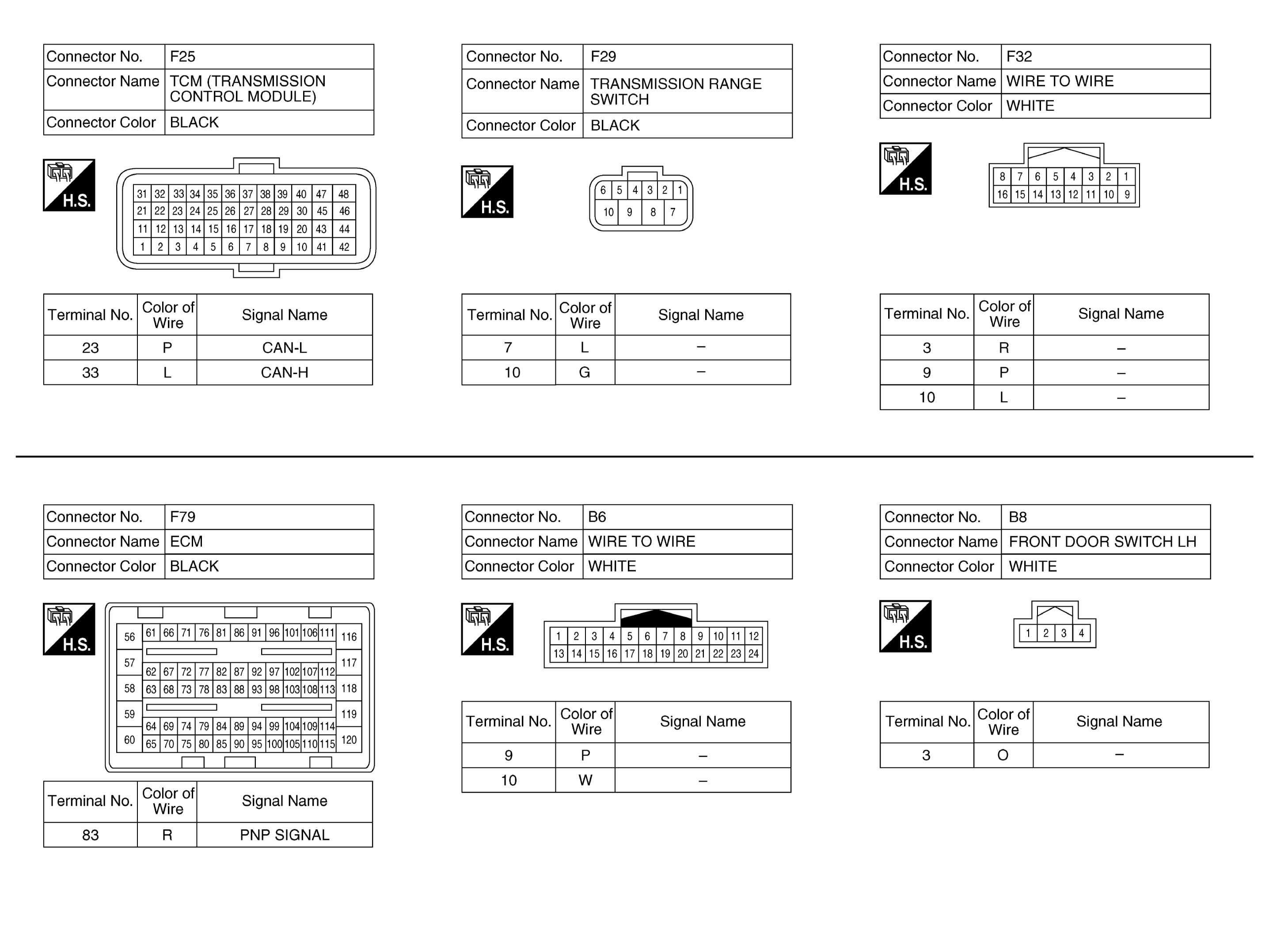

Fig 10: Intelligent Key System/Engine Start Function Connector End Views (5 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

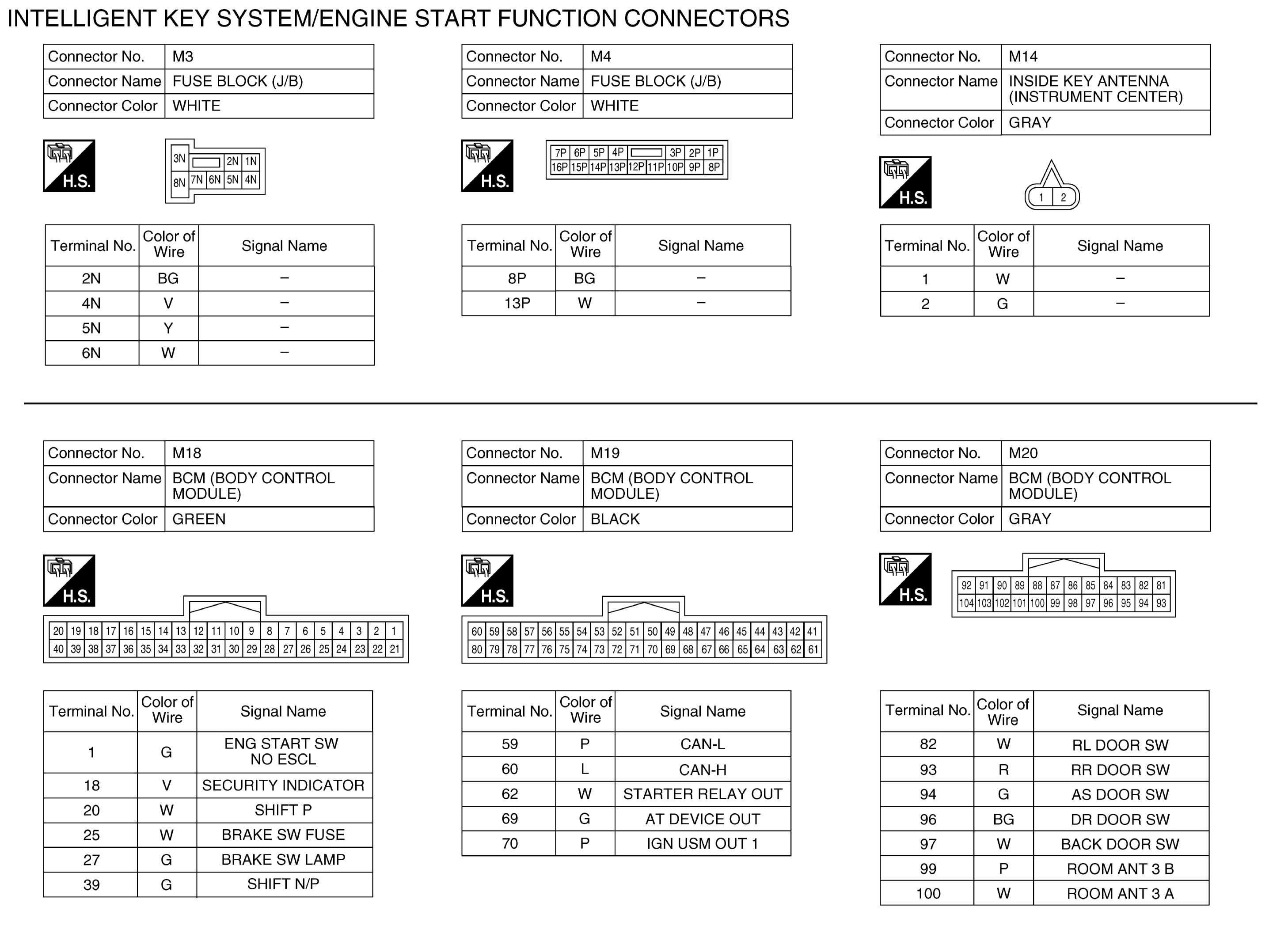

Fig 11: Intelligent Key System/Engine Start Function Connector End Views (6 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Intelligent Key System/Engine Start Function Connector End Views (7 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Intelligent Key System/Engine Start Function Connector End Views (8 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Intelligent Key System/Engine Start Function Connector End Views (9 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Intelligent Key System/Engine Start Function Connector End Views (10 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Intelligent Key System/Engine Start Function Connector End Views (11 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Intelligent Key System/Engine Start Function Connector End Views (12 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.
