Component Parts Location
WARNING: This page is about a different car, the 2015 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

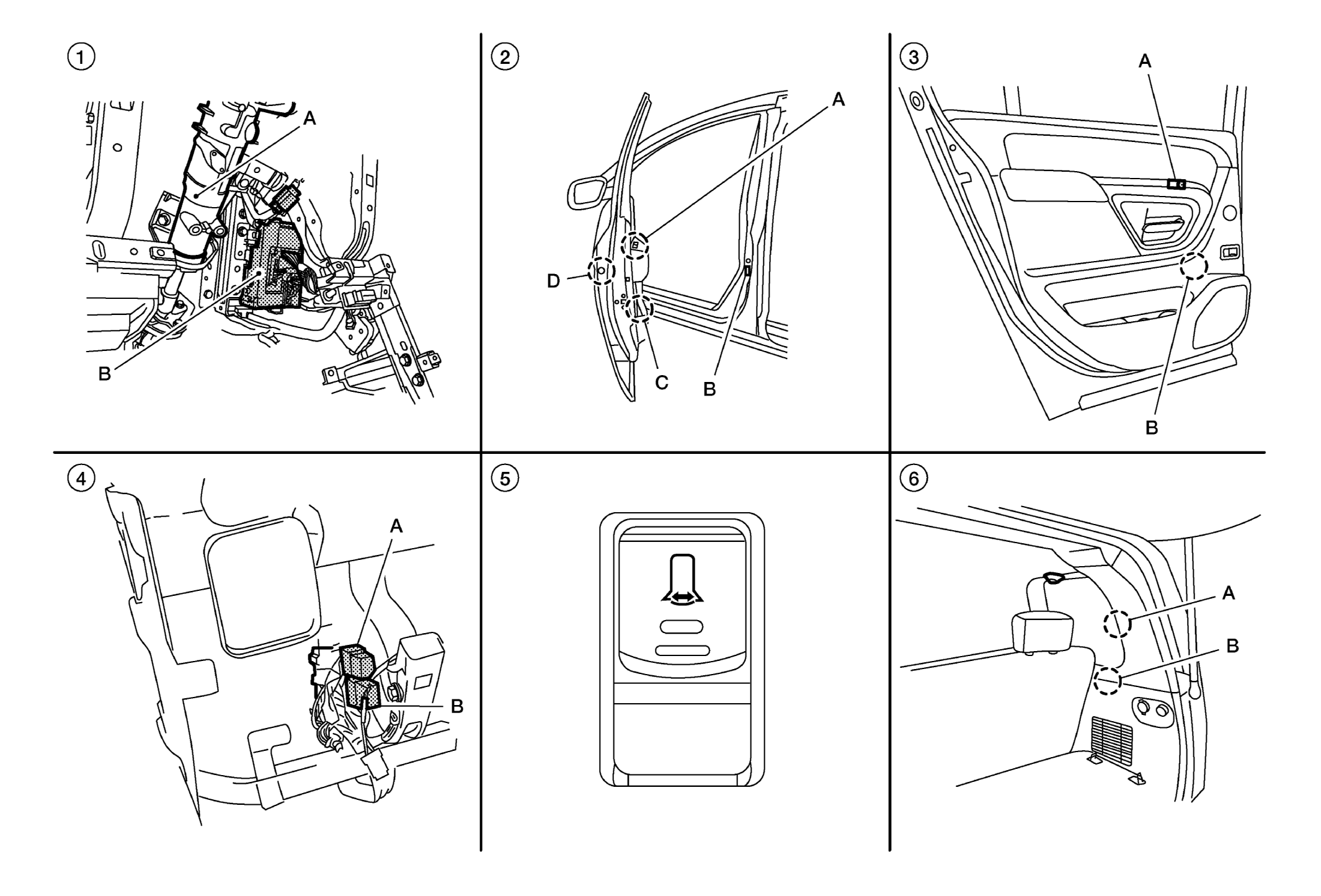

| 1. | A. Steering Column B. BCM M18, M19, M20 (view with instrument panel removed) |
2. | A. Main Power Window And Door Lock/Unlock Switch D7, D8 Power Window And Door Lock/Unlock Switch RH D105 B. Front Door Switch LH B8, RH B108 C. Front Power Window Motor LH D9, RH D104 D. Front Door Lock Assembly LH (Key Cylinder Switch) D14 |
3. | A. Rear Power Window Switch LH D203, RH D303 B. Rear Power Window Motor LH D204, RH D304 |
| 4. | A. Rear Power Vent Window Relay (CLOSE) M89 (If Equipped) B. Rear Power Vent Window Relay (OPEN) M87 (If Equipped) |
5. | Rear Power Vent Window Switch M95 (If Equipped) | 6. | A. Rear Power Vent Window Motor LH B52, RH B150 (If Equipped) B. Condenser-3 B119 (If Equipped) Condenser-4 B120 (If Equipped) |
