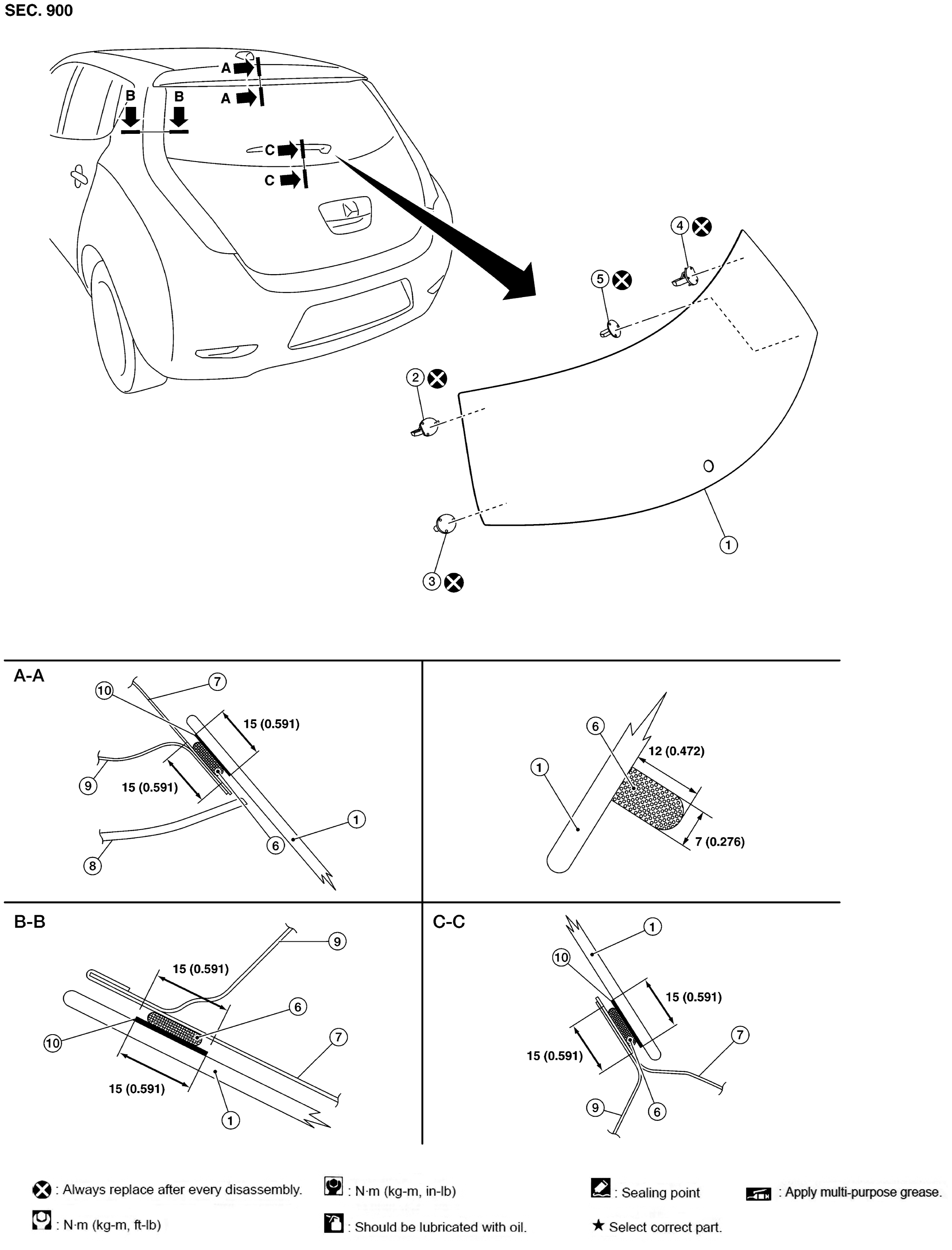

Exploded View With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Unit: mm (in)
| 1. |
Back Door Window Glass |
2. |
Glass Holder (Upper LH) |
3. |
Glass Holder (Lower LH) |
| 4. |
Glass Holder (Upper RH) |
5. |
Glass Holder (Lower RH) |
6. |
Adhesive |
| 7. |
Back Door Outer |
8. |
Back Door Finisher |
9. |
Back Door Inner |
| 10. |
Glass Primer |
|
|
|
|
