Component Inspection (Overdrive Control Switch)

CHECK OVERDRIVE CONTROL SWITCH

Check continuity between wires of selector lever knob (1).

Condition	Continuity
Overdrive control switch is depressed	Existed
Overdrive control switch is released	Not existed

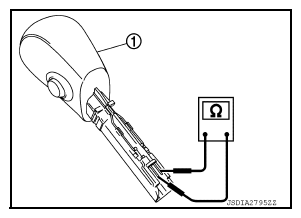

Fig 1: Checking Continuity Between Wires Of Selector Lever Knob

Courtesy of NISSAN NORTH AMERICA, INC.

Is the inspection result normal?

YES: INSPECTION END

NO: Replace selector lever knob. Refer to "REMOVAL AND INSTALLATION ".
