AWD: Exploded View

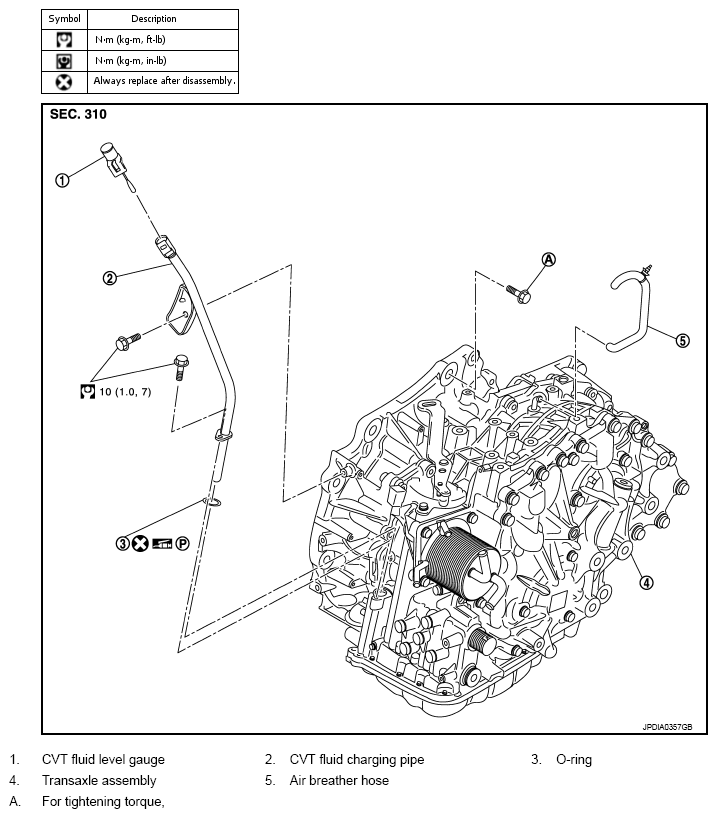

Fig 1: Transaxle Assembly (AWD) With Torque Specifications

G09611437

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
