Nissan-Datsun
>>
2014
>>
Rogue Select AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission (CVT)
>>
System Description
>>
Shift Control System
>>
System Diagram
System Diagram

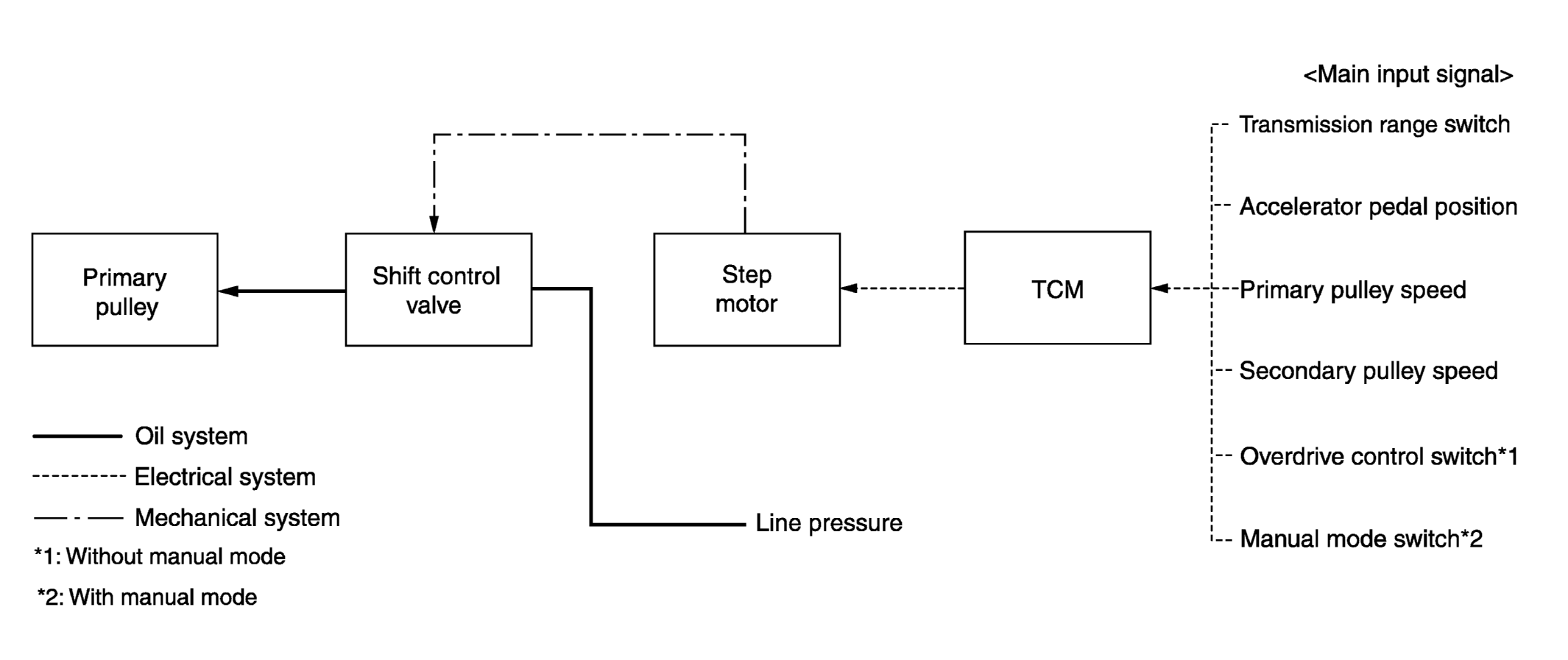

Fig 1: Shift Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
The gear ratio is set for each position separately.
Courtesy of NISSAN NORTH AMERICA, INC.
