Nissan-Datsun
>>
2014
>>
Rogue Select AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission (CVT)
>>
System Description
>>
CVT System
>>
System Diagram
System Diagram

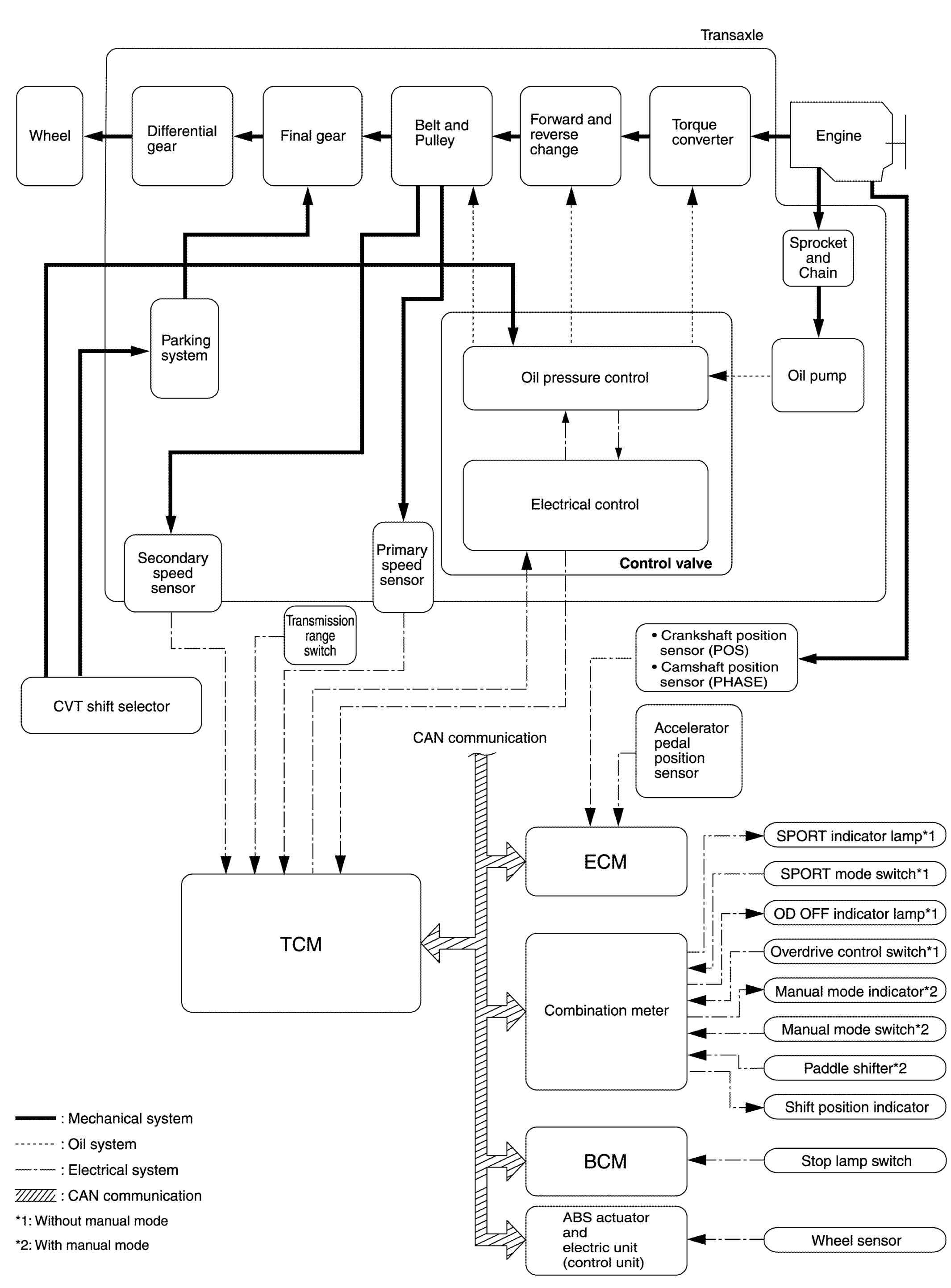

Fig 1: CVT - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
