Home
>>
Nissan-Datsun
>>
2014
>>
Rogue Select AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission (CVT)
>>
Removal And Installation
>>
Secondary Speed Sensor
>>
Exploded View
Exploded View

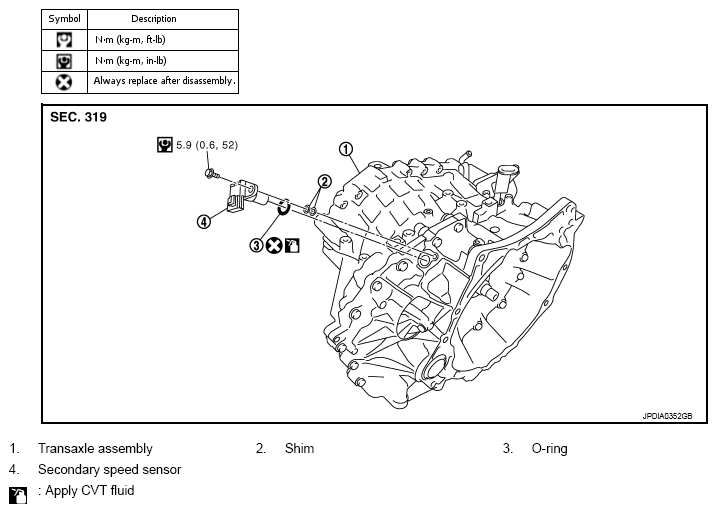

Fig 1: Secondary Speed Sensor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols not described above.
