Nissan-Datsun
>>
2014
>>
Rogue Select AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission (CVT)
>>
Removal And Installation
>>
Control Valve
>>
Exploded View
>>
Component Parts Location
Component Parts Location

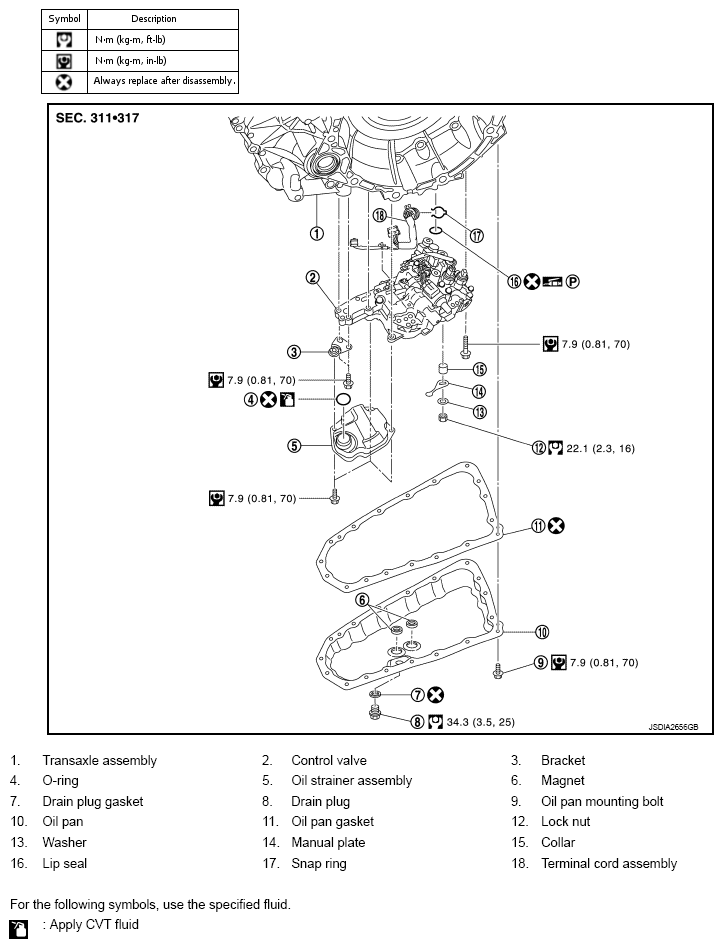

Fig 1: Control Valve With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
