Exploded View

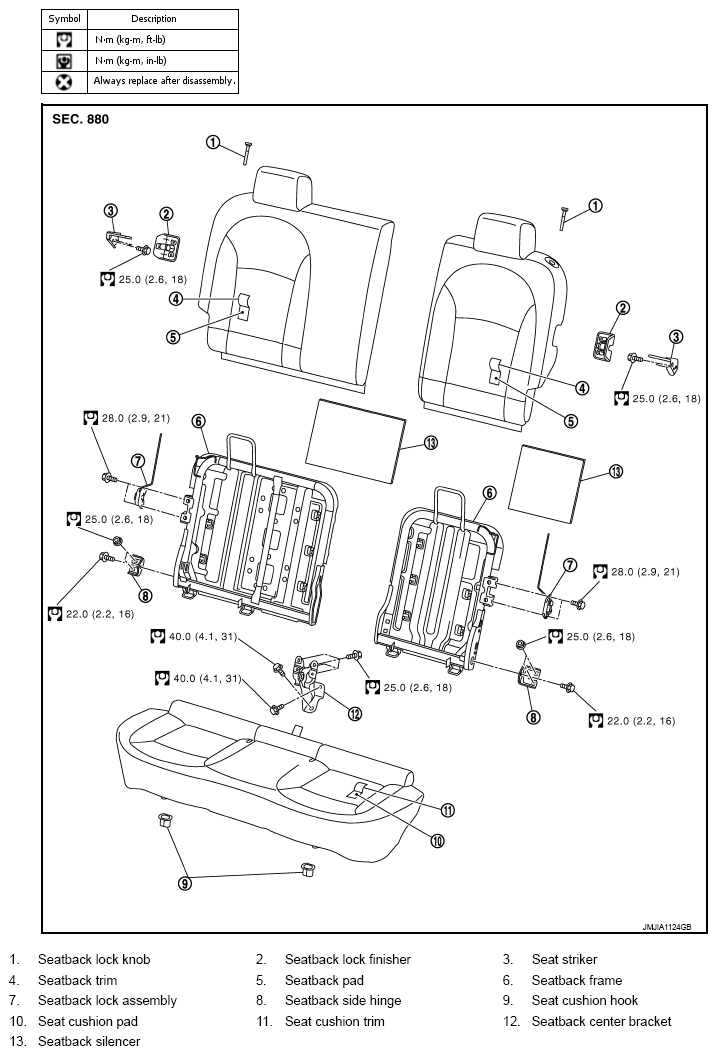

Fig 1: Rear Seat With Torque Specifications

G09612474

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
